992519 (Pro-Turn Mach One) - Gravely Pro-Turn 60" Zero-Turn Mower, Kawasaki FX EFI (SN: 010000 & Above) Deck Drive Idlers - Mach One Parts Diagram

Pro-Turn 60" Zero-Turn Mower, Kawasaki FX EFI

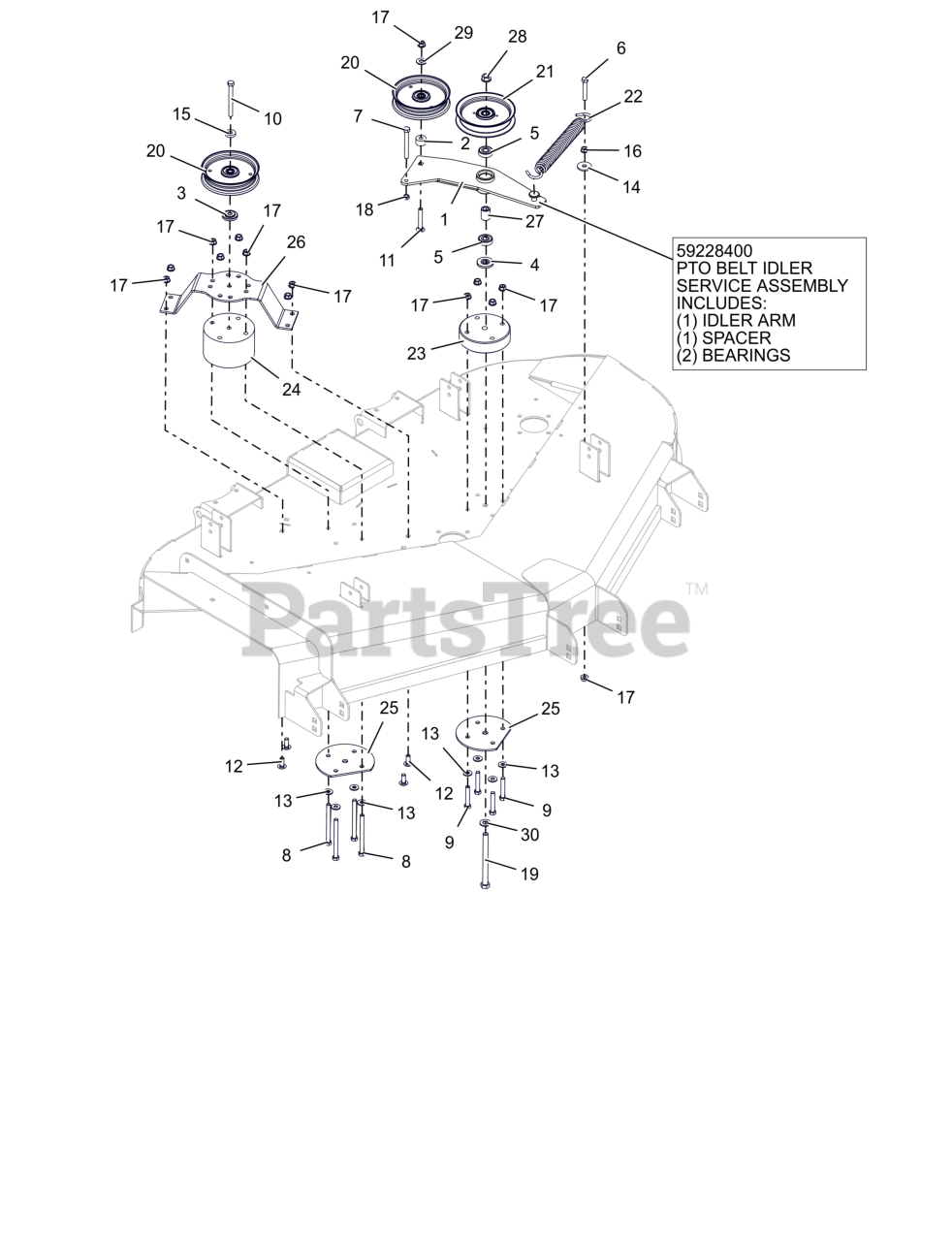

Deck Drive Idlers - Mach One Parts Diagram

  • Title

1

Gravely 05289700

WLDMT, IDLER ARM
(Superseded to 59228400)

$103.99

$

Usually ships in 4-12 days

0

1

Gravely 59228400

PTO, IDLER ARM, ASSY

Note: Component Service Assembly

$103.99

$

Usually ships in 4-12 days

0

2

Gravely 03035100

SPACER .390X1.000X.562

$9.49

$

In Stock, only 1 left!

0

3

Gravely 04530500

RETAINER, SHEAVE

$7.99

$

In Stock, Qty 20+

0

4

Gravely 04714600

SPACER, IDLER ARM

$5.99

$

In Stock, Qty 20+

0

5

Gravely 05408000

BRG-BALL .500X1.38X.437

$5.99

$

In Stock, Qty 20+

0

6

Gravely 05901640

BLT,HEX .38-16X2.25 G5 ZCC

$3.99

$

In Stock, Qty 20+

0

7

Gravely 05901817

BLT, HEX .38-16X3.25 G5 ZCC

$3.99

$

In Stock, Qty 20+

0

8

Gravely 05902036

BLT, HEX 0.375-16X4.5 GR8 ZCC

$3.49

$

Usually ships in 4-12 days

0

9

Gravely 05902037

BLT, HEX 0.375-16X2.25 GR8 ZCC

$1.49

$

Usually ships in 4-12 days

0

10

Gravely 05902039

BLT, HEX 0.375-16X3.75 GR8 ZCC

$3.49

$

Usually ships in 4-12 days

0

11

Gravely 06200234

BLT,RHSN .38-16X2.50 G5 ZCC

$3.99

$

In Stock, Qty 20+

0

12

Gravely 06200235

BLT,RHSSN .38-16X1.00 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

13

Gravely 06401023

WSHR,FLT .375X.875X.083 ZCC

$1.49

$

In Stock, Qty 20+

0

14

Gravely 06401121

WSHR,FLT .406X1.375X.135 ZCC

$5.99

$

In Stock, only 1 left!

0

15

Gravely 06401125

WSHR, FLT .390X1.00X.250 ZCC

$2.99

$

In Stock, only 2 left!

0

16

Gravely 06500735

NUT, SPNLK-FLG .38-16 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

17

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

18

Gravely 06500910

NUT-JAM .375-16 G2 ZCC

$0.99

$

In Stock, Qty 20+

0

19

Gravely 05901924

BLT, HEX .50-13X6.00S G5 ZCC

$6.99

$

Usually ships in 4-12 days

0

20

Gravely 07351100

PULLEY, FLAT IDLER .500 X .375 W/BRG

$38.99

$

Usually ships in 4-12 days

0

21

Gravely 07352600

IDLER- FLAT - 5.000" X .750"

$45.99

$

Usually ships in 4-12 days

0

22

Gravely 08300708

SPRING, EXTENSION

$19.99

$

In Stock, Qty 20+

0

23

Gravely 09162500

PEDESTAL, IDLER STAND OFF

$105.99

$

Usually ships in 4-12 days

0

24

Gravely 09162600

PEDESTAL, IDLER STAND OFF

$159.99

$

Usually ships in 4-12 days

0

25

Gravely 09162753

PLATE- REINFORCING - RED

$17.99

$

Usually ships in 4-12 days

0

26

Gravely 09164553

BRACE, IDLER SUPPORT

$51.99

$

Usually ships in 4-12 days

0

27

Gravely 09357700

SPACER .510 X .867 X 1.1485

$4.99

$

In Stock, Qty 7

0

28

Gravely 06500902

NUT-LK-CTR-FLG .500-13 GG ZCC

$1.49

$

In Stock, Qty 20+

0

29

Gravely 06401008

WSHR,FLT .438X1.00X.083 ZCC

$1.49

$

In Stock, Qty 20+

0

30

Gravely 06401015

WSHR,FLT .531X1.062X.095 ZCC

$0.99

$

In Stock, Qty 20+

0
