992515 (Pro-Turn Mach One) - Gravely Pro-Turn 60" Zero-Turn Mower, Kawasaki FX (SN: 000400 - 009999) Deck, Spindles, Belts, and Blades - Mach One Parts Diagram

Pro-Turn 60" Zero-Turn Mower, Kawasaki FX

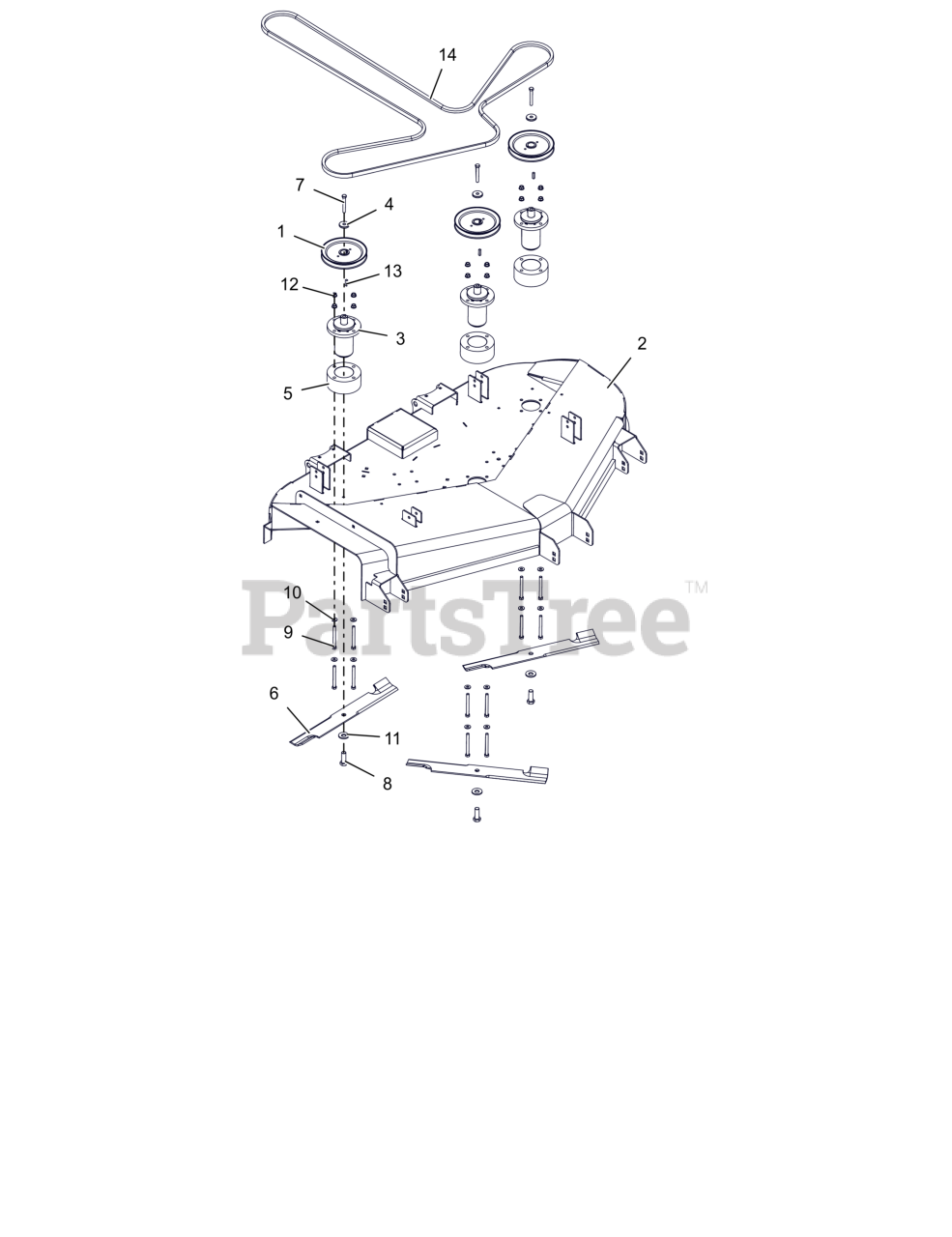

Deck, Spindles, Belts, and Blades - Mach One Parts Diagram

  • Title

1

Gravely 07328967

PULLEY, V-1" ID X 6.75" OD
(Superseded to 59211600)

$82.99

$

In Stock, Qty 8

0

2

Gravely 09460253

WLDMT- PT300/500 TUNNEL DECK

$995.99

$

Usually ships in 4-12 days

0

3

Gravely 58810800

ASM, MAINT FREE ALUM SPINDLE

Note: Replacement Spindles Will Need Pressed In Hardware Removed To Fit Up With Existing Hardware.

$239.99

$

In Stock, Qty 20+

0

4

Gravely 04530500

RETAINER, SHEAVE

$7.99

$

In Stock, Qty 20+

0

5

Gravely 05289600

SPCR, SPINDLE

$110.99

$

Usually ships in 4-12 days

0

6

Gravely 05290000

BLADE, MOWER 20.940 X 1.00 LIFT

$35.99

$

In Stock, Qty 20+

0

7

Gravely 05901813

BLT, HEX .38-16X2.75 G8 ZCC

$1.49

$

In Stock, Qty 20+

0

8

Gravely 05901822

BLT, HEX .62-18X1.75 G8 ZCC

$3.49

$

In Stock, Qty 20+

0

9

Gravely 05902039

BLT, HEX 0.375-16X3.75 GR8 ZCC

$3.49

$

Usually ships in 4-12 days

0

10

Gravely 06401023

WSHR,FLT .375X.875X.083 ZCC

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06445700

WSHR-BLVL .669X1.535X.138

$4.99

$

In Stock, only 3 left!

0

12

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

13

Gravely 06611200

KEY, SQ .25X.25X1.00 RC 40-50

$2.99

$

In Stock, Qty 15

0

14

Gravely 07200907

V-BELT, HB SECTION

$142.99

$

Usually ships in 4-12 days

0
