992515 (Pro-Turn Mach One) - Gravely Pro-Turn 60" Zero-Turn Mower, Kawasaki FX (SN: 000400 - 009999) Control Panel - RH - Kohler ZT740 and Kawasaki FX921V Parts Diagram

Pro-Turn 60" Zero-Turn Mower, Kawasaki FX

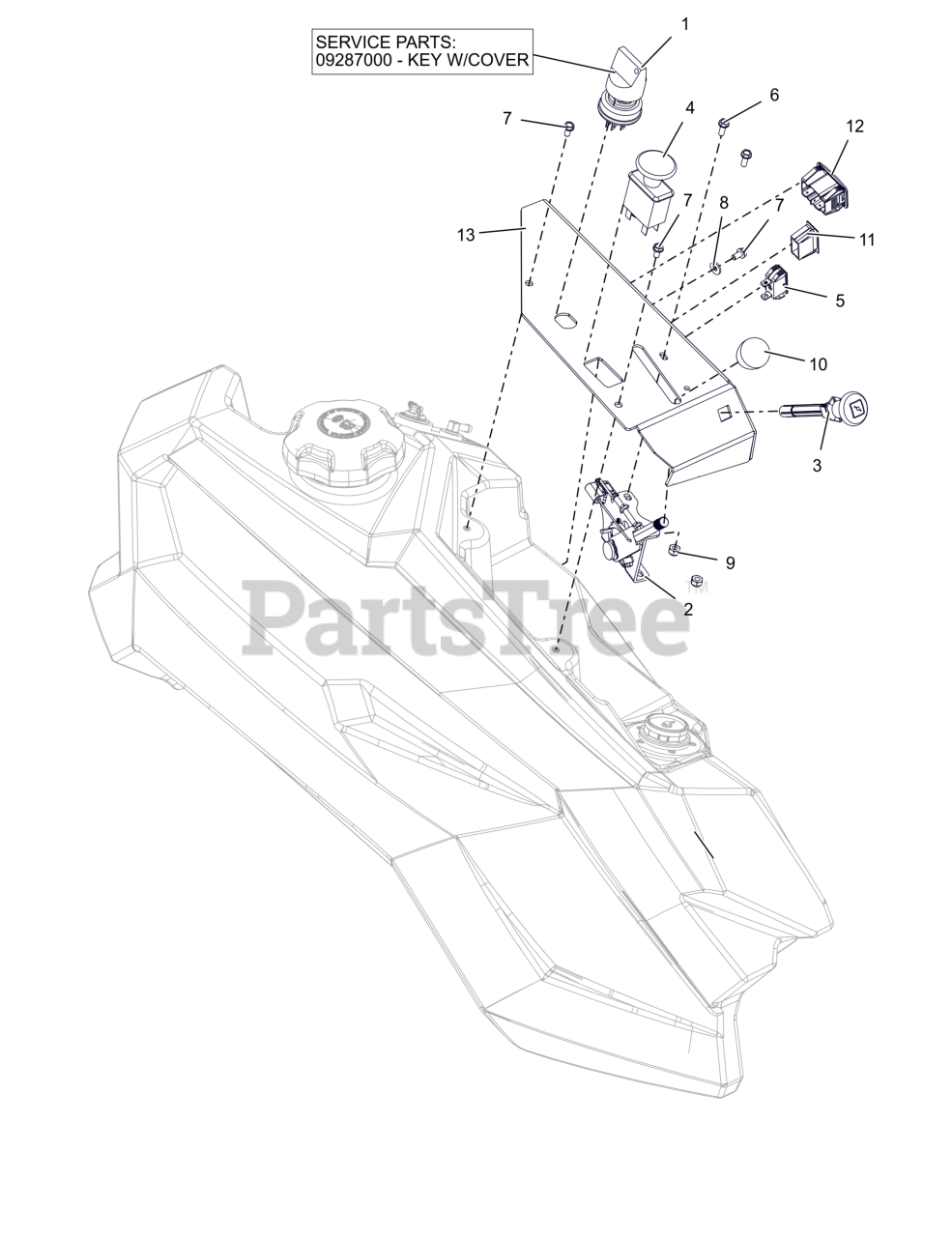

Control Panel - RH - Kohler ZT740 and Kawasaki FX921V Parts Diagram

  • Title

1

Gravely 04331600

SWITCH, IGNITION

$45.99

$

In Stock, Qty 20+

0

1

Gravely 09287000

KEY, W/ SHIELD

Note: Service Part Component

$14.99

$

In Stock, Qty 20+

0

2

Gravely 06900630

CABLE, PRO-CTRL 53.00"

$48.99

$

Usually ships in 4-12 days

0

3

Gravely 06900729

CABLE, CHOKE (SNAP IN)

$28.99

$

Usually ships in 4-12 days

0

4

Gravely 01545600

SWITCH, CLUTCH

$25.99

$

In Stock, Qty 20+

0

5

Gravely 05128700

LIGHT, INDICATOR (RED)

$6.99

$

In Stock, only 1 left!

0

6

Gravely 05901825

BLT, HWH #10-24X.50 ZCC

$0.99

$

In Stock, Qty 20+

0

7

Gravely 06100211

SCR-MCH 10-24X.38 HWHSTAINLESS

$2.99

$

In Stock, Qty 11

0

8

Gravely 06401029

WSHR-FL-STL .196X.50X.06 ZC120

$

$

Not available

9

Gravely 06500915

NUT-LK-NYL #10-24 G2 ZCC

$0.99

$

In Stock, Qty 20+

0

10

Gravely 07500132

KNOB-CONTROL-BLACK .38-16X.50

$11.99

$

In Stock, Qty 9

0

11

Gravely 09003300

SWITCH,BLANK

$4.99

$

Usually ships in 4-12 days

0

12

Gravely 09497400

HOUR METER

$23.99

$

In Stock, only 2 left!

0

13

Gravely 09677653

PANEL- RH CONTROL (RED)

$

$

Not available
