992513 (Pro-Turn 552) - Gravely Pro-Turn 52" Zero-Turn Mower, Kohler ZT (SN: 000400 & Above) Kohler - ZT740 Parts Diagram

Pro-Turn 52" Zero-Turn Mower, Kohler ZT

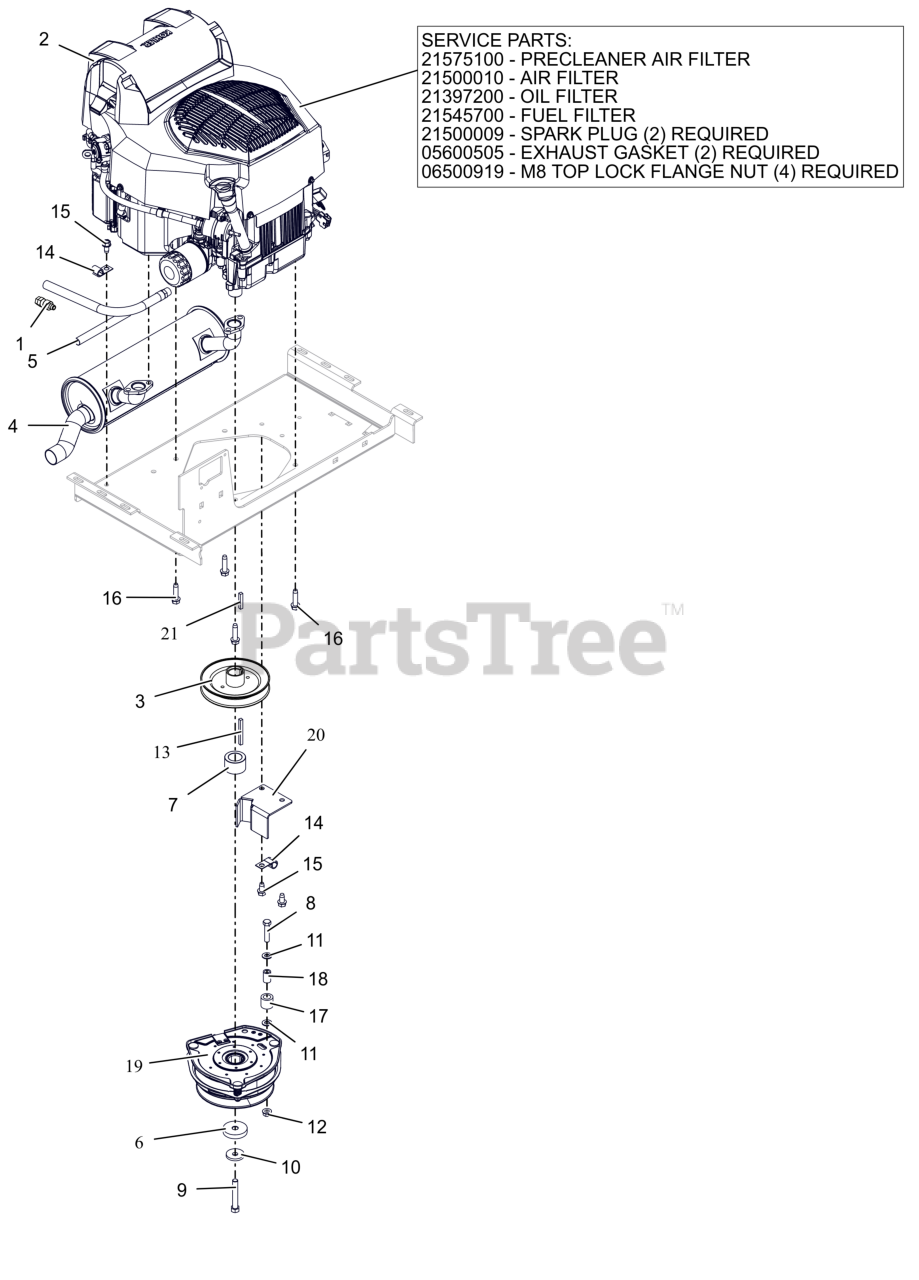

Kohler - ZT740 Parts Diagram

  • Title

1

Gravely 05155100

HOSE, OIL DRAIN

$20.99

$

In Stock, only 1 left!

0

2

Gravely 08201030

ENGINE, KOHLER ZT740 CONFIDANT

$

$

Not available

2

Gravely 21575100

PRECLEANER AIR FILTER

Note: Component Service Part

$

$

Not available

2

Gravely 21500010

AIR CLEANER, KOHLER CONFIDANT

Note: Component Service Part

$28.99

$

In Stock, only 1 left!

0

2

Gravely 21397200

FILTER, OIL - KOH CV20
(Superseded to 20715100)

Note: Component Service Part

$18.99

$

In Stock, only 4 left!

0

2

Gravely 21545700

FILTER-FUEL KOHLER COURAGE PRO
(Superseded to 21539500)

Note: Component Service Part

$12.99

$

In Stock, Qty 20+

0

2

Gravely 21500009

PLUG, SPARK KOHLER

Note: Component Service Part

$10.99

$

Usually ships in 4-12 days

0

2

Gravely 05600505

GASKET, MUFFLER KOHLER TWIN

Note: Component Service Part

$9.99

$

Usually ships in 4-12 days

0

2

Gravely 06500919

NUT-LK-TOP-FLG M8 ZCC

Note: Component Service Part

$2.49

$

In Stock, Qty 18

0

3

Gravely 09374300

WLDMT, TRANSAXLE DRIVE PULLEY

$85.99

$

Usually ships in 4-12 days

0

4

Gravely 04885100

MUFFLER, ZT730/ZT740

$148.99

$

Usually ships in 4-12 days

0

5

Gravely 05116600

SLEEVE, THERMAL 6"

$

$

Not available

6

Gravely 05501222

SPACER, .450X2.00X.396

$11.99

$

Usually ships in 4-12 days

0

7

Gravely 05501427

SPCR, 1.125 x 1.750 x 1.147

$

$

Not available

8

Gravely 05901809

BLT, HEX .38-16X1.75 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

9

Gravely 05902013

BLT, HEX 0.4375-20X2.75 G8 ZCC NT

$4.49

$

In Stock, Qty 11

0

10

Gravely 06400936

WASHER, 7/16" SPRING DISK

$11.99

$

In Stock, only 1 left!

0

11

Gravely 06401013

WSHR,FLT .406X.812X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

12

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

13

Gravely 06602600

KEY-SQ .25 X 2.50 X .25 SAE

$5.99

$

In Stock, only 3 left!

0

14

Gravely 06916000

J-CLAMP

$2.49

$

Usually ships in 4-12 days

0

15

Gravely 07400129

SCR,TAP .375-16X.75 HWH TR ZCC

$1.49

$

In Stock, Qty 20+

0

16

Gravely 07400203

SCR-TAP .38-16X1.50 HWH ZCC

$3.99

$

Usually ships in 4-12 days

0

17

Gravely 07500007

BUMPER,RUBBER .62X1.0X.88 LG

$5.99

$

In Stock, only 2 left!

0

18

Gravely 08833400

BUSH.,S.391X.622X.950 ST

$5.99

$

In Stock, only 1 left!

0

19

Gravely 09153900

CLUTCH, OGURA GT3.5-AR04

$581.99

$

Usually ships in 4-12 days

0

20

Gravely 09377051

WLDMT, CLUTCH STOP (BLACK)

$

$

Not available

21

Gravely 06604300

KEY-SQ .25 X 1.50 X .25 SAE

$3.99

$

Usually ships in 4-12 days

0
