992512 (Pro-Turn 572) - Gravely Pro-Turn 72" Zero-Turn Mower, Kawasaki FX (SN: 000400 - 009999) Anti-Scalp Wheels and Deck Stops - 72" Parts Diagram

Pro-Turn 72" Zero-Turn Mower, Kawasaki FX

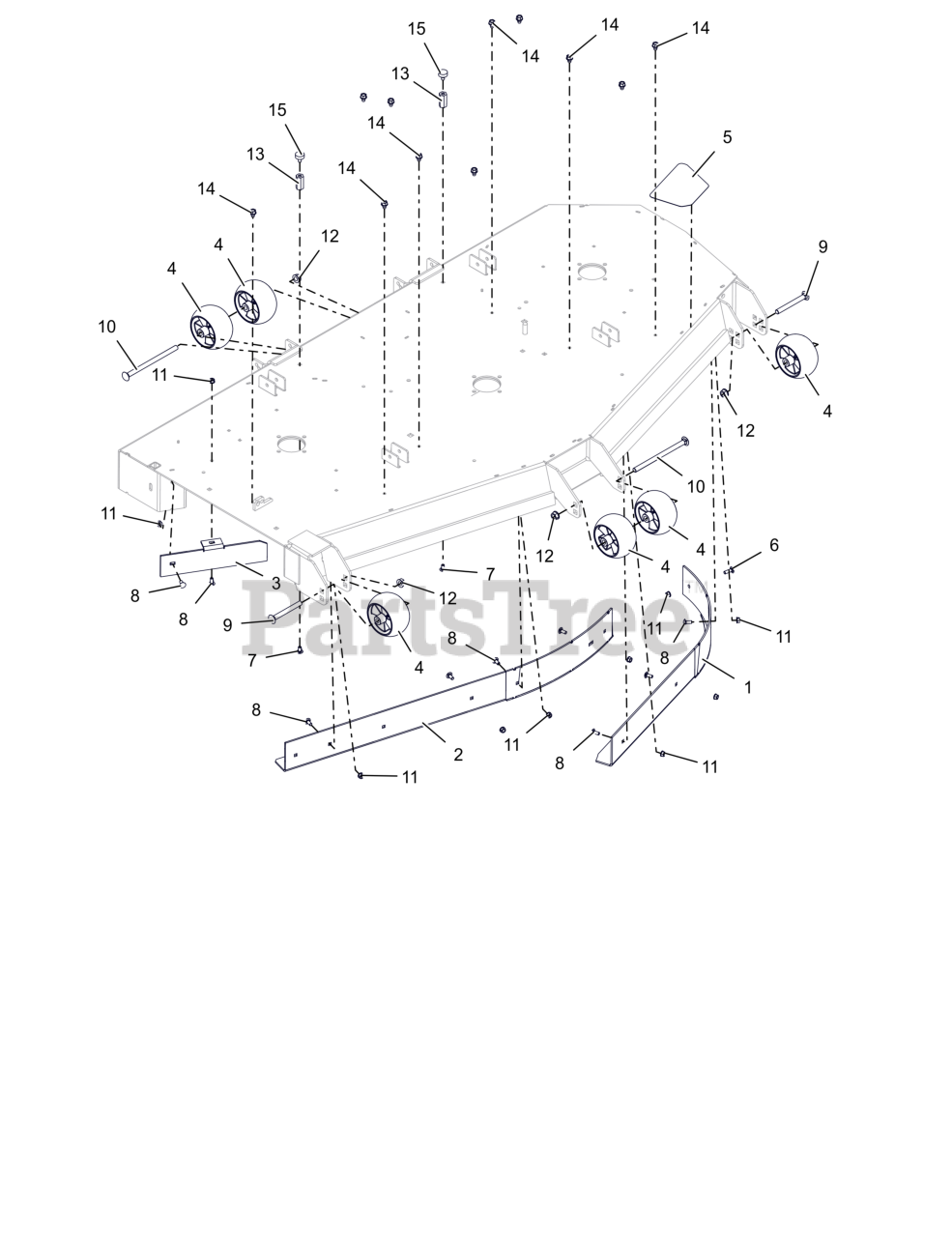

Anti-Scalp Wheels and Deck Stops - 72" Parts Diagram

  • Title

1

Gravely 05255553

WLDMT, 72" LH VACUUM BAFFLE (RED)

$

$

Not available

2

Gravely 09374453

WLDMT, VACUUM BAFFLE 72" RH (RED)

$155.99

$

Usually ships in 4-12 days

0

3

Gravely 04962253

72" DISCHARGE BAFFLE - RED

$

$

Not available

4

Gravely 05268800

WHEEL, ANTI SCALP - 5X3 CTR W/RIBS

$11.99

$

In Stock, Qty 20+

0

5

Gravely 05286500

GRIP, STEP ANTI SKID
(Superseded to 05291700)

$

$

Not available

6

Gravely 06200237

BLT,RHSSN .31-18X1.00 G5 ZCC

$2.49

$

In Stock, only 3 left!

0

7

Gravely 06200304

BTL,RHSSN .313-18 X 0.625 G5 ZCC

$2.99

$

Usually ships in 4-12 days

0

8

Gravely 06200309

BLT, RHSSN.31-18X.750 G5 ZCC

$2.49

$

In Stock, Qty 20+

0

9

Gravely 06200505

BLT,RHNS .50-13X4.50 G5 ZCC NS

$5.99

$

Usually ships in 4-12 days

0

10

Gravely 06200506

BLT,RHSN .50-13X8.00 G5 ZCC NS

$6.99

$

Usually ships in 4-12 days

0

11

Gravely 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

12

Gravely 06500902

NUT-LK-CTR-FLG .500-13 GG ZCC

$1.49

$

In Stock, Qty 20+

0

13

Gravely 07001916

NUT, COUPLING .312-18 X 1.625

$11.99

$

Usually ships in 4-12 days

0

14

Gravely 07400126

SCR,TAP .375-16X.50 HWH TR ZCC

$1.49

$

In Stock, Qty 20+

0

15

Gravely 07533600

BUMPER, RUBBER

$11.99

$

In Stock, only 1 left!

0
