992502 (Pro-Turn 672) - Gravely Pro-Turn 72" Zero-Turn Mower, Kawasaki FX (SN: 010000 & Above) Deck, Spindles, Belts, and Blades - 72" Parts Diagram

Pro-Turn 72" Zero-Turn Mower, Kawasaki FX

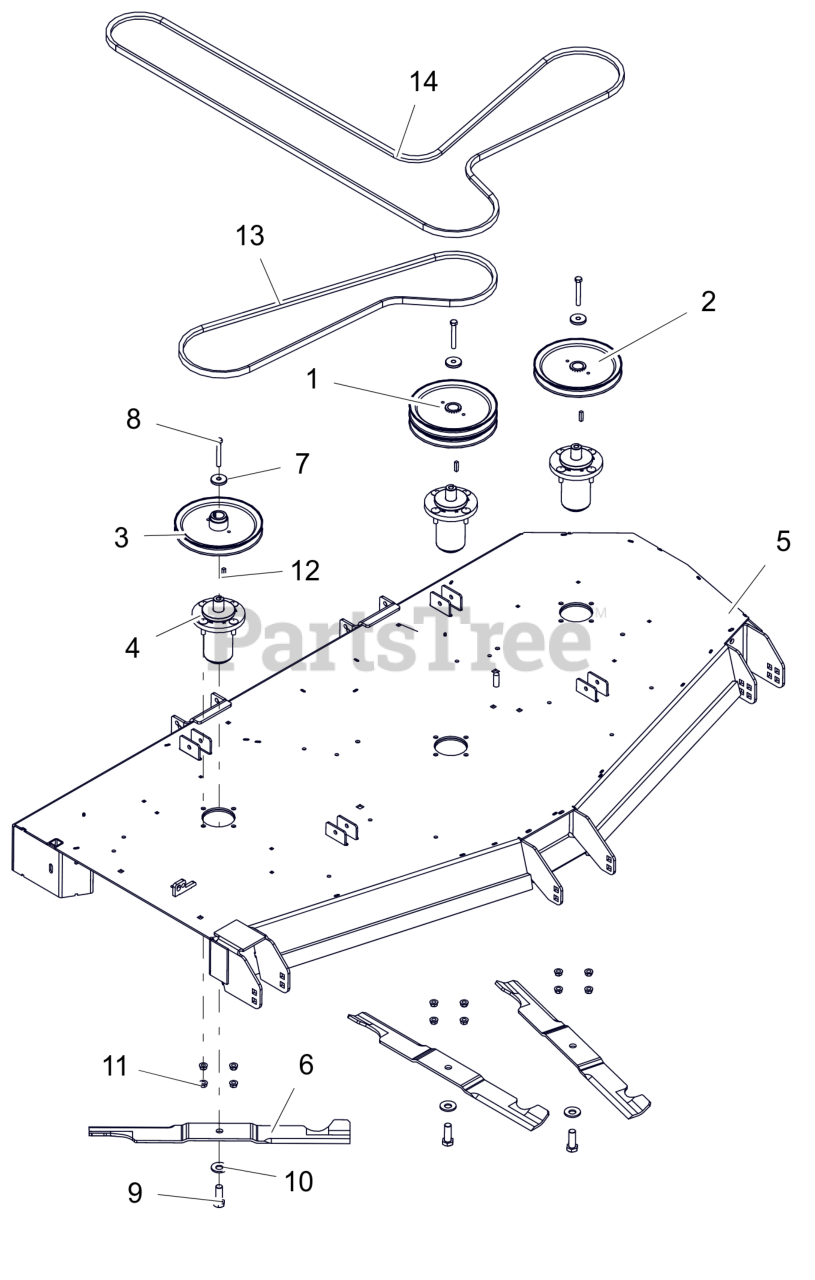

Deck, Spindles, Belts, and Blades - 72" Parts Diagram

  • Title

1

Gravely 07337600

SHEAVE-DOUBLE 1.00"ID X 8.25"OD

$129.99

$

In Stock, only 1 left!

0

2

Gravely 07337700

SHEAVE, SINGLE 1.00" X 8.25" OD

$91.99

$

Usually ships in 4-12 days

0

3

Gravely 07340800

SHEAVE, SINGLE 1.00" ID X 8.25" OD

$68.99

$

Usually ships in 4-12 days

0

4

Gravely 58810800

ASM, MAINT FREE ALUM SPINDLE

$239.99

$

In Stock, Qty 20+

0

5

Gravely 59229800

WLDMT, 72" SIDE DISCH DECK-X3 (RED) W/ SAFETY DECALS

$1612.99

$

Usually ships in 4-12 days

0

6

Gravely 04774600

BLADE, 72"

$36.99

$

In Stock, only 4 left!

0

7

Gravely 04530500

RETAINER, SHEAVE

$7.99

$

Usually ships in 4-12 days

0

8

Gravely 05901813

BLT, HEX .38-16X2.75 G8 ZCC

$1.49

$

Usually ships in 4-12 days

0

9

Gravely 05901822

BLT, HEX .62-18X1.75 G8 ZCC

$3.49

$

In Stock, Qty 12

0

10

Gravely 06445700

WSHR-BLVL .669X1.535X.138

$4.99

$

Usually ships in 4-12 days

0

11

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 11

0

12

Gravely 06611200

KEY, SQ .25X.25X1.00 RC 40-50

$2.99

$

In Stock, Qty 13

0

13

Gravely 07200039

V-BELT, B-COGGED

$74.99

$

In Stock, only 2 left!

0

14

Gravely 07200906

V-BELT, B SECTION

$134.99

$

Usually ships in 4-12 days

0
