992502 (Pro-Turn 672) - Gravely Pro-Turn 72" Zero-Turn Mower, Kawasaki FX (SN: 010000 & Above) Deck Drive Idlers - 72" Parts Diagram

Pro-Turn 72" Zero-Turn Mower, Kawasaki FX

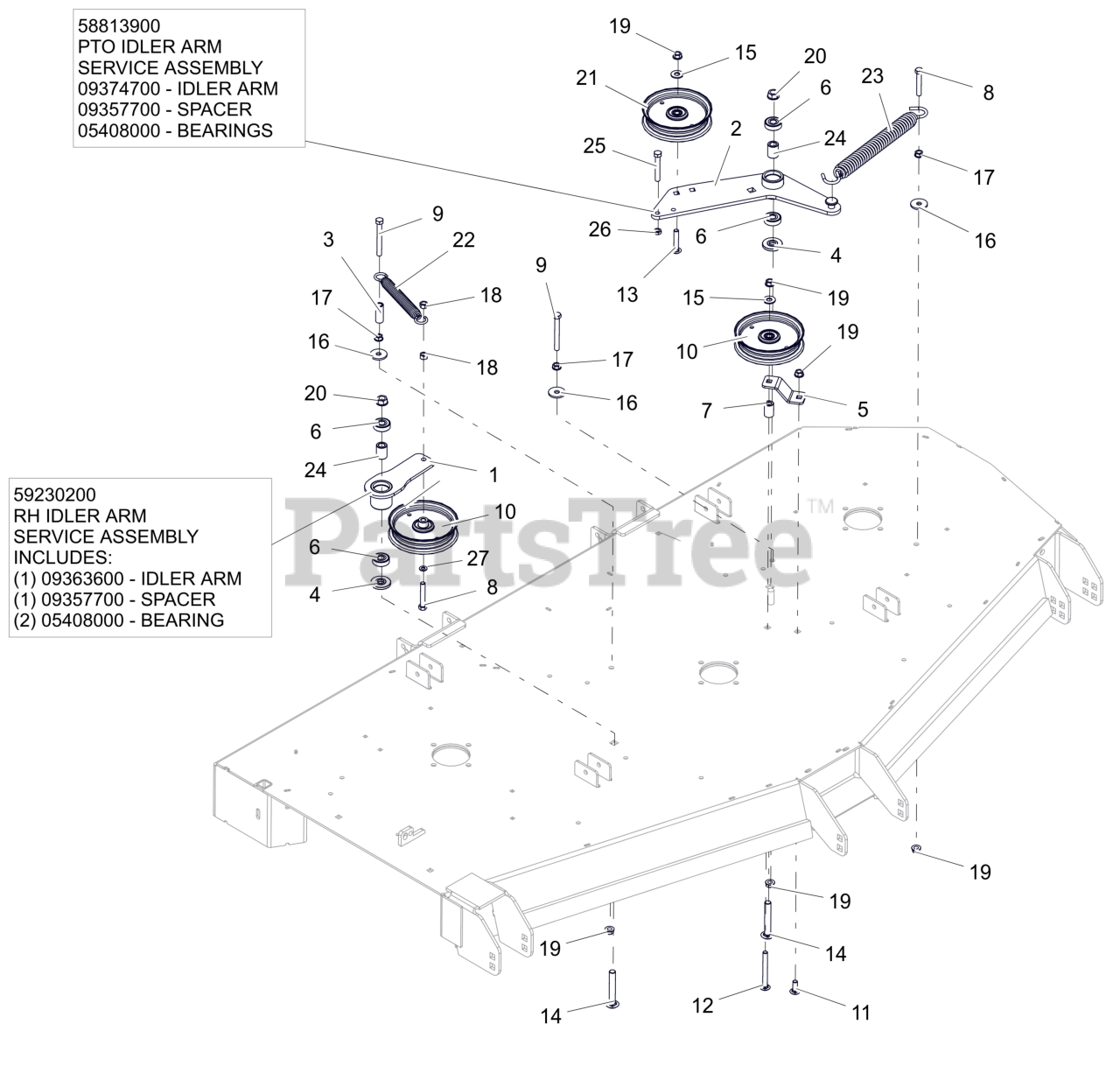

Deck Drive Idlers - 72" Parts Diagram

  • Title

1

Gravely 09363600

WLDMT, DECK RH IDLER ARM

$53.99

$

Usually ships in 4-12 days

0

1

Gravely 58813900

PTO IDLER ARM

Note: Service Part Assembly

$113.99

$

Usually ships in 4-12 days

0

1

Gravely 09357700

SPACER .510 X .867 X 1.1485

Note: Service Part Component

$4.99

$

In Stock, only 4 left!

0

1

Gravely 05408000

BRG-BALL .500X1.38X.437

Note: Service Part Component

$5.99

$

In Stock, Qty 18

0

2

Gravely 09374700

WLDMT, IDLER ARM PT660

$85.99

$

Usually ships in 4-12 days

0

2

Gravely 59230200

RH IDLER ARM

Note: Service Part Assembly

$103.99

$

Usually ships in 4-12 days

0

2

Gravely 09357700

SPACER .510 X .867 X 1.1485

Note: Service Part Component

$4.99

$

In Stock, only 4 left!

0

2

Gravely 05408000

BRG-BALL .500X1.38X.437

Note: Service Part Component

$5.99

$

In Stock, Qty 18

0

3

Gravely 03763400

SPACER, .375IDX.625ODX1.66 PM

$3.99

$

In Stock, Qty 20+

0

4

Gravely 04714600

SPACER, IDLER ARM

$5.99

$

In Stock, Qty 20+

0

5

Gravely 04981853

PTO FIXED IDLER MTG BRKT -RED

$9.49

$

Usually ships in 4-12 days

0

6

Gravely 05408000

BRG-BALL .500X1.38X.437

$5.99

$

In Stock, Qty 18

0

7

Gravely 05501308

BUSHING, SLV .380X.750X1.190

$4.99

$

In Stock, Qty 19

0

8

Gravely 05901640

BLT,HEX .38-16X2.25 G5 ZCC

$3.99

$

In Stock, Qty 20+

0

9

Gravely 05901817

BLT, HEX .38-16X3.25 G5 ZCC

$3.99

$

In Stock, Qty 20+

0

10

Gravely 07351200

IDLER- FLAT - 5.00" X .75"

$40.99

$

In Stock, Qty 7

0

11

Gravely 06200235

BLT,RHSSN .38-16X1.00 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

12

Gravely 06200238

BLT,RHSSN .38-16X3.50 G5 ZCC

$3.99

$

In Stock, Qty 20+

0

13

Gravely 06200323

BLT,RHSSN.375-16X2.00 G5 ZCC

$2.99

$

In Stock, Qty 20+

0

14

Gravely 06200339

BTL,RHSSN .500-13 X 3.25 G5 ZCC

$3.99

$

In Stock, Qty 20+

0

15

Gravely 06401008

WSHR,FLT .438X1.00X.083 ZCC

$1.49

$

In Stock, Qty 20+

0

16

Gravely 06401121

WSHR,FLT .406X1.375X.135 ZCC

$5.99

$

In Stock, only 1 left!

0

17

Gravely 06500735

NUT, SPNLK-FLG .38-16 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

18

Gravely 06500825

NUT-LK-CTR .38-16 ZC120

$1.49

$

In Stock, Qty 20+

0

19

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

20

Gravely 06500902

NUT-LK-CTR-FLG .500-13 GG ZCC

$1.49

$

In Stock, Qty 20+

0

21

Gravely 07351100

PULLEY, FLAT IDLER .500 X .375 W/BRG

$38.99

$

Usually ships in 4-12 days

0

22

Gravely 08300728

SPRING- EXTENSION

$26.99

$

In Stock, Qty 20+

0

23

Gravely 08300708

SPRING, EXTENSION

$19.99

$

In Stock, Qty 20+

0

24

Gravely 09357700

SPACER .510 X .867 X 1.1485

$4.99

$

In Stock, only 4 left!

0

25

Gravely 05901812

BLT, HEX .38-16X2.50 G5 ZCC

$2.49

$

In Stock, Qty 20+

0

26

Gravely 06500910

NUT-JAM .375-16 G2 ZCC

$0.99

$

In Stock, Qty 20+

0

27

Gravely 06401002

WSHR,FLT .323X.625X.062 ZCC

$1.49

$

In Stock, only 2 left!

0
