992502 (Pro-Turn 672) - Gravely Pro-Turn 72" Zero-Turn Mower, Kawasaki FX (SN: 006000 - 009999) Seat - Upper Shock Parts Diagram

Pro-Turn 72" Zero-Turn Mower, Kawasaki FX

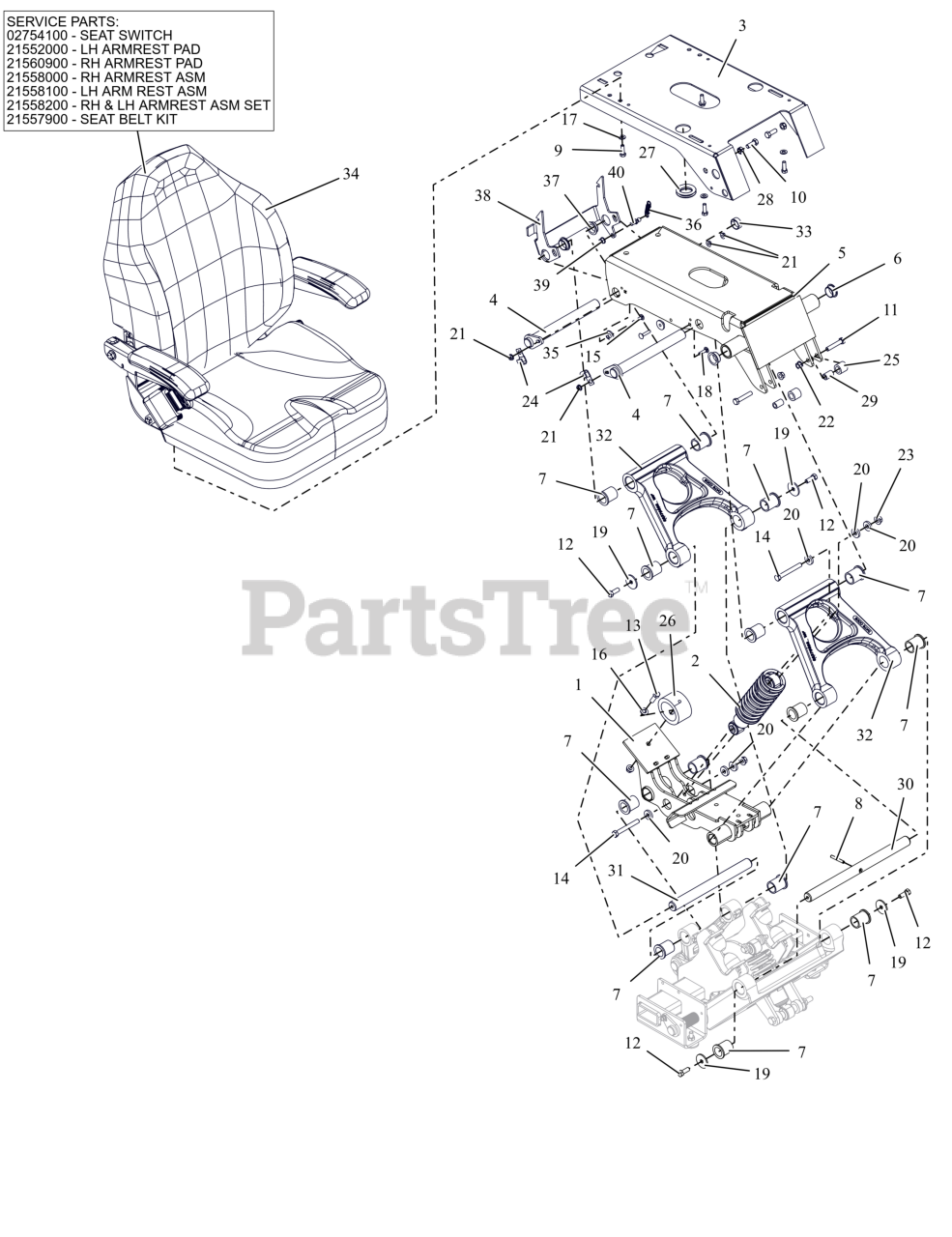

Seat - Upper Shock Parts Diagram

  • Title
1

Gravely 09372499

WLDMT, SUSPENSION MID LINK

$

$

Currently unavailable

2

Gravely 09375900

SHOCK, UPPER - TENNECO

$271.99

$

Usually ships in 4-12 days

0

3

Gravely 09671953

WLDMT- SEAT MOUNT - RED

$188.99

$

Usually ships in 4-12 days

0

4

Gravely 09461653

WLDMT, UPPER PIVOT SHAFT (RED)

$

$

Not available

5

Gravely 59228900

WLDMT, SEAT MOUNTING SUPPORT (RED) W/ SAFETY DECALS

$341.99

$

Usually ships in 4-12 days

0

6

Gravely 05501124

BSHG-FLG 1.0X1.125X.50X1.375 R

$3.99

$

In Stock, Qty 20+

0

7

Gravely 05501424

BEARING, SINTERED BRONZE FLANGE

$11.99

$

Usually ships in 4-12 days

0

8

Gravely 05803700

PIN-ROLL .250X1.75

$0.99

$

In Stock, Qty 20+

0

9

Gravely 05901701

BLT,HEX .31-18X1.00 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

10

Gravely 05901711

BLT,HEX .38-16X1.00 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

11

Gravely 05901718

BLT,HEX .38-16X2.00 G5 ZCC

$2.99

$

In Stock, only 1 left!

0

12

Gravely 05901721

BLT, HEX .38-16X1.00 G8ZCCEP30

$1.99

$

In Stock, Qty 20+

0

13

Gravely 05901724

BLT, HEX .38-16X1.25 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

14

Gravely 05902110

BLT,HEX M10-1.5X80 G10.9 ZCC

$4.99

$

Usually ships in 4-12 days

0

15

Gravely 06200403

BTL,RHSN .250-20 X 1.25 G5 ZCC

$

$

Currently unavailable

16

Gravely 06401013

WSHR,FLT .406X.812X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

17

Gravely 06401017

WSHR,FLT .344X.688X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

18

Gravely 06200402

BLT, RHSN .25-20X1.00 G5 ZCC

$2.49

$

In Stock, only 3 left!

0

19

Gravely 06401106

WSHR, FLT .380X1.50X.125 ZCC

$3.49

$

In Stock, Qty 8

0

20

Gravely 06401108

WSHR, FLT .406X1.00X.188 ZCC

$2.49

$

In Stock, Qty 20+

0

21

Gravely 06500821

NUT-LK-CTR-FLG .25-20 ZC120

$0.99

$

In Stock, Qty 20+

0

22

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

23

Gravely 06501011

NUT, FLG-CTR LK M10-1.50 ZCC

$3.49

$

Usually ships in 4-12 days

0

24

$3.49

$

In Stock, Qty 8

0

25

Gravely 07500007

BUMPER,RUBBER .62X1.0X.88 LG

$5.99

$

In Stock, only 2 left!

0

26

Gravely 07500435

BUMPER, RADIAL (GBR)

$35.99

$

Usually ships in 4-12 days

0

27

Gravely 07536800

GROMMET 1.25ID X 1.5OD

$12.99

$

Usually ships in 4-12 days

0

28

Gravely 07604600

NUT, WELD .375-16 HEX

$

$

Not available

29

Gravely 08833400

BUSH.,S.391X.622X.950 ST

$5.99

$

In Stock, only 1 left!

0

30

Gravely 09375700

SHAFT, PIVOT

$87.99

$

Usually ships in 4-12 days

0

31

Gravely 09375800

SHAFT, PIVOT

$

$

Not available

32

Gravely 09376800

MACHINED, UPPER LINK

$206.99

$

Usually ships in 4-12 days

0

33

Gravely 09385200

CAP, 1.000 ID X .375 DEEP

$

$

Not available

34

Gravely 30177800

SEAT, PT600

$840.99

$

Usually ships in 4-12 days

0

34

Gravely 02754100

SWITCH- SNAP MTG N.O.

Note: Component Service Part

$9.49

$

In Stock, Qty 20+

0

34

Gravely 21552000

PAD, ARMREST LH
(Superseded to 21560900)

Note: Component Service Part

$

$

Not available

34

Gravely 21560900

PAD, ARMREST RH OR LH (HARD)

Note: Component Service Part

$

$

Not available

34

Gravely 21558000

ARMREST, RH ASSEMBLY

Note: Component Service Part

$65.99

$

Usually ships in 4-12 days

0

34

Gravely 21558100

ARMREST, LH ASSEMBLY

Note: Component Service Part

$

$

Not available

34

Gravely 21558200

SET, RH & LH ARMREST ASSEMBLY

Note: Component Service Part

$120.99

$

Usually ships in 4-12 days

0

34

Gravely 21557900

KIT, SEAT BELT

Note: Component Service Part

$91.99

$

Usually ships in 4-12 days

0

35

Gravely 05500005

BSHG-FLG .265X.448X.375X1.00

$9.49

$

In Stock, only 3 left!

0

36

Gravely 08300029

SG-TENS .06X.46X2.00

$5.99

$

Usually ships in 4-12 days

0

37

Gravely 05501536

BSHG, FLANGE 1.000x1.125x.375x1.375

$3.99

$

Usually ships in 0 days

0

38

Gravely 30194151

BRKT, SEAT LATCH (BLACK)

$22.99

$

Usually ships in 0 days

0

39

Gravely 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

40

Gravely 03652200

STUD- BALL

$3.49

$

In Stock, only 3 left!

0
