992502 (Pro-Turn 672) - Gravely Pro-Turn 72" Zero-Turn Mower, Kawasaki FX (SN: 006000 - 009999) Casters and Drive Wheels Parts Diagram

Pro-Turn 72" Zero-Turn Mower, Kawasaki FX

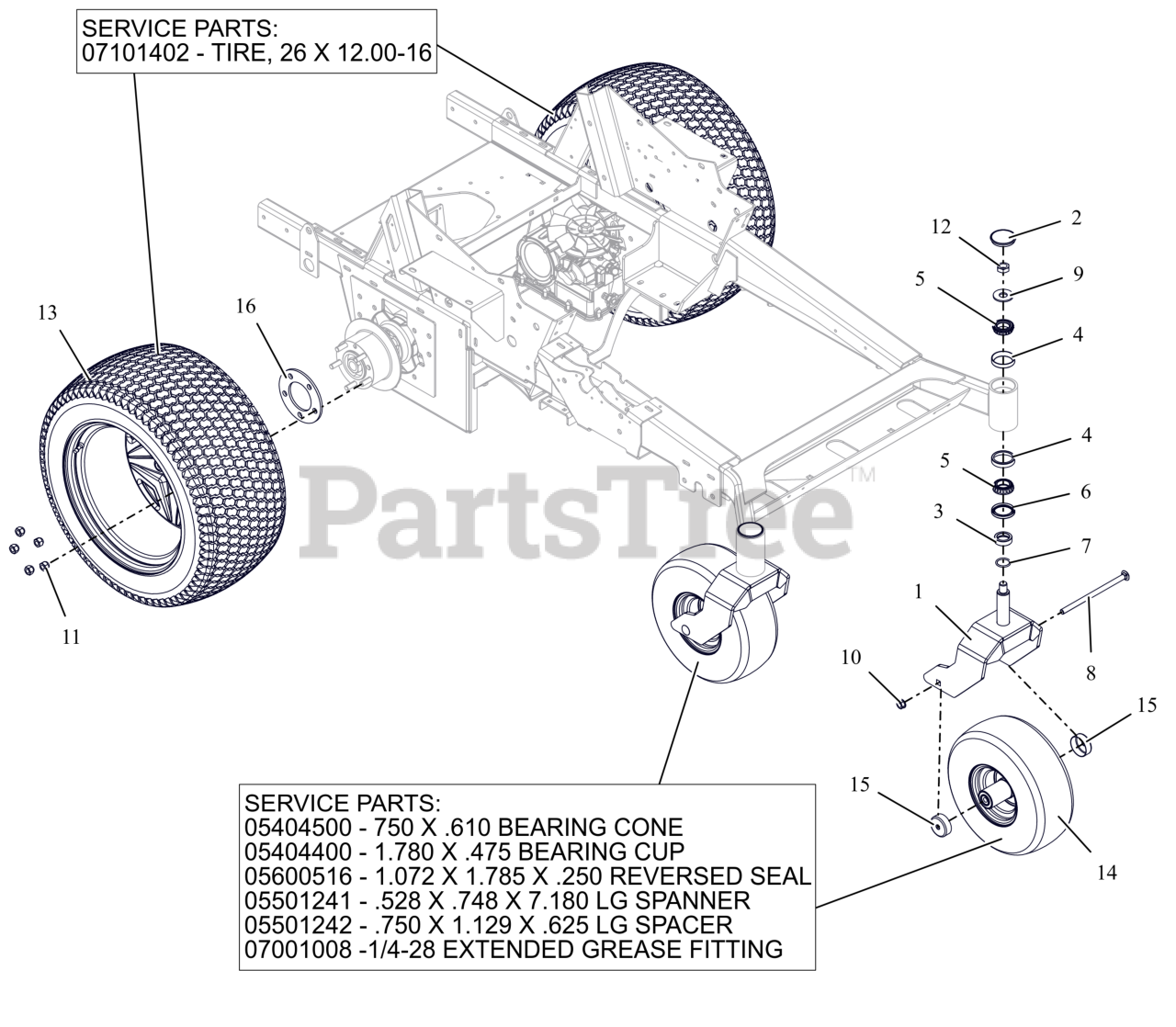

Casters and Drive Wheels Parts Diagram

  • Title

1

Gravely 09372353

WLDMT, CASTER FORK (RED)

$

$

Not available

2

Gravely 03925900

CAP, DUST

$11.99

$

In Stock, only 2 left!

0

3

Gravely 04861500

SPCR, FRONT CASTER FORK

$14.99

$

In Stock, Qty 6

0

4

Gravely 05404600

BRG-CUP 2.328X.465

$13.99

$

In Stock, only 2 left!

0

5

Gravely 05404700

BRG-CONE 1.25X.66

$20.99

$

In Stock, Qty 20+

0

6

Gravely 05600432

SEAL, OIL 1.75 X 2.332 X .312

$11.99

$

In Stock, Qty 13

0

7

Gravely 05600515

O-RING,

$2.49

$

In Stock, Qty 8

0

8

Gravely 06200510

BLT-RHSN .50-13X9.00 G5 ZCC NS

$7.99

$

In Stock, only 2 left!

0

9

Gravely 06401201

WSHR-FL-STL 0.812X2X0.148 ZCC

$3.99

$

In Stock, only 3 left!

0

10

Gravely 06500902

NUT-LK-CTR-FLG .500-13 GG ZCC

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06500926

NUT, WHEEL .50-20 ZCC

$1.49

$

In Stock, Qty 20+

0

12

Gravely 06500933

NUT, JAM-TOPLOCK .750-16 ZCC

$3.99

$

In Stock, only 1 left!

0

13

Gravely 07101401

ASM, WHEEL /TIRE 26 X 12.00-16

$452.99

$

Usually ships in 4-12 days

0

13

Gravely 07101402

TIRE, 26 X 12.00-16

Note: Component Service Part

$250.99

$

Usually ships in 4-12 days

0

13

Gravely 07101528

TUBE, 26X12-16 TIRE

Note: Optional Component Service Part

$56.99

$

Usually ships in 4-12 days

0

14

Gravely 07101406

ASM, TIRE/WHEEL 15 X 6.00-6 SEMI

$205.99

$

Usually ships in 4-12 days

0

14

Gravely 05404500

BRG-CONE .750X.61

Note: Component Service Part

$23.99

$

In Stock, Qty 9

0

14

Gravely 05404400

BRG-CUP 1.781X.475

Note: Component Service Part

$10.99

$

In Stock, Qty 20+

0

14

Gravely 05600516

SEAL,1.072X1.785X.250 REVERSED

Note: Component Service Part

$21.99

$

In Stock, Qty 9

0

14

Gravely 05501241

SPANNER, .528X.748X7.18 LG

Note: Component Service Part

$30.99

$

In Stock, only 1 left!

0

14

Gravely 05501242

SPACER, .750X1.129X.625 LG

Note: Component Service Part

$5.99

$

Usually ships in 4-12 days

0

14

Gravely 07001008

GREASE FITTING 1/4-28 EXTENDED

Note: Component Service Part

$12.99

$

In Stock, only 2 left!

0

14

Gravely 07140200

TUBE 15X6-6

Note: Optional Component Service Part

$22.99

$

Usually ships in 4-12 days

0

15

Gravely 09357800

SHIELD, WHEEL BEARING

$9.49

$

In Stock, Qty 20+

0

16

Gravely 09425251

SPCR, PT600 WHEEL (BLACK)

$

$

Not available
