992502 (Pro-Turn 672) - Gravely Pro-Turn 72" Zero-Turn Mower, Kawasaki FX (SN: 000101 - 002999) Seat - Upper Shock Parts Diagram

Pro-Turn 72" Zero-Turn Mower, Kawasaki FX

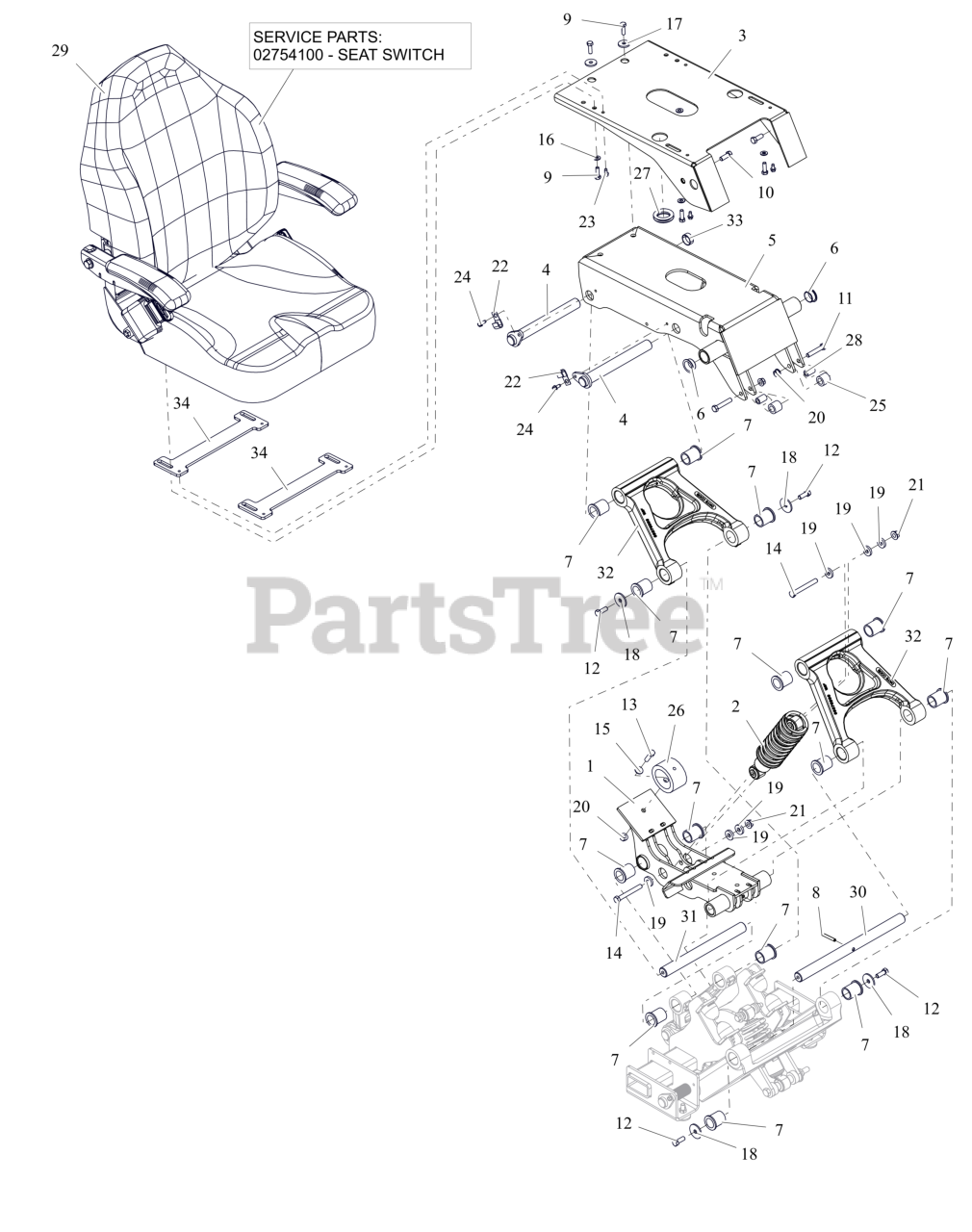

Seat - Upper Shock Parts Diagram

  • Title

1

Gravely 09372451

MACHINED, SUSPENSION MID LINK (BLACK)

$314.99

$

Usually ships in 4-12 days

0

2

Gravely 09375900

SHOCK, UPPER - TENNECO

$271.99

$

Usually ships in 4-12 days

0

3

Gravely 09376153

WLDMT, SEAT MOUNT (RED)

$123.99

$

Usually ships in 4-12 days

0

4

Gravely 09461653

WLDMT, UPPER PIVOT SHAFT (RED)

$

$

Not available

5

Gravely 59228900

WLDMT, SEAT MOUNTING SUPPORT (RED) W/ SAFETY DECALS

$341.99

$

Usually ships in 4-12 days

0

6

Gravely 05501124

BSHG-FLG 1.0X1.125X.50X1.375 R

$3.99

$

In Stock, Qty 20+

0

7

Gravely 05501424

BEARING, SINTERED BRONZE FLANGE

$11.99

$

Usually ships in 4-12 days

0

8

Gravely 05803700

PIN-ROLL .250X1.75

$0.99

$

In Stock, Qty 20+

0

9

Gravely 05901701

BLT,HEX .31-18X1.00 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

10

Gravely 05901711

BLT,HEX .38-16X1.00 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

11

Gravely 05901718

BLT,HEX .38-16X2.00 G5 ZCC

$2.99

$

In Stock, only 1 left!

0

12

Gravely 05901721

BLT, HEX .38-16X1.00 G8ZCCEP30

$1.99

$

In Stock, Qty 20+

0

13

Gravely 05901724

BLT, HEX .38-16X1.25 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

14

Gravely 05902110

BLT,HEX M10-1.5X80 G10.9 ZCC

$4.99

$

Usually ships in 4-12 days

0

15

Gravely 06401013

WSHR,FLT .406X.812X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

16

Gravely 06401017

WSHR,FLT .344X.688X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

17

Gravely 06401104

WSHR, FLT .340X1.125X.135 ZCC

$3.99

$

In Stock, only 2 left!

0

18

Gravely 06401106

WSHR, FLT .380X1.50X.125 ZCC

$3.49

$

In Stock, Qty 8

0

19

Gravely 06401108

WSHR, FLT .406X1.00X.188 ZCC

$2.49

$

In Stock, Qty 20+

0

20

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

21

Gravely 06501011

NUT, FLG-CTR LK M10-1.50 ZCC

$3.49

$

Usually ships in 4-12 days

0

22

Gravely 06909400

J-CLAMP

$3.49

$

In Stock, Qty 8

0

23

Gravely 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

24

Gravely 07400135

SCR,TAP .25-20X.625 HWH ZCC

$2.49

$

In Stock, Qty 6

0

25

Gravely 07500007

BUMPER,RUBBER .62X1.0X.88 LG

$5.99

$

In Stock, only 2 left!

0

26

Gravely 07500435

BUMPER, RADIAL (GBR)

$35.99

$

Usually ships in 4-12 days

0

27

Gravely 07536800

GROMMET 1.25ID X 1.5OD

$12.99

$

Usually ships in 4-12 days

0

28

Gravely 08833400

BUSH.,S.391X.622X.950 ST

$5.99

$

In Stock, only 1 left!

0

29

Gravely 09364200

SEAT, PT600

$

$

Not available

29

Gravely 02754100

SWITCH- SNAP MTG N.O.

Note: SERVICE PART

$9.49

$

In Stock, Qty 20+

0

30

Gravely 09375700

SHAFT, PIVOT

$87.99

$

Usually ships in 4-12 days

0

31

Gravely 09375800

SHAFT, PIVOT

$

$

Not available

32

Gravely 09376800

MACHINED, UPPER LINK

$206.99

$

Usually ships in 4-12 days

0

33

Gravely 09385200

CAP, 1.000 ID X .375 DEEP

$

$

Not available

34

Gravely 09396653

SPCR, SEAT MTG (RED)

$25.99

$

Usually ships in 4-12 days

0
