992501 (Pro-Turn 660) - Gravely Pro-Turn 60" Zero-Turn Mower, Kawasaki FX (SN: 000101 - 002999) Seat - Footrest Parts Diagram

Pro-Turn 60" Zero-Turn Mower, Kawasaki FX

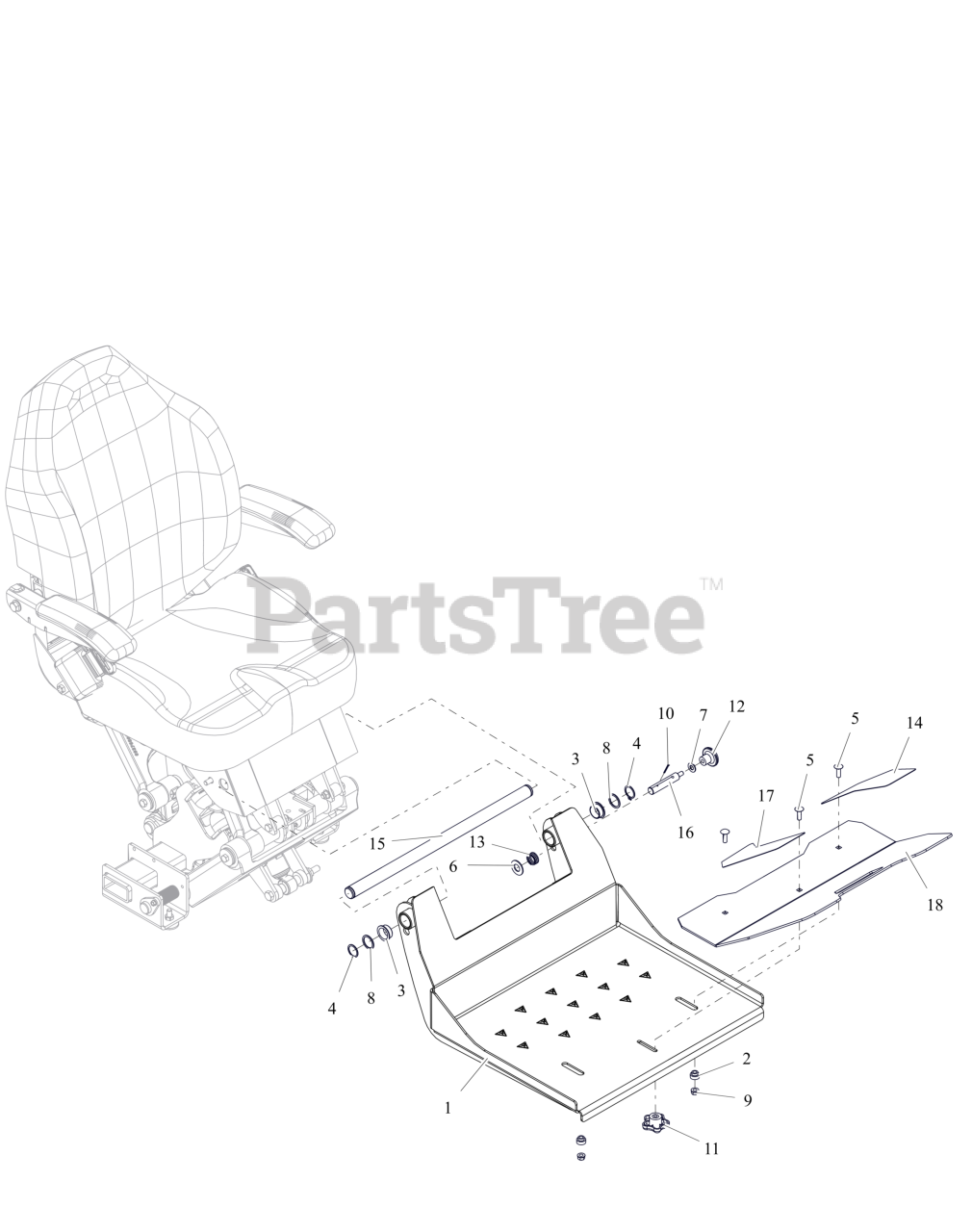

Seat - Footrest Parts Diagram

  • Title

1

Gravely 59229100

WLDMT, FOOTREST (RED) W/ SAFETY DECAL

$601.99

$

Usually ships in 4-12 days

0

2

Gravely 05501114

SPCR, BRG .315X.500X.481X.281

$

$

Not available

3

Gravely 05501124

BSHG-FLG 1.0X1.125X.50X1.375 R

$3.99

$

In Stock, Qty 20+

0

4

Gravely 05706200

RG-RTNG-EXT 1.00X.042

$2.49

$

In Stock, only 1 left!

0

5

Gravely 06200237

BLT,RHSSN .31-18X1.00 G5 ZCC

$2.49

$

In Stock, only 3 left!

0

6

Gravely 06401006

WSHR-FL-STL 0.649X1.305X0.074 Raw

$

$

Not available

7

Gravely 06401013

WSHR,FLT .406X.812X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

8

Gravely 06401134

WSHR-FL-STL 1.01X1.25X0.068 ZCC

$3.99

$

In Stock, Qty 11

0

9

Gravely 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

10

Gravely 06700200

PIN-COTR .09X1.0 PL

$0.99

$

Usually ships in 4-12 days

0

11

Gravely 07500240

KNOB, LOCKING 5/16-18 UNC

$2.49

$

In Stock, Qty 8

0

12

Gravely 07539900

KNOB, PUSH-PULL .312-18

$6.99

$

In Stock, only 1 left!

0

13

Gravely 08329100

SG-COMP .085X.80X1.00 WLD36

$13.99

$

In Stock, only 1 left!

0

14

Gravely 09370900

ANTI-SKID, LH FOOTREST

$

$

Currently unavailable

15

Gravely 09376500

SHAFT, PIVOT

$50.99

$

Usually ships in 4-12 days

0

16

Gravely 09385400

PIN, FOOTREST LOCK-UP

$22.99

$

Usually ships in 4-12 days

0

17

Gravely 09390700

ANTI-SKID, FRAME STEP

$51.99

$

Usually ships in 4-12 days

0

18

Gravely 59229000

FOOTREST, ADJUSTABLE (RED) W/ SAFETY DECAL

$

$

Not available
