992500 (Pro-Turn 652) - Gravely Pro-Turn 52" Zero-Turn Mower, Kawasaki FX (SN: 003000 - 003999) Park Brake - Lower Parts Diagram

Pro-Turn 52" Zero-Turn Mower, Kawasaki FX

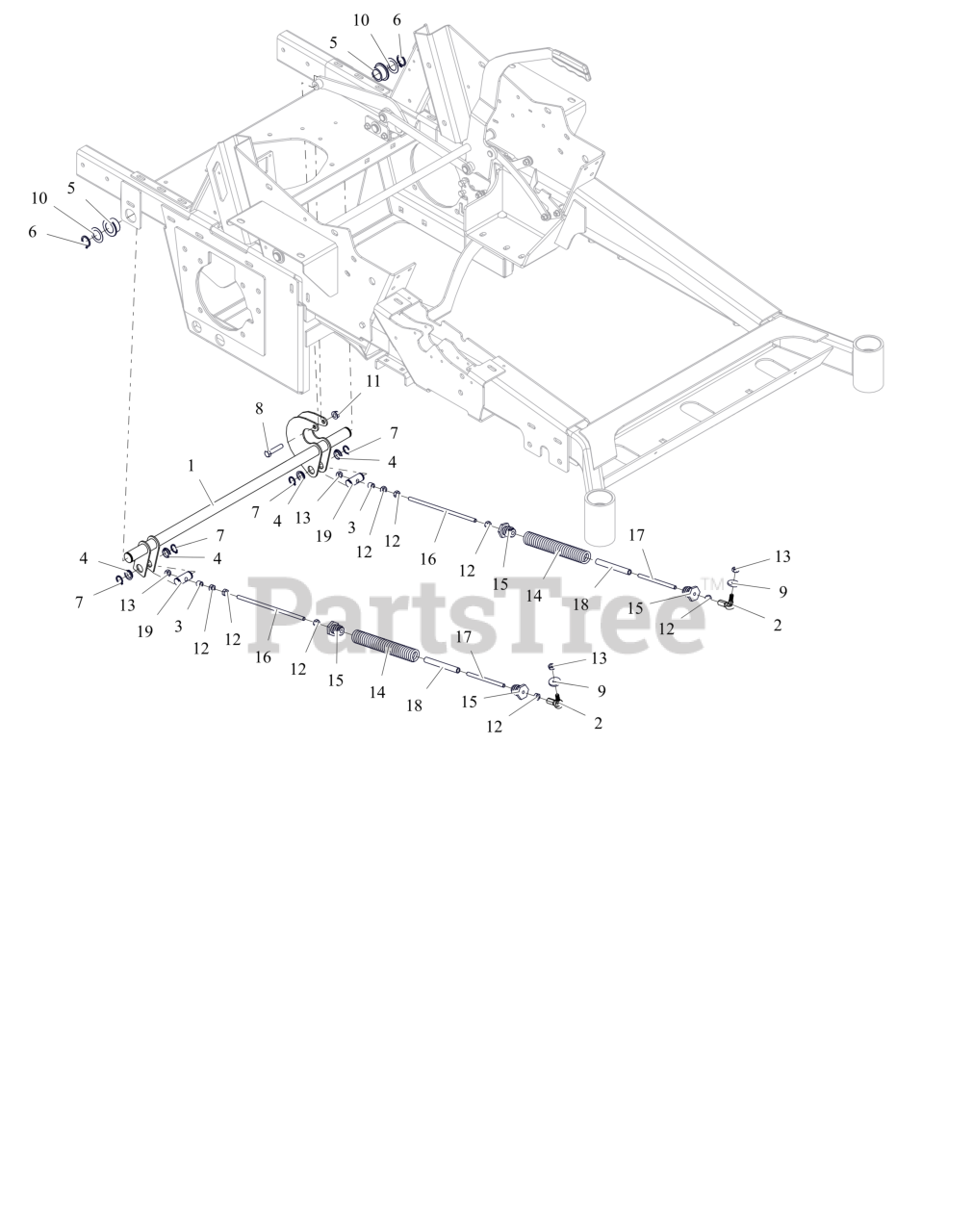

Park Brake - Lower Parts Diagram

  • Title

1

Gravely 09427400

WLDMT, BRAKE REAR PIVOT SHAFT

$121.99

$

Usually ships in 4-12 days

0

2

Gravely 09427800

LINKAGE, BALL JOINT .312-24 UNF RH STUD

$20.99

$

Usually ships in 4-12 days

0

3

Gravely 01103100

SPACER .50 X .32 X .42

$3.99

$

In Stock, Qty 10

0

4

Gravely 05500027

BSHG, POLYLINER- .75 SNAP-IN

$2.49

$

In Stock, Qty 20+

0

5

Gravely 05520100

BSHG-FLG1.020X1.385X.75X1.75NY

$11.99

$

In Stock, Qty 18

0

6

Gravely 05707300

RG-RTNG-EXT 1.00X.078

$2.99

$

In Stock, Qty 9

0

7

Gravely 05714600

RG-RTNG-EXT .689X.078

$2.49

$

In Stock, Qty 5

0

8

Gravely 05901612

BLT, HEX .38-16X1.75F G5 ZCC

$2.99

$

In Stock, only 1 left!

0

9

Gravely 06401104

WSHR, FLT .340X1.125X.135 ZCC

$3.99

$

In Stock, only 2 left!

0

10

Gravely 06435300

WSHR-HDND-THRUST 1.00X1.55X.03

$4.99

$

In Stock, only 3 left!

0

11

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

12

Gravely 06500939

NUT, HEX-JAM .3125-24 ZCC

$1.99

$

Usually ships in 4-12 days

0

13

Gravely 06537000

NUT-CTRLK .31-24 YWZC

$

$

Not available

14

Gravely 08300724

SPRG, EXTENSION .063 X .653 X 2.755

$22.99

$

Usually ships in 4-12 days

0

15

Gravely 09426700

PLUG, SPRG

$31.99

$

Usually ships in 4-12 days

0

16

Gravely 09426800

ROD, TRUNNION END THREADED

$29.99

$

Usually ships in 4-12 days

0

17

Gravely 09426900

ROD, BALL END THREADED

$10.99

$

Usually ships in 4-12 days

0

18

Gravely 09427000

TUBE, GUIDE

$

$

Not available

19

Gravely 09427100

TRUNNION, BRAKE PIVOT

$22.99

$

Usually ships in 4-12 days

0
