992500 (Pro-Turn 652) - Gravely Pro-Turn 52" Zero-Turn Mower, Kawasaki FX (SN: 003000 - 003999) Fuel Tanks - Kawasaki - Non-EFI Parts Diagram

Pro-Turn 52" Zero-Turn Mower, Kawasaki FX

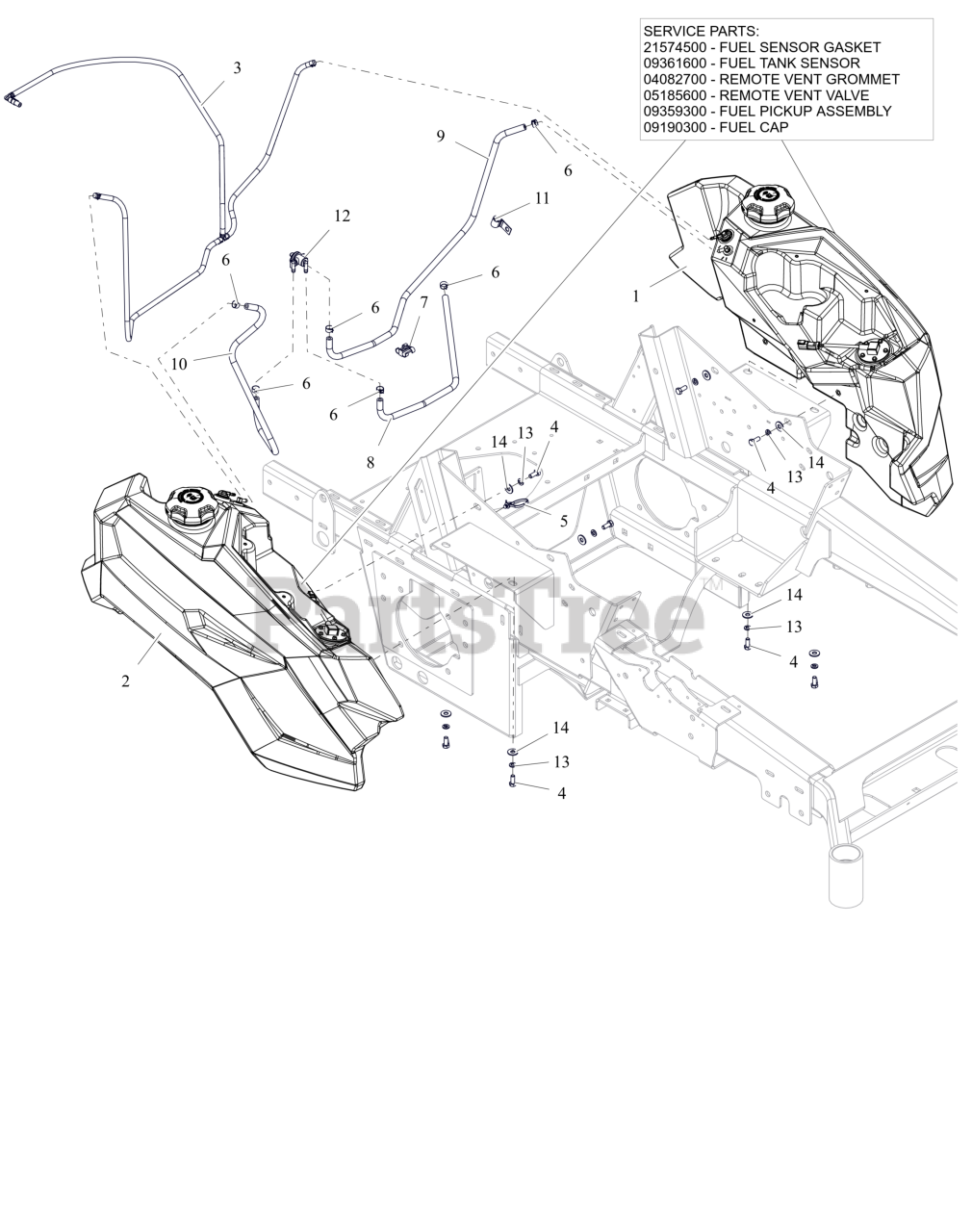

Fuel Tanks - Kawasaki - Non-EFI Parts Diagram

  • Title

1

Gravely 09359400

ASM, LH FUEL TANK

$407.99

$

Usually ships in 4-12 days

0

1

Gravely 21574500

FUEL TANK SENSOR GASKET
(Superseded to 09361600)

Note: Service Part Component

$62.99

$

Usually ships in 4-12 days

0

1

Gravely 09361600

FUEL TANK SENSOR

Note: Service Part Component

$62.99

$

Usually ships in 4-12 days

0

1

Gravely 04082700

GROMMET, REMOTE VENT NITRILE

Note: Service Part Component

$3.49

$

In Stock, Qty 10

0

1

Gravely 05185600

VALVE, COMBINATION VENT 3/16

Note: Service Part Component

$17.99

$

In Stock, only 1 left!

0

1

Gravely 09359300

FUEL PICKUP ASSEMBLY

Note: Service Part Component

$

$

Not available

1

Gravely 09190300

CAP, FUEL - 3.50 RATCHET INLET VENT

Note: Service Part Component

$33.99

$

In Stock, Qty 20+

0

2

Gravely 09359500

ASM, RH 421 FUEL TANK

$407.99

$

Usually ships in 4-12 days

0

3

Gravely 09390000

ASM, KAWASAKI NON-EFI VAPOR LINE

$51.99

$

Usually ships in 4-12 days

0

4

Gravely 05901704

BLT,HEX .31-18X.75 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

5

Gravely 07500040

CABLE TIE W/ TREE (.25 HOLE)

$3.99

$

In Stock, only 1 left!

0

6

Gravely 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 20+

0

7

Gravely 07001712

CLIP, T, .38-.50

$

$

Not available

8

Gravely 03278100

1 INCH OF HOSE, .25 LOW-PERM BULK GAS

$1.49

$

In Stock, Qty 20+

0

9

Gravely 03278100

1 INCH OF HOSE, .25 LOW-PERM BULK GAS

$1.49

$

In Stock, Qty 20+

0

10

Gravely 03278100

1 INCH OF HOSE, .25 LOW-PERM BULK GAS

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06916000

J-CLAMP

$2.49

$

Usually ships in 4-12 days

0

12

Gravely 09389900

VALVE, FUEL - WITH MAGNET
(Superseded to 30193300)

$39.99

$

Usually ships in 4-12 days

0

13

Gravely 06300119

WSHR,LK-REG .312X.078 ZCC

$0.99

$

In Stock, Qty 20+

0

14

Gravely 06401023

WSHR,FLT .375X.875X.083 ZCC

$1.49

$

In Stock, Qty 20+

0
