992500 (Pro-Turn 652) - Gravely Pro-Turn 52" Zero-Turn Mower, Kawasaki FX (SN: 000101 - 002999) Control Panel - Kawasaki FX850 Parts Diagram

Pro-Turn 52" Zero-Turn Mower, Kawasaki FX

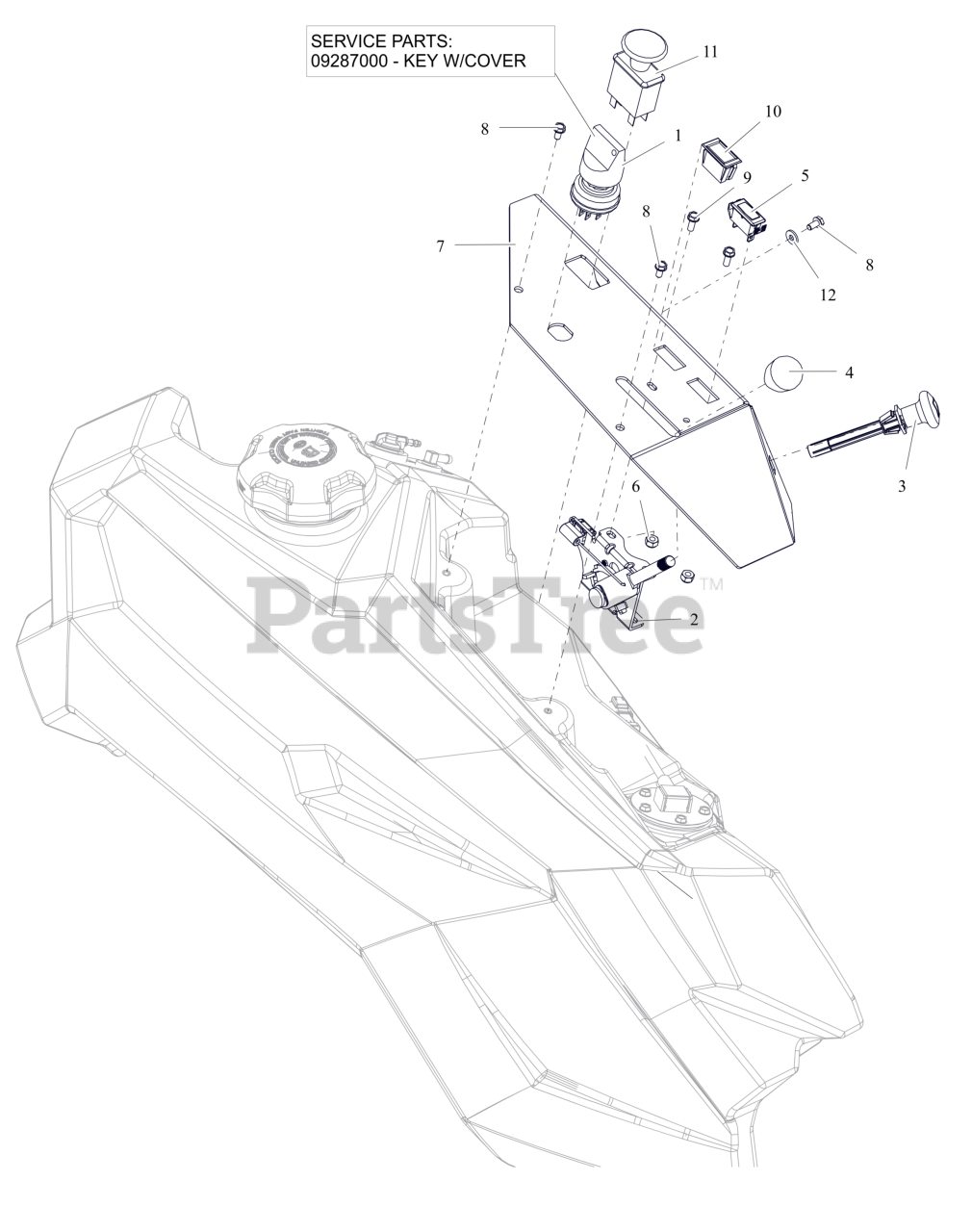

Control Panel - Kawasaki FX850 Parts Diagram

  • Title

1

Gravely 04331600

SWITCH, IGNITION

$46.99

$

In Stock, Qty 20+

0

1

Gravely 09287000

KEY, W/ SHIELD

Note: Component Service Part

$15.99

$

In Stock, Qty 20+

0

2

Gravely 06900629

CABLE, PRO-CTRL 46.00"

$47.99

$

Usually ships in 4-12 days

0

3

Gravely 06900729

CABLE, CHOKE (SNAP IN)

$28.99

$

Usually ships in 4-12 days

0

4

Gravely 07500132

KNOB-CONTROL-BLACK .38-16X.50

$11.99

$

In Stock, Qty 7

0

5

Gravely 05128700

LIGHT, INDICATOR (RED)

$6.99

$

In Stock, only 1 left!

0

6

Gravely 06500915

NUT-LK-NYL #10-24 G2 ZCC

$0.99

$

In Stock, Qty 20+

0

7

Gravely 09376453

PANEL, RH CONTROL (RED)

$50.99

$

Usually ships in 4-12 days

0

8

Gravely 06100211

SCR-MCH 10-24X.38 HWHSTAINLESS

$2.99

$

In Stock, Qty 11

0

9

Gravely 05901825

BLT, HWH #10-24X.50 ZCC

$0.99

$

In Stock, Qty 20+

0

10

Gravely 09003300

SWITCH,BLANK

$4.99

$

Usually ships in 4-12 days

0

11

Gravely 01545600

SWITCH, CLUTCH

$26.99

$

In Stock, Qty 20+

0

12

Gravely 06401029

WSHR-FL-STL .196X.50X.06 ZC120

$2.49

$

Usually ships in 4-12 days

0
