992411 - EverRide Fury ZT Zero-Turn Mower (SN: 000101 & Above) Seat, Electrical and Powertrain 992411 Parts Diagram

Fury ZT Zero-Turn Mower

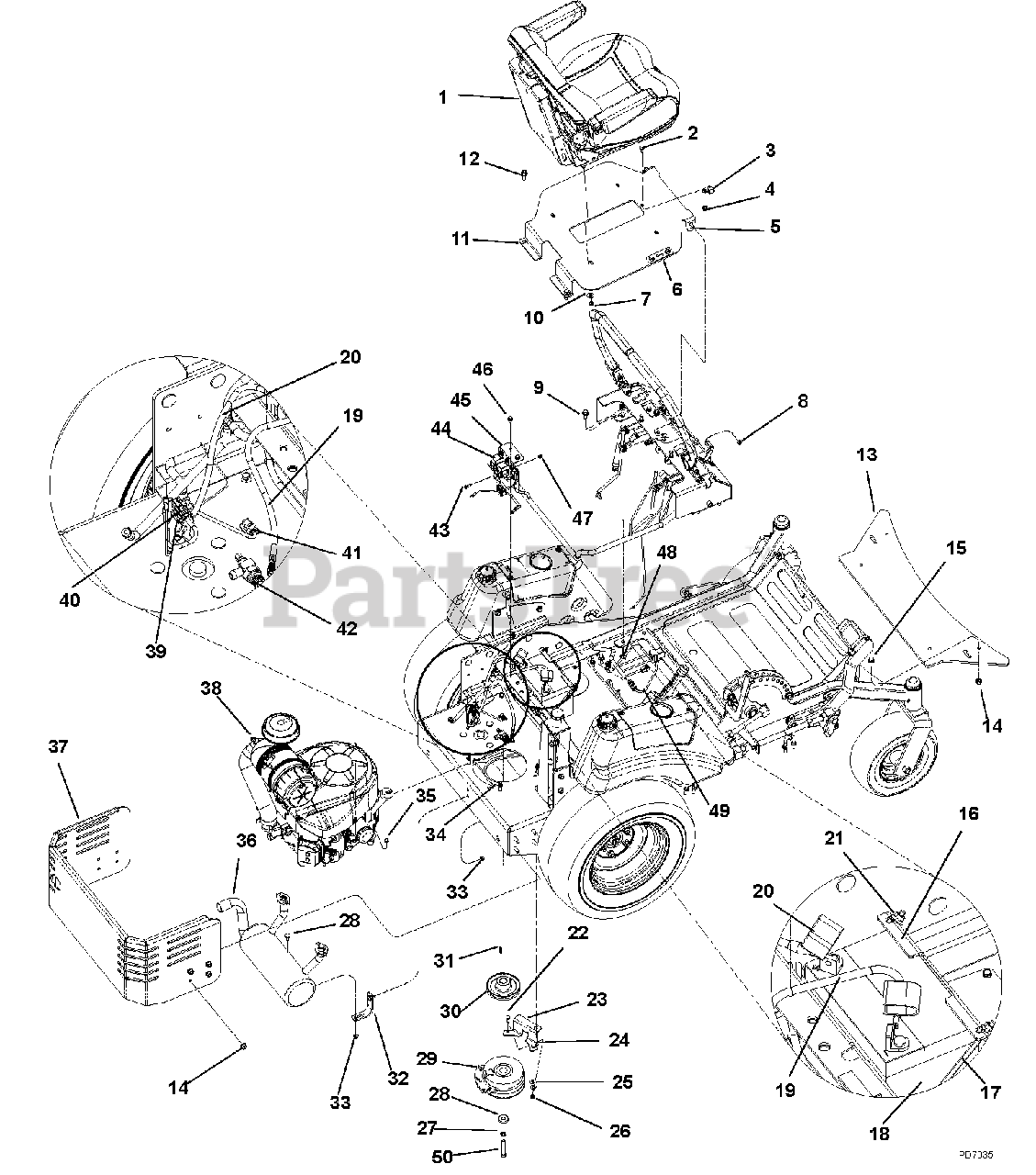

Seat, Electrical and Powertrain 992411 Parts Diagram

  • Title

1

Gravely 00180916

SEAT, FULL SUSPENSION

$

$

Not available

2

Gravely 03M7184

BOLT, M8 X 1.25 X 20 CRG 8.8 Y

$

$

Not available

3

Gravely E53830

P-CLIP, .750 INSULATED

$3.99

$

Usually ships in 4-12 days

0

4

Gravely 14M7396

LOCKNUT, FL, ISO7043, M8 X 1.25

$

$

Not available

5

Gravely 00135139

BOLT, 1/2 X 1.06 X 3/8-16 SLD 5 Y
(Superseded to 07070119)

$3.99

$

Usually ships in 4-12 days

0

6

Gravely TCU14862

LABEL - PARK BRAKE DIRECTION

$

$

Not available

7

Gravely D14081

LOCKNUT, 5/16-18 NYLOCK Y

$

$

Not available

8

Gravely K40003

NUT, 3/8 LOCK

$

$

Not available

9

Gravely 19M7785

SCREW, HEX M10 X 1.5 X 25

$

$

Not available

10

Gravely 24H1887

WASHER, .344 X 1.00 X .134 FLAT Y

$

$

Not available

11

Gravely 03865461

PLATE, SEAT S/O

$

$

Not available

12

Gravely 19M7786

SCREW, HEX , FL, JDS123, M10 X 1.5 X 30

$

$

Not available

13

Gravely 03869061

PLATE, WEIGHT

$

$

Not available

14

Gravely 14M7518

LOCKNUT, FL, ISO7044, M10-1.50

$3.49

$

Usually ships in 4-12 days

0

15

Gravely 19M8162

SCREW, HEX , FL, JDS121, M10 X 1.5 X 40

$

$

Not available

16

Gravely GDU10204

HOLDER, BATTERY

$

$

Not available

17

Gravely D23047

J BOLT

$

$

Not available

18

Gravely 00181779

BATTERY, 12V-U1-CCA 400 MIN

$

$

Not available

19

Gravely 00180843

CABLE, BATTERY -20" GROUND

$

$

Not available

20

Gravely D28118

CABLE, BATTERY POSITIVE

$

$

Not available

21

Gravely H122207

NUT-1/4" FLANGE PREVAILING TORQUE

$

$

Not available

22

Gravely 00960022

BOLT, 5/16-18 X .750 HEX 5 Y

$

$

Not available

23

Gravely 00200824

BRACKET, CLUTCH STOP

$

$

Not available

24

Gravely 00960080

BOLT, 7/16-14 X 1.25 HEX 5 Y
(Superseded to 05963800)

$2.99

$

Usually ships in 4-12 days

0

25

Gravely 00960700

WASHER, .250 REG FLAT Y

$

$

Not available

26

Gravely 00967279

LOCKNUT, 5/16-18 CENTER Y

$

$

Not available

27

Gravely 00960603

WASHER, .438 MED SPRG LOCK Y
(Superseded to 06309300)

$2.99

$

In Stock, Qty 11

0

28

Gravely D18056

SPACER, .468 X 1.38 X .375 Y

$20.99

$

Usually ships in 4-12 days

0

29

Gravely GDA10017

CLUTCH

$515.99

$

Usually ships in 4-12 days

0

30

Gravely 00200318

PULLEY, V-BELT 4.78PD X 1.000 W/ KEY

$56.99

$

Usually ships in 4-12 days

0

31

Gravely D18145

KEY, .250 X .250 X .995 TPR

$

$

Not available

32

Gravely D22236

BRACKET, MUFFLER

$

$

Not available

33

Gravely H137328

LOCKNUT, M8 X 1.25, FLANGED ZN

$

$

Not available

34

Gravely 00960026

BOLT, 5/16-18 X 1.75 HEX 5 Y
(Superseded to 05901804)

$2.99

$

In Stock, Qty 8

0

35

Gravely 00964021

LOCKNUT, 5/16-18 CROWN Y
(Superseded to 06530800)

$5.99

$

Usually ships in 4-12 days

0

36

Gravely TCA14018

MUFFLER, MINI-Z

$273.99

$

Usually ships in 4-12 days

0

37

Gravely 03862761

BUMPER, REAR EKW

$

$

Not available

38

Gravely GDA10120

ENGINE, KAE25HP FH721V

$

$

Not available

39

Gravely GDA10055

HARNESS, PIGTAIL

$

$

Not available

40

Gravely 00200924

FUSIBLE LINK, 10"

$15.99

$

Usually ships in 4-12 days

0

41

Gravely 00200302

HARNESS, SEAT RELAY

$

$

Not available

42

Gravely TCA16240

OIL DRAIN FITTING

$

$

Not available

43

Gravely 19M7775

SCREW, HEX JDS123, M6 X 1 X 16 Z

$

$

Not available

44

Gravely AM123716

RELAY, SEALED W/ BRACKET

$35.99

$

Usually ships in 4-12 days

0

45

Gravely GDU10170

BRACKET, ELECTRIC MOUNTING

$

$

Not available

46

Gravely 19M7865

SCREW, HEX , FL, JDS123, M8 X 1.25 X 16

$

$

Not available

47

Gravely D38018

HARNESS, WIRING

$

$

Not available

48

Gravely 14M7397

LOCKNUT, F1.ISO7043M6 X 1-10
(Superseded to 06500729)

$2.99

$

Usually ships in 4-12 days

0

49

Gravely E63526

LOCKNUT, M10 X 1.50 WHIZ GR10 Y

$

$

Not available

50

Gravely 00967394

BOLT, 7/16-20 X 2.75 HEX 5 Y

$

$

Not available
