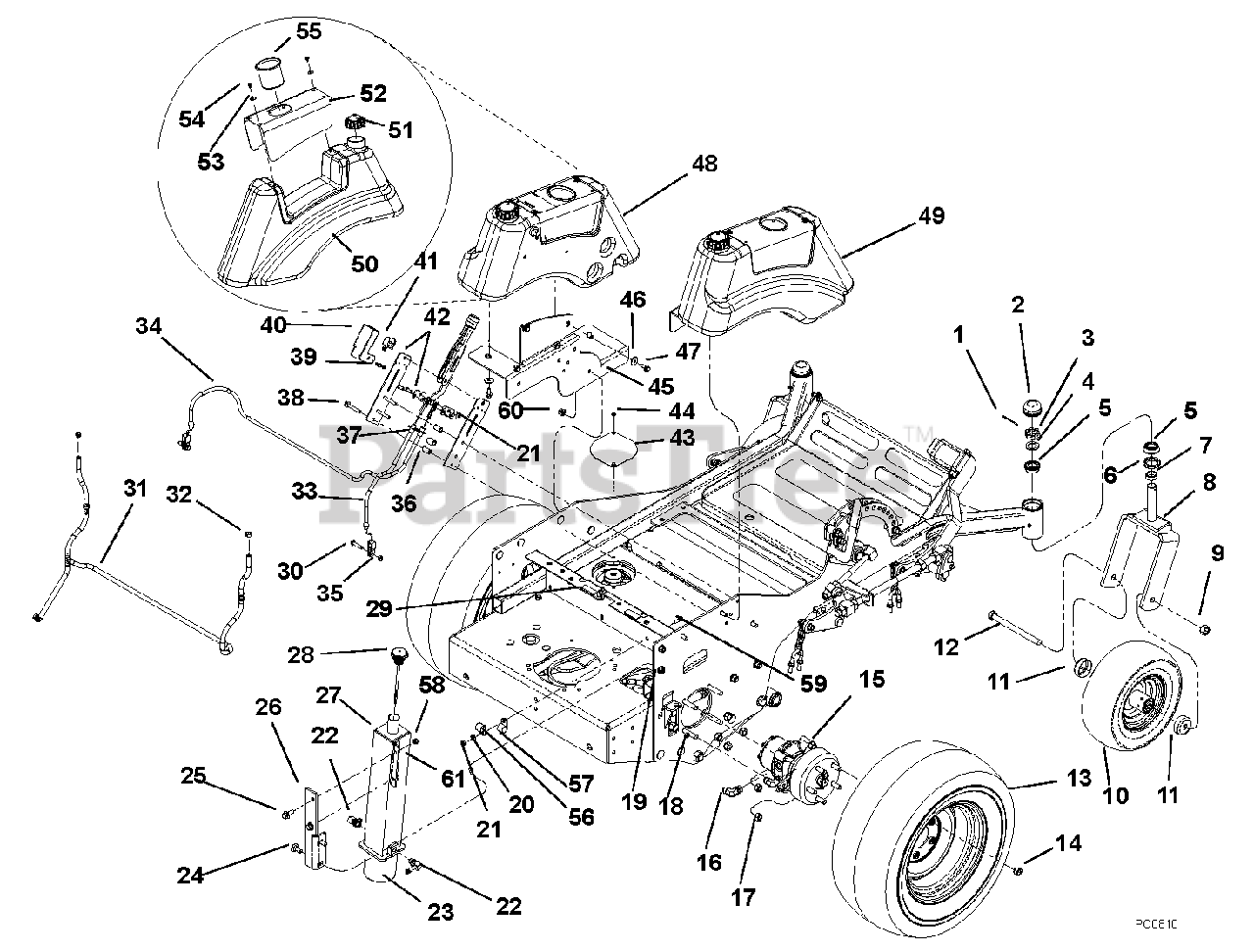

992410 - EverRide Fury ZT Zero-Turn Mower (SN: 000101 & Above) Wheels, Tanks and Parking Brake Parts Diagram

Fury ZT Zero-Turn Mower

Wheels, Tanks and Parking Brake Parts Diagram

  • Title

1

Gravely 11M7083

2

$

$

Not available

1

Gravely 11M7083

PIN, COTTER, DIN94, 3.2 X 50-ST-ZN

$

$

Not available

2

Gravely M135582

2
(Superseded to 05117700)

$5.99

$

In Stock, only 2 left!

0

2

Gravely M135582

CAP, DUST
(Superseded to 05117700)

$5.99

$

In Stock, only 2 left!

0

3

Gravely A12188

2

$

$

Not available

3

Gravely A12188

NUT, 1-14 CASTLE Y

$

$

Not available

4

Gravely 24H1801

2

$

$

Not available

4

Gravely 24H1801

WASHER, JDS24-1.016 X 1.5X.134-ST

$

$

Not available

5

Gravely JD8933

4
(Superseded to 05406900)

$18.99

$

In Stock, Qty 20+

0

5

Gravely JD8933

CONE, BEARING
(Superseded to 05406900)

$18.99

$

In Stock, Qty 20+

0

6

Gravely E14625

2

$15.99

$

Usually ships in 4-12 days

0

6

Gravely E14625

SEAL, WHEEL BEARING

$15.99

$

Usually ships in 4-12 days

0

7

Gravely TCU17863

2

$

$

Not available

7

Gravely TCU17863

SPACER, CASTER

$

$

Not available

8

Gravely 03866861

2

$

$

Not available

8

Gravely 03866861

WLDT, YOKE CASTER

$

$

Not available

9

Gravely 14M7276

2

$

$

Not available

9

Gravely 14M7276

NUT, ISO4032, M16 X 2-10-ZN

$

$

Not available

10

Gravely 00200967

2

$

$

Not available

10

Gravely 00200967

ASSY, WHEEL & TIRE - CASTER

$

$

Not available

11

Gravely TCU14490

4

$

$

Not available

11

Gravely TCU14490

CAP, WHEEL

$

$

Not available

12

Gravely 19M7978

2

$

$

Not available

12

Gravely 19M7978

SCREW, HEX HEAD, METRIC

$

$

Not available

13

Gravely GDA10000

2

$

$

Not available

13

Gravely GDA10000

TIRE, ASSEMBLY 23 X 9.5-12 TURF

$

$

Not available

14

Gravely 00960526

10
(Superseded to 06517600)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 00960526

NUT, 1/2-20 LUG C
(Superseded to 06517600)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 00200894

1

$

$

Not available

15

Gravely 00200894

MOTOR, WHEEL RH W/ BRAKE

$

$

Not available

Gravely 00200893

1

$

$

Not available

Gravely 00200893

MOTOR, WHEEL LH W/ BRAKE

$

$

Not available

16

Gravely D24026

4

$

$

Not available

16

Gravely D24026

FITTING

$

$

Not available

17

Gravely H32811

8

$

$

Not available

17

Gravely H32811

LOCKNUT, 1/2-13 CENTER Y

$

$

Not available

18

Gravely 19H1930

8

$

$

Not available

18

Gravely 19H1930

SCREW, JDS19-0.500-13UNC-2AX2.5

$

$

Not available

19

Gravely 14M7518

22

$3.49

$

Usually ships in 4-12 days

0

19

Gravely 14M7518

LOCKNUT, FL, ISO7044, M10-1.50

$3.49

$

Usually ships in 4-12 days

0

20

Gravely D14081

1

$

$

Not available

20

Gravely D14081

LOCKNUT, 5/16-18 NYLOCK Y

$

$

Not available

21

Gravely 24H1776

4

$

$

Not available

21

Gravely 24H1776

WASHER, 5/16 X 3/4 FLAT

$

$

Not available

22

Gravely D24028

6

$9.99

$

Usually ships in 4-12 days

0

22

Gravely D24028

FTG, 90 9/16 MOR X 3/8 HOSE

$9.99

$

Usually ships in 4-12 days

0

23

Gravely GDA10137

1

$28.99

$

In Stock, only 3 left!

0

23

Gravely GDA10137

FILTER, OIL

$28.99

$

In Stock, only 3 left!

0

24

Gravely 03M7017

8

$

$

Not available

24

Gravely 03M7017

BOLT, RD HD SQ LO, NG NECK, METR

$

$

Not available

25

Gravely 19M7785

2

$

$

Not available

25

Gravely 19M7785

SCREW, HEX M10 X 1.5 X 25

$

$

Not available

26

Gravely 00200836

1

$

$

Not available

26

Gravely 00200836

BRACKET, RESERVOIR MOUNT

$

$

Not available

27

Gravely TCA15373

1

$

$

Not available

27

Gravely TCA15373

RESERVOIR, HYD. S/O

$

$

Not available

28

Gravely TCA15122

1

$27.99

$

Usually ships in 4-12 days

0

28

Gravely TCA15122

CAP, FILLER OIL

$27.99

$

Usually ships in 4-12 days

0

29

Gravely 00415526

1

$

$

Not available

29

Gravely 00415526

FOAM, 1/8" X 3/4" O.C. NEOPRENE

$

$

Not available

30

Gravely 19M8008

2

$

$

Not available

30

Gravely 19M8008

BOLT, M8-1.25 X 35 HEX HEAD 10

$

$

Not available

31

Gravely 00191282

1

$79.99

$

Usually ships in 4-12 days

0

31

Gravely 00191282

ASSY, FUEL LINE W/ CHECK VALVES

$79.99

$

Usually ships in 4-12 days

0

32

Gravely 00130924

3
(Superseded to 03278800)

$1.49

$

In Stock, Qty 20+

0

32

Gravely 00130924

CLAMP, HOSE - 1/2" SPRING
(Superseded to 03278800)

$1.49

$

In Stock, Qty 20+

0

33

Gravely D28099

1

$148.99

$

Usually ships in 4-12 days

0

33

Gravely D28099

CABLE, RH BRAKE

$148.99

$

Usually ships in 4-12 days

0

34

Gravely D28100

1

$129.99

$

Usually ships in 4-12 days

0

34

Gravely D28100

CABLE, LH BRAKE

$129.99

$

Usually ships in 4-12 days

0

35

Gravely 00961553

4
(Superseded to 06538600)

$1.99

$

Usually ships in 4-12 days

0

35

Gravely 00961553

NUT, M8 X 1.25 HEX GR8.8 Y
(Superseded to 06538600)

$1.99

$

Usually ships in 4-12 days

0

36

Gravely D23062

2

$

$

Not available

36

Gravely D23062

BUSHING

$

$

Not available

37

Gravely D25014

1

$

$

Not available

37

Gravely D25014

WLDT, RETAINER BRAKE

$

$

Not available

38

Gravely 19M8319

3

$

$

Not available

38

Gravely 19M8319

SCREW, HEX, FL, JDS121, M8 X 1.25 X 50

$

$

Not available

39

Gravely 37M7059

4

$

$

Not available

39

Gravely 37M7059

SCREW, SELFT, FL, JDS145, M5 X .8 X 12

$

$

Not available

40

Gravely 00200326

1

$

$

Not available

40

Gravely 00200326

WLDT, BRAKE SWITCH BRACKET

$

$

Not available

41

Gravely AM103119

1
(Superseded to 02754100)

$9.49

$

In Stock, Qty 20+

0

41

Gravely AM103119

SWITCH, SEAT OVER RIDE (N.O.)
(Superseded to 02754100)

Note: (N.O.)

$9.49

$

In Stock, Qty 20+

0

42

Gravely D28019

1

$

$

Not available

42

Gravely D28019

LEVER, BRAKE

$

$

Not available

43

Gravely 03865251

2

$

$

Not available

43

Gravely 03865251

PLATE, COVER

$

$

Not available

44

Gravely 00967042

4

$

$

Not available

44

Gravely 00967042

SCREW 5/16 X .500 HEX SELF TAPPING Y

$

$

Not available

45

Gravely 03865151

1

$

$

Not available

45

Gravely 03865151

BRACKET, LH TANK

$

$

Not available

Gravely 03865051

1

$

$

Not available

Gravely 03865051

BRACKET, RH TANK

$

$

Not available

46

Gravely 06437500

8
(Superseded to 06401027)

$3.99

$

In Stock, only 3 left!

0

46

Gravely 06437500

WSHR-FL-STC .328 X1.00 X .094 YWZC REV
(Superseded to 06401027)

$3.99

$

In Stock, only 3 left!

0

47

Gravely 07049600

8

$2.99

$

In Stock, Qty 5

0

47

Gravely 07049600

BLT-SERHFWH .312-18 X .750 YWZC REV

$2.99

$

In Stock, Qty 5

0

48

Gravely 03877300

1

$

$

Not available

48

Gravely 03877300

FUEL TANK ASSY, LH

$

$

Not available

49

Gravely 03837400

1

$

$

Not available

49

Gravely 03837400

FUEL TANK ASSY, RH

$

$

Not available

50

Gravely 01614000

1

$

$

Not available

50

Gravely 01614000

TANK, FUEL LH

$

$

Not available

Gravely 01614100

1

$262.99

$

Usually ships in 4-12 days

0

Gravely 01614100

TANK, FUEL RH

$262.99

$

Usually ships in 4-12 days

0

51

Gravely 01538400

2

$15.99

$

In Stock, only 1 left!

0

51

Gravely 01538400

CAP, FUEL

$15.99

$

In Stock, only 1 left!

0

52

Gravely 01614451

2

$82.99

$

Usually ships in 4-12 days

0

52

Gravely 01614451

CONSOLE

$82.99

$

Usually ships in 4-12 days

0

53

Gravely 06400004

4

$2.49

$

In Stock, only 3 left!

0

53

Gravely 06400004

WASHER, FENDER .187 X .75

$2.49

$

In Stock, only 3 left!

0

54

Gravely 06100003

4

$1.99

$

In Stock, Qty 5

0

54

Gravely 06100003

SCREW, MACHINE 10-24 X .375

$1.99

$

In Stock, Qty 5

0

55

Gravely 01528500

2

$15.99

$

In Stock, only 2 left!

0

55

Gravely 01528500

CUPHOLDER

$15.99

$

In Stock, only 2 left!

0

56

Gravely E53830

1

$3.99

$

Usually ships in 4-12 days

0

56

Gravely E53830

P-CLIP, .750 INSULATED

$3.99

$

Usually ships in 4-12 days

0

57

Gravely 00111886

1
(Superseded to 06900512)

$

$

Not available

57

Gravely 00111886

P-CLIP, .500 INSULATED
(Superseded to 06900512)

$

$

Not available

58

Gravely 14M7517

2

$

$

Not available

58

Gravely 14M7517

LOCKNUT, DIN6924, M10 X 1.5-10-ZN

$

$

Not available

59

Gravely 00960023

1

$

$

Not available

59

Gravely 00960023

BOLT, 5/16-18 X 1.00 HEX 5 Y

$

$

Not available

60

Gravely H137328

3

$

$

Not available

60

Gravely H137328

LOCKNUT, M8 X 1.25, FLANGED ZN

$

$

Not available

61

Gravely D18023

1

$

$

Not available

61

Gravely D18023

DECAL, HYDRO OIL SPECS

$

$

Not available
