992409 - EverRide Fury ZT Zero-Turn Mower (SN: 000101 & Above) Relays and Seat Harness Parts Diagram

Fury ZT Zero-Turn Mower

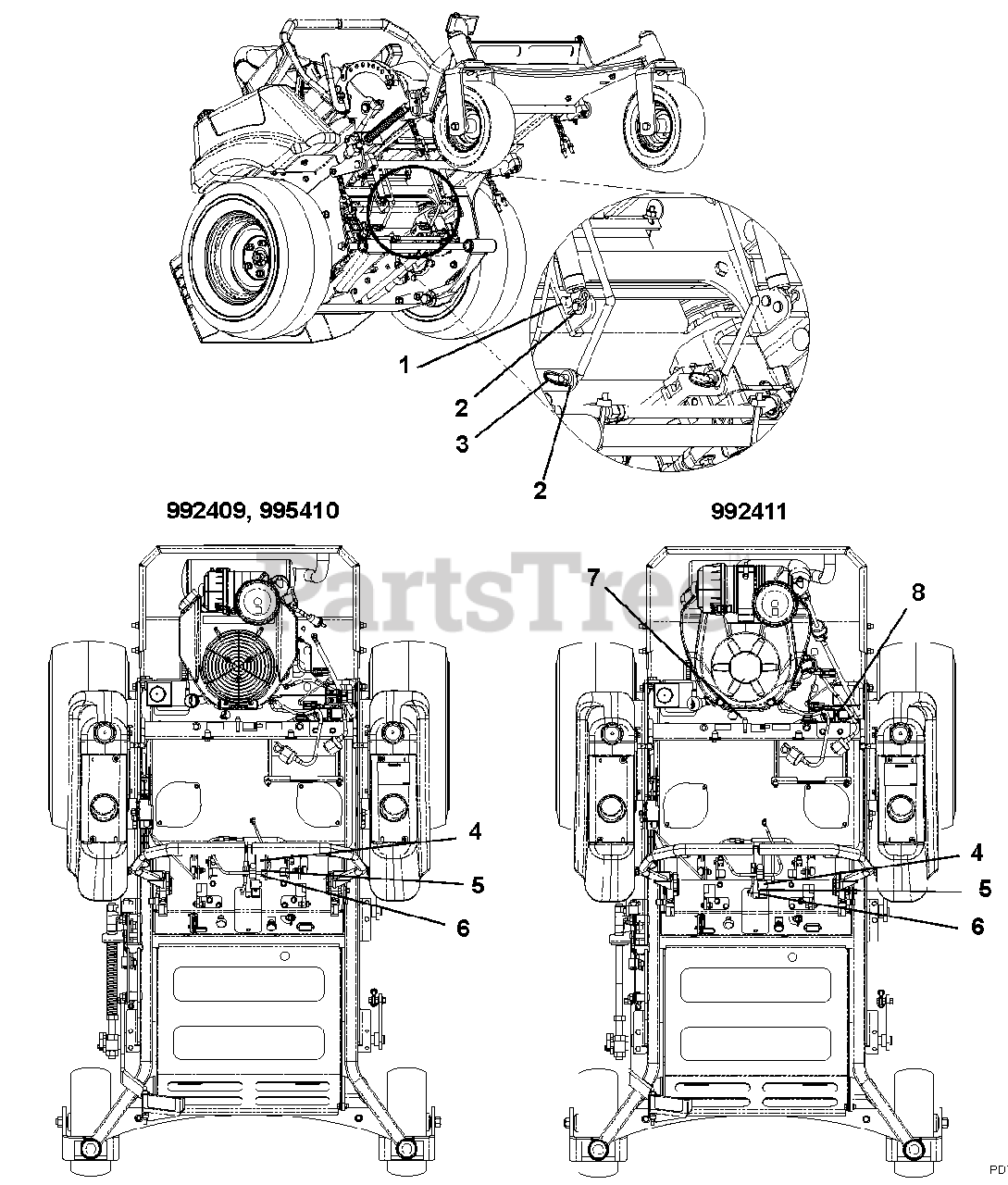

Relays and Seat Harness Parts Diagram

  • Title
1

Gravely J16931

PIN, HAIR .094 X 1.53 5/16-1/2 Y

$

$

Not available

$

$

Not available

2

Gravely 24M7106

WASHER, ISO8738, 10-160HV-ZN

$

$

Not available

$

$

Not available

3

Gravely M88183

RING, RETAINING

$

$

Not available

$

$

Not available

4

Gravely 00200302

HARNESS, SEAT RELAY

$

$

Not available

$

$

Not available

5

Gravely 00963101

SCREW, 12-24 SELF DRILLING

$

$

Not available

$

$

Not available

6

Gravely 00102770

RELAY, ISO MINI ELEC.

$21.99

$

Usually ships in 4-12 days

0

$21.99

$

Usually ships in 4-12 days

0

7

Gravely 00967001

CABLE TIE, .31 X 14.6 - BLACK

$

$

Not available

$

$

Not available

8

Gravely AM123716

RELAY, SEALED W/ BRACKET

$35.99

$

Usually ships in 4-12 days

0

$35.99

$

Usually ships in 4-12 days

0
