992408 - EverRide Warrior 66" ZT Zero-Turn Mower (SN: 000101 & Above) Engine and Exhaust Parts Diagram

Warrior 66" ZT Zero-Turn Mower

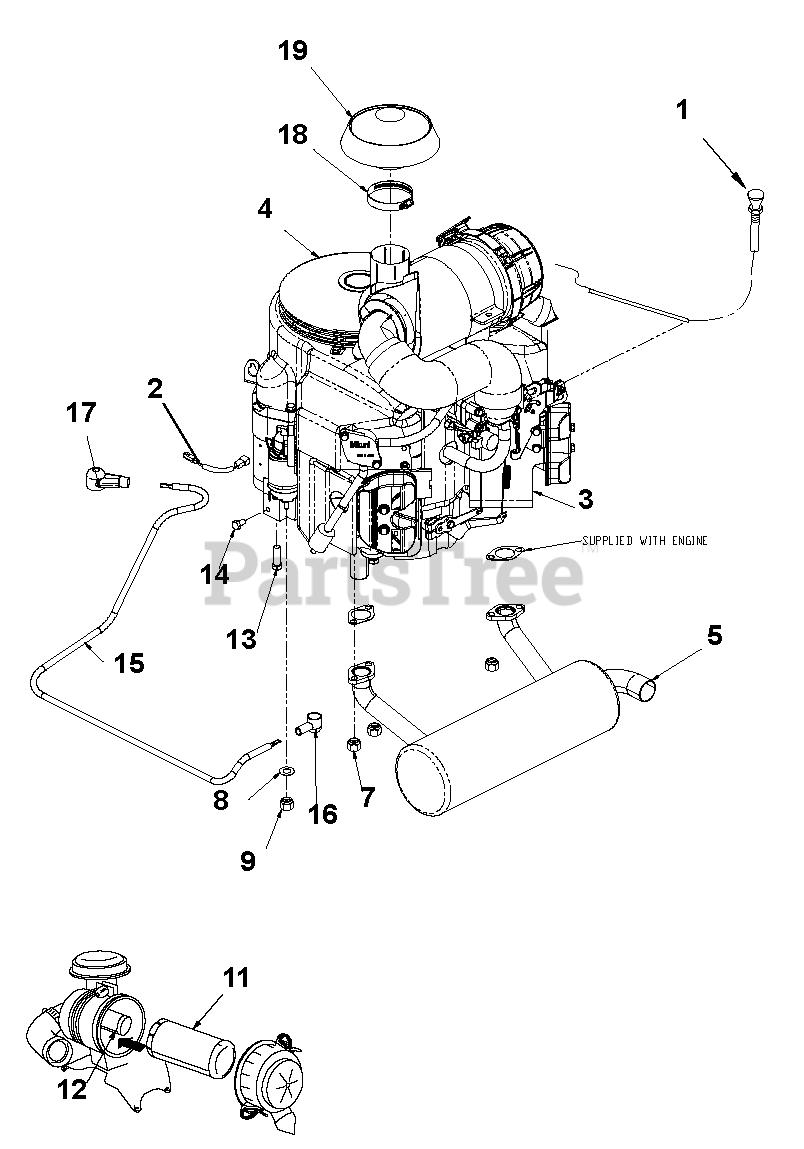

Engine and Exhaust Parts Diagram

  • Title

1

Gravely 00180273

Cable, Choke 48"

$55.99

$

In Stock, only 2 left!

0

2

Gravely 03286700

Lead, Starter Solenoid

$9.49

$

Usually ships in 4-12 days

0

3

Gravely 21535800

Oil Filter
(Superseded to 49065-0724)

$18.99

$

In Stock, Qty 20+

0

4

Gravely 08200327

Engine, Kawasaki 27 HP (992406, 407)

Note: (992406, 407)

$

$

Not available

Gravely 08200328

Engine, Kawasaki 31 HP (992408)

Note: (992408)

$

$

Not available

5

Gravely 01057000

Muffler, Kawasaki Horizontal

$252.99

$

Usually ships in 4-12 days

0

6

Gravely 03798600

Wire Harness, Kawasaki (Not Shown)

Note: (Not Shown)

$

$

Not available

7

Gravely 00964021

Locknut, 5/16-18 Crown
(Superseded to 06530800)

$5.99

$

Usually ships in 4-12 days

0

8

Gravely 00961603

Washer, M8 Spring Lock
(Superseded to 06318200)

$0.99

$

Usually ships in 4-12 days

0

9

Gravely 00961553

Nut, M8 x 1.25 Hex GR8.8
(Superseded to 06538600)

$1.99

$

Usually ships in 4-12 days

0

10

Gravely 21536100

Spark Plug (not illustrated)

Note: (not illustrated)

$3.99

$

In Stock, Qty 20+

0

11

Gravely 21545400

Filter, Outer Air

$36.99

$

In Stock, Qty 20+

0

12

Gravely 21545300

Filter, Inner Air

$48.99

$

In Stock, Qty 11

0

13

Gravely 05900125

Bolt, Hex .38-16 x 1.25 FTHG5
(Superseded to 05901507)

$2.49

$

In Stock, only 3 left!

0

14

Gravely 00961281

Bolt, M8 x 1.25 x 14 Hex 8.8
(Superseded to 05970001)

$3.99

$

Usually ships in 4-12 days

0

15

Gravely 03821000

Cable, Battery- 42" Positive

$

$

Not available

16

Gravely 07533200

Boot, Eyelet Terminal

$3.49

$

In Stock, only 2 left!

0

17

Gravely 00525800

Battery Terminal Boot, Red

$7.99

$

Usually ships in 4-12 days

0

18

Gravely 06900339

Clamp, Hose 2.75 Diameter Worm

$11.99

$

Usually ships in 4-12 days

0

19

Gravely 03820900

Rain Cap, Air Cleaner

$77.99

$

In Stock, only 2 left!

0

Gravely 09408700

Cap, 2" Air Cleaner Intake

$56.99

$

In Stock, only 1 left!

0
