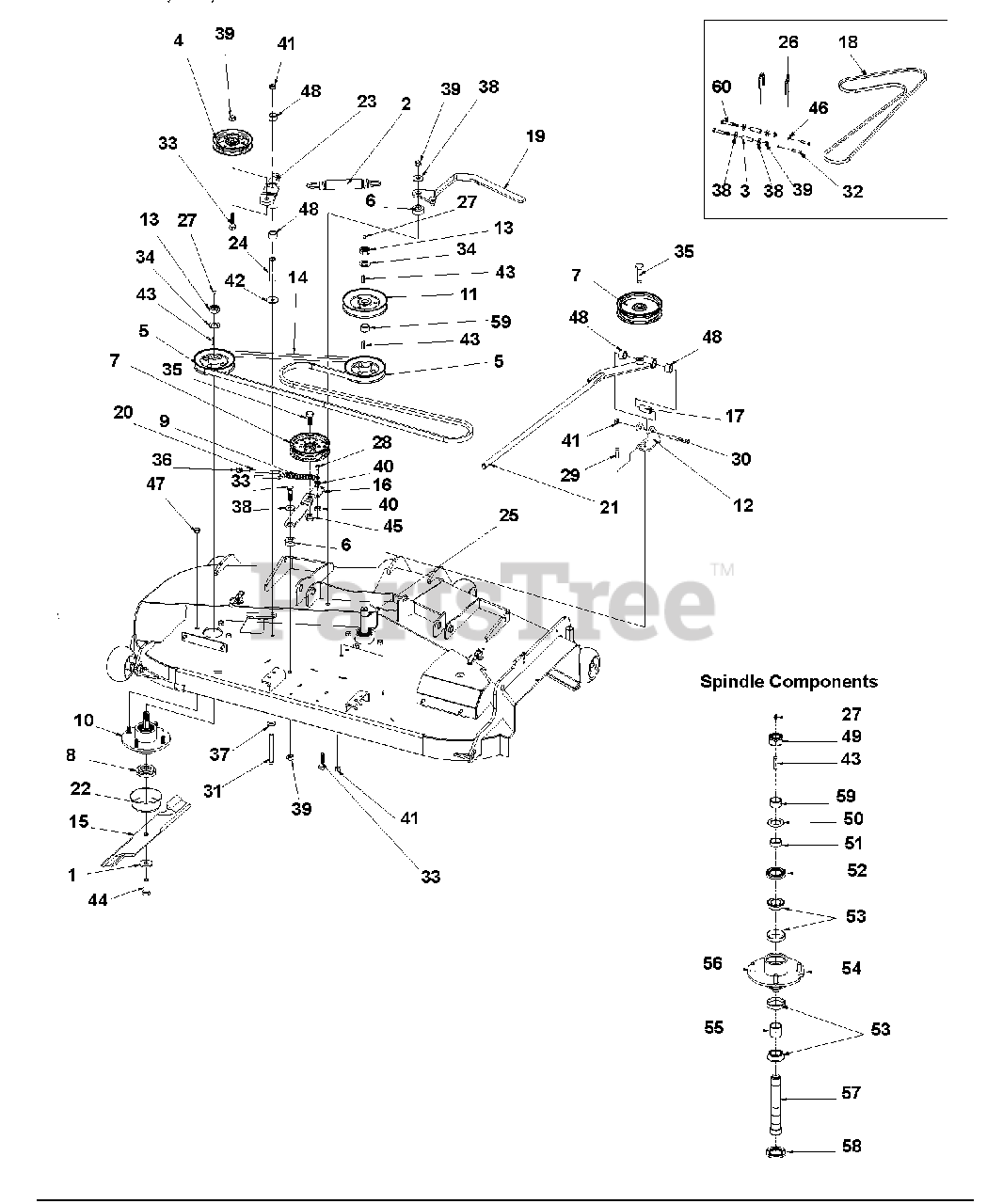

992408 - EverRide Warrior 66" ZT Zero-Turn Mower (SN: 000101 & Above) Belts, Idlers, and Blades Parts Diagram

Warrior 66" ZT Zero-Turn Mower

Belts, Idlers, and Blades Parts Diagram

  • Title

1

Gravely 00103906

Washer, M14 x M40 x M4.5 FLAT

$9.49

$

Usually ships in 4-12 days

0

2

Gravely 00104657

Spring, EXT 1.18 x .177 x 7.50

$28.99

$

In Stock, only 2 left!

0

3

Gravely 03856600

Tube, RD .750 x .125W x 2.469

$18.99

$

Usually ships in 4-12 days

0

4

Gravely 00112614

Pulley, V-Belt 5.00 x .510

$71.99

$

In Stock, only 1 left!

0

5

Gravely 07300011

Sheave, 5.00 Spindle (1.00ID)
(Superseded to 07331167)

Note: (1.00ID)

$76.99

$

In Stock, only 1 left!

0

6

Gravely AA160100

Spacer, Ø.516 x Ø1.50 x .853

$9.99

$

In Stock, only 3 left!

0

7

Gravely 00162146

Pulley, Flat 5.00 x .635 W/BRG

$75.99

$

Usually ships in 4-12 days

0

8

Gravely 00162779

Spacer, Blade

$35.99

$

In Stock, only 1 left!

0

9

Gravely 00162801

Spring, EXT .750 x .125 x 4.50

$29.99

$

Usually ships in 4-12 days

0

10

Gravely 00181917

Assembly, Spindle 1" SHORT Shaft (includes items 27, 43 and 49 - 59)

Note: (includes items 27, 43 and 49 - 59)

$426.99

$

Usually ships in 4-12 days

0

11

Gravely 00181823

Pulley, V-Belt 6.75 x 1.0 W/Keyway (992407)

Note: (992407)

$84.99

$

In Stock, only 1 left!

0

Gravely 00181911

Pulley, V-Belt 7.21 x 1.0 W/Keyway (992408)

Note: (992408)

$

$

Not available

Gravely 07300534

Pulley, V-Belt 6.00 x 1.0 W/Keyway (992406)

Note: (992406)

$79.99

$

Usually ships in 4-12 days

0

12

Gravely 03823051

Plate, Pivot Anchor Bent

$51.99

$

Usually ships in 4-12 days

0

13

Gravely 00964024

Locknut, 3/4-16
(Superseded to 06500031)

$3.99

$

Usually ships in 4-12 days

0

14

Gravely 00112616

Belt, B123 - 60" Deck (992407)

Note: (992407)

$60.99

$

Usually ships in 4-12 days

0

Gravely 00181711

Belt, 131.0 EL ARAMID -66" Deck (992408)

Note: (992408)

$93.99

$

In Stock, only 2 left!

0

Gravely 00181036

Belt, B112 - 54" Deck (992406)

Note: (992406)

$52.99

$

In Stock, only 3 left!

0

15

Gravely 00181026

Blade, 20.940 LO-LIFT - 60" Deck (992407)

Note: (992407)

$30.99

$

In Stock, Qty 20+

0

Gravely 00181940

Blade, 23.0 Lift - 66" Deck (992408)

Note: (992408)

$36.99

$

In Stock, only 3 left!

0

Gravely 00181042

Blade, 19.0 - 54" Deck (992406)

Note: (992406)

$31.99

$

In Stock, only 3 left!

0

16

Gravely 03799551

Arm, Belt Tensioner

$41.99

$

In Stock, only 1 left!

0

17

Gravely 00181062

Spanner

$42.99

$

Usually ships in 4-12 days

0

18

Gravely 00181715

Belt, HB114.9 EL

$80.99

$

Usually ships in 4-12 days

0

19

Gravely 03799351

Weldment, Tension Arm

$48.99

$

Usually ships in 4-12 days

0

20

Gravely 00181194

U-Bolt, Round .63 x 4.50 x 3/8-16

$6.99

$

Usually ships in 4-12 days

0

21

Gravely 03853600

Weldment, Offset Arm w/Bushings (includes item 48)

Note: (includes item 48)

$142.99

$

Usually ships in 4-12 days

0

22

Gravely 00181288

Cap, Spindle

$19.99

$

In Stock, only 1 left!

0

23

Gravely 03853500

Weldment, Deck Idler Arm w/Bushings (includes item 48)

Note: (includes item 48)

$113.99

$

In Stock, only 1 left!

0

24

Gravely 00191347

Tube, Ø.750 x Ø.438 x 3.047

$14.99

$

In Stock, only 1 left!

0

25

Gravely 00181910

Assembly, Spindle 1" Long Shaft (includes items 27, 43 and 49 - 59)

Note: (includes items 27, 43 and 49 - 59)

$426.99

$

In Stock, only 2 left!

0

26

Gravely 00181485

U-Bolt, Round 1.00 x 3.00 x 3/8-16

$11.99

$

Usually ships in 4-12 days

0

27

Gravely 00959995

Fitting, 1/4-28 STRGT Grease Zerk

$3.49

$

Usually ships in 4-12 days

0

28

Gravely 00960024

Bolt, 5/16-18 x 1.25 Hex 5
(Superseded to 05947500)

$2.49

$

In Stock, Qty 11

0

29

Gravely 00960046

Bolt, 3/8-16 x 1.00 Hex 5
(Superseded to 05948700)

$1.49

$

In Stock, Qty 20+

0

30

Gravely 00960052

Bolt, 3/8-16 x 2.50 Hex 5

$

$

Not available

31

Gravely 00960059

Bolt, 3/8-16 x 4.00 Hex 5
(Superseded to 05981900)

$4.49

$

Usually ships in 4-12 days

0

32

Gravely 00960082

Bolt, 7/16-14 x 1.75 Hex 5
(Superseded to 05982100)

$3.49

$

Usually ships in 4-12 days

0

33

Gravely 00960115

Bolt, 1/2-13 x 1.75 Hex 5
(Superseded to 05970600)

$3.99

$

In Stock, only 2 left!

0

34

Gravely 00960711

Washer, 1.062 x 1.75 x 0.100

$3.49

$

In Stock, only 1 left!

0

35

Gravely 00960155

Bolt, 5/8-11 x 1.50 Hex 5
(Superseded to 05968700)

$3.99

$

In Stock, only 3 left!

0

36

Gravely 00960502

Nut, 3/8-16 STD Hex GR5

$

$

Not available

37

Gravely 00960702

Washer, .375 REG Flat
(Superseded to 06435900)

$1.49

$

In Stock, Qty 20+

0

38

Gravely 00960704

Washer, .500 REG Flat
(Superseded to 06442000)

$2.49

$

In Stock, only 1 left!

0

39

Gravely AA964000

Locknut, 1/2-13 Crown
(Superseded to 06528200)

$3.99

$

In Stock, only 3 left!

0

40

Gravely 00964019

Locknut, 5/16-18 Whiz
(Superseded to 06530400)

$1.49

$

In Stock, Qty 20+

0

41

Gravely 00964022

Locknut, 3/8-16 Crown

$

$

Not available

42

Gravely 00964502

Washer, .375 x 1.50 x .O63 Flat
(Superseded to 06439300)

$3.49

$

In Stock, Qty 20+

0

43

Gravely 00966045

Key, .250 x .250 x 1.00 SQ

$2.99

$

In Stock, only 1 left!

0

44

Gravely 00967187

Bolt, 9/16-12 x 1.75 Hex 8
(Superseded to 05985600)

$5.99

$

Usually ships in 4-12 days

0

45

Gravely 00967324

Locknut, 5/8-11 Whiz
(Superseded to 06500509)

$3.99

$

In Stock, only 3 left!

0

46

Gravely 00967342

Locknut, 7/16-14 Whiz
(Superseded to 06530004)

$2.49

$

Usually ships in 4-12 days

0

47

Gravely 00964005

Nut, 7/16-20 Hex
(Superseded to 06500434)

$3.99

$

Usually ships in 4-12 days

0

48

Gravely 00105546

Bearing, Sleeve .753 x .878 x .750

$6.99

$

In Stock, only 4 left!

0

49

Gravely 00181818

Locknut, 1"

$

$

Not available

50

Gravely 00960711

Washer, 1.062 x 1.75 x 0.100

$3.49

$

In Stock, only 1 left!

0

51

Gravely 00145557

Spacer, Seal

$9.99

$

In Stock, only 1 left!

0

52

Gravely AA145551

Seal, Upper

$8.99

$

In Stock, only 2 left!

0

53

Gravely 00145555

Bearing Assembly, 1IN Diameter Spindle

$25.99

$

In Stock, Qty 20+

0

54

Gravely 03820551

Casting, Mower Spindle 3.31 LG

$

$

Not available

55

Gravely 00160116

Pre-Load Spacer, .606

$21.99

$

Usually ships in 4-12 days

0

56

Gravely 00145561

Stud, Special 7/16-20

$14.99

$

Usually ships in 4-12 days

0

57

Gravely 00180334

Shaft, Spindle - Outside Spindles

$142.99

$

In Stock, only 1 left!

0

Gravely 00180857

Shaft, Spindle - Center Spindle

$109.99

$

Usually ships in 4-12 days

0

58

Gravely 00145552

Seal, Lower

$10.99

$

In Stock, only 3 left!

0

59

Gravely 00181822

Spacer, 1.01 x 1.25 x .635

$

$

Not available

60

Gravely 00960122

Bolt, .50-13 x 3.50 Hex 5
(Superseded to 05965800)

$4.99

$

In Stock, only 2 left!

0

61

Gravely 03876800

Spindle Bearing Kit (Contains items 52, 53, 55 and 58)

Note: (Contains items 52, 53, 55 and 58)

$142.99

$

Usually ships in 4-12 days

0
