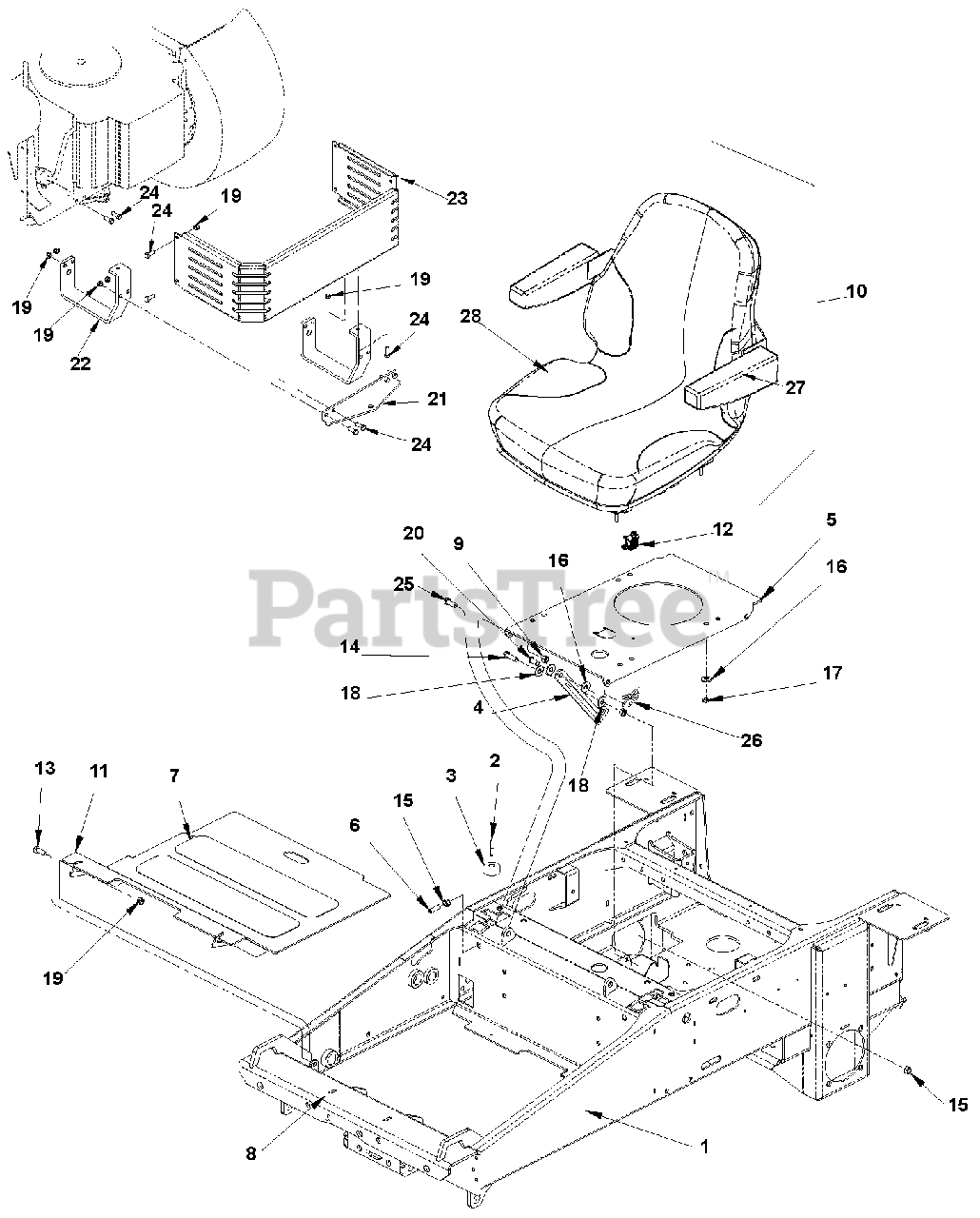

992407 - EverRide Warrior 60" ZT Zero-Turn Mower (SN: 000101 & Above) Seat and Foot Plate Parts Diagram

Warrior 60" ZT Zero-Turn Mower

Seat and Foot Plate Parts Diagram

  • Title

1

Gravely 03844500

Weldment, Unibody Frame w/Decals

$

$

Not available

2

Gravely AA968100

Rivet, 3/16 x .500 Pop

$

$

Not available

3

Gravely 00180390

Bumper, Rubber .625 x 1.50 DIA

$4.49

$

Usually ships in 4-12 days

0

4

Gravely 00180391

Bar - Seat Lock

$

$

Not available

5

Gravely 03817461

Plate, Seat

$

$

Not available

6

Gravely 00962903

Set Screw, 3/8-16 x 3/4 ALHD CUP
(Superseded to 06006002)

$3.99

$

Usually ships in 4-12 days

0

7

Gravely 00180658

Traction Tape, 4 x 18

$26.99

$

Usually ships in 4-12 days

0

8

Gravely 00180659

Traction Tape, 2.5 x 21.5

$

$

Not available

9

Gravely 00964022

Locknut, 3/8-16 Crown

$

$

Not available

10

Gravely 00180916

Seat, Full Suspension (Includes items 12, and 27 - 31)

Note: (Includes items 12, and 27 - 31)

$

$

Not available

11

Gravely 03817361

Foot Plate

$

$

Not available

12

Gravely 00181074

Seat Switch S/O

$

$

Not available

13

Gravely 00960046

Bolt, 3/8-16 x 1.00 Hex 5
(Superseded to 05948700)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 00960047

Bolt, 3/8-16 x 1.25 Hex 5
(Superseded to 05958000)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 00960502

Nut, 3/8-16 STD Hex Grade 5

$

$

Not available

16

Gravely 00960701

Washer, .313 Reg. Flat
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 00964021

Locknut, 5/16-18 Crown
(Superseded to 06530800)

$5.99

$

Usually ships in 4-12 days

0

18

Gravely 00960702

Washer, .375 Reg Flat
(Superseded to 06435900)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 00964022

Locknut, 3/8-16 Crown

$

$

Not available

20

Gravely 00967176

Pin, Clevis .375 x .750 x .516
(Superseded to 06814800)

$3.99

$

In Stock, only 4 left!

0

21

Gravely 03817261

Plate, Hitch

$

$

Not available

22

Gravely 03771861

Arm, Hitch Support

$

$

Not available

23

Gravely 03844661

Bumper Plate

$

$

Not available

24

Gravely 00960046

Bolt, 3/8-16 X 1.00 Hex 5
(Superseded to 05948700)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 00135139

Bolt, 1/2 x 1.06 x 3/8-16
(Superseded to 07070119)

$3.99

$

Usually ships in 4-12 days

0

26

Gravely 00967353

Ring, Rue

$2.49

$

Usually ships in 4-12 days

0

27

Gravely 00181461

Kit, Armrest Assembly

$

$

Not available

28

Gravely 00181814

Kit, EverRide Cushion

$

$

Not available

29

Gravely 00181813

Kit, Spring Cable (Not Shown)

Note: (Not Shown)

$

$

Not available

30

Gravely 00181811

Kit, Roller Bumper (Not Shown)

Note: (Not Shown)

$

$

Not available

31

Gravely 00181812

Kit, Damper (Not Shown)

Note: (Not Shown)

$

$

Not available
