992406 - EverRide Warrior 54" ZT Zero-Turn Mower (SN: 000101 & Above) Steering Controls and Fuel Tank Parts Diagram

Warrior 54" ZT Zero-Turn Mower

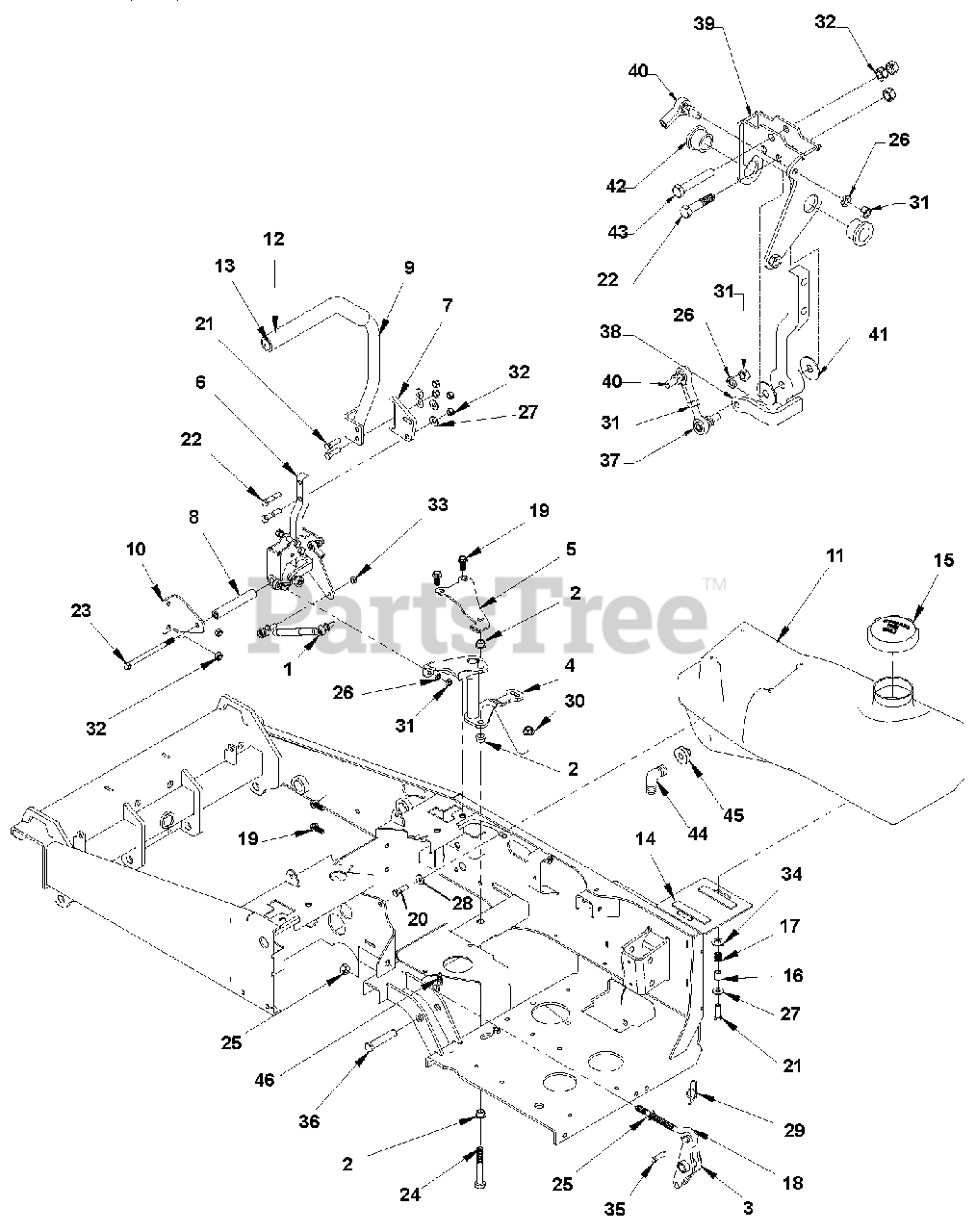

Steering Controls and Fuel Tank Parts Diagram

  • Title

1

Gravely 00180231

Dampner, Steering Control

$

$

Not available

2

Gravely 00180354

Bearing Shield 1/2"

$5.99

$

Usually ships in 4-12 days

0

3

Gravely 03814551

Spring Pivot Weldment

$47.99

$

Usually ships in 4-12 days

0

4

Gravely 03833751

Park Brake Control Arm RH

$93.99

$

Usually ships in 4-12 days

0

Gravely 03833951

Park Brake Control Arm LH

$93.99

$

Usually ships in 4-12 days

0

5

Gravely 03818951

Ear, RH Brake Pivot

$

$

Not available

Gravely 03819051

Ear, LH Brake Pivot

$

$

Not available

6

Gravely 03816151

Handle Assembly RH

$170.99

$

Usually ships in 4-12 days

0

Gravely 03816351

Handle Assembly LH

$178.99

$

Usually ships in 4-12 days

0

7

Gravely 03818251

Handle Height Plate

$

$

Not available

8

Gravely 00180543

Tube, Round .750 x .179 x 4.69

$

$

Not available

9

Gravely 00181349

Weldment, RH Steering Handle

$

$

Not available

Gravely 00181350

Weldment, LH Steering Handle

$

$

Not available

10

Gravely 03819200

Plate, Bent

$

$

Not available

11

Gravely 00181420

Fuel Tank, RH S/O w/Fittings (Includes items 15, 44, 45)

Note: (Includes items 15, 44, 45)

$

$

Not available

Gravely 00181419

Fuel Tank, LH S/O w/Fittings (Includes items 15, 44, 45)

Note: (Includes items 15, 44, 45)

$

$

Not available

12

Gravely 00180617

Grip, Foam

$37.99

$

In Stock, only 2 left!

0

13

Gravely 00180639

Plug, 7/8" End

$

$

Not available

14

Gravely 00180897

Foam, 1/8 X 3/4 X 4.0 Long

$

$

Not available

15

Gravely 00181251

Cap, Unleaded Fuel

$23.99

$

In Stock, only 1 left!

0

16

Gravely 03821551

Spacer, Gas Tank Attachment

$

$

Not available

17

Gravely 00181027

Spring, COM .660 X .067 X .625

$5.99

$

Usually ships in 4-12 days

0

18

Gravely 00250356

Eyebolt - .5 X 6.9

$

$

Not available

19

Gravely 00960044

Bolt, 3/8-16 X 1.00 FGH 8

$2.49

$

Usually ships in 4-12 days

0

20

Gravely 00960045

Bolt, 3/8-16 X .750 Hex 5
(Superseded to 05959400)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 00960047

Bolt, 3/8-16 X 1.25 Hex Grade 5
(Superseded to 05958000)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 00960049

Bolt, 3/8-16 X 1.75 Hex 5
(Superseded to 05958500)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 00960063

Bolt, 3/8-16 X 5.50 Hex 5
(Superseded to 05982000)

$3.99

$

In Stock, only 2 left!

0

24

Gravely 00960119

Bolt 1/2-13 X 2.75 G5
(Superseded to 05965500)

$4.99

$

Usually ships in 4-12 days

0

25

Gravely 00960504

Nut, 1/2-13 STD Hex GR5
(Superseded to 06537300)

$3.99

$

Usually ships in 4-12 days

0

26

Gravely AA960601

Washer, .313 MED Spring Lock
(Superseded to 06308600)

$0.99

$

In Stock, Qty 20+

0

27

Gravely 00960701

Washer, .313 Reg Flat
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

28

Gravely 00960702

Washer, .375 Reg Flat
(Superseded to 06435900)

$1.49

$

In Stock, Qty 20+

0

29

Gravely 00967353

Ring, Rue .375 x .054 x 1.254

$2.49

$

Usually ships in 4-12 days

0

30

Gravely AA964000

Locknut, 1/2-13 Crown
(Superseded to 06528200)

$3.99

$

In Stock, only 3 left!

0

31

Gravely 00964003

Nut, 5/16-24 STD Hex GR5

$

$

Not available

32

Gravely 00964022

Locknut, 3/8-16 Crown

$

$

Not available

33

Gravely 00964047

Locknut, M8-1.25 Crown
(Superseded to 06549300)

$2.49

$

Usually ships in 4-12 days

0

34

Gravely 00964505

Washer, .500 X 1.00 X .105 FLAT
(Superseded to 06441900)

$0.99

$

In Stock, Qty 20+

0

35

Gravely 00967013

Pin, CVS .375 X 1.38 X 1.14
(Superseded to 06820300)

$

$

Not available

36

Gravely 00967249

Pin, CVS .625 X 3.00 X 2.77
(Superseded to 06823200)

$5.99

$

Usually ships in 4-12 days

0

37

Gravely 00180249

Ball Joint RH 5/16 Male W/ STD

$

$

Not available

38

Gravely 03816151

Bar Weldment RH Steering

$170.99

$

Usually ships in 4-12 days

0

Gravely 03816351

Bar Weldment LH Steering

$178.99

$

Usually ships in 4-12 days

0

39

Gravely 03816251

Handle Control Weldment, RH

$

$

Not available

Gravely 03816451

Handle Control Weldment, LH

$

$

Not available

40

Gravely 00180606

Ball Joint, RH 5/16 Female W/STD

$

$

Not available

41

Gravely 00180961

Nylon Washer, 1.27OD x .400 ID

$1.99

$

Usually ships in 4-12 days

0

42

Gravely 00252126

Bushing, .750 x 1.00 x .750

$

$

Not available

43

Gravely 00960051

Bolt, 3/8-16 x 2.25 Hex 5
(Superseded to 05962900)

$3.99

$

In Stock, Qty 20+

0

44

Gravely 00191605

Fitting, 90 1/4 Hose x 1/2 Hose S/O

$10.99

$

In Stock, only 1 left!

0

45

Gravely 00181208

Grommet, Rubber
(Superseded to 00387300)

$9.49

$

In Stock, Qty 20+

0

46

Gravely 00967356

Ring, Rue .625 x .072 x 1.690

$3.49

$

Usually ships in 4-12 days

0
