992406 - EverRide Warrior 54" ZT Zero-Turn Mower (SN: 000101 & Above) Pump Parts Diagram

Warrior 54" ZT Zero-Turn Mower

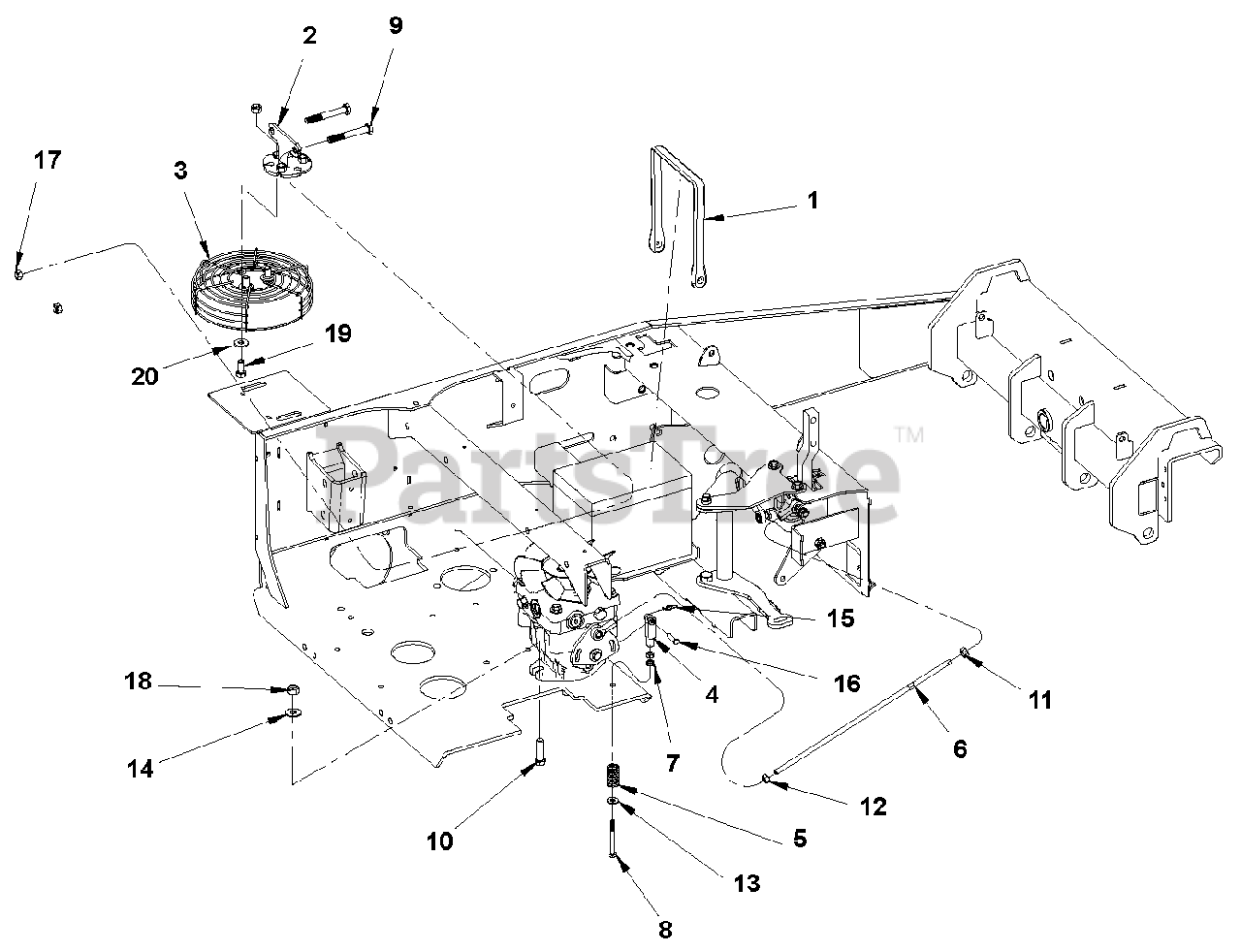

Pump Parts Diagram

  • Title

1

Gravely 00181228

Band, 18"

$

$

Not available

2

Gravely 03799751

WLDT, FAN SHIELD MOUNTING

$

$

Not available

3

Gravely 00181341

Grill, 7" Fan

$35.99

$

Usually ships in 4-12 days

0

4

Gravely 00180956

Yoke, 1/4-20 RH Adjustable

$

$

Not available

5

Gravely 00180957

Spring, Compression .784 x .092 x 1.50

$3.49

$

Usually ships in 4-12 days

0

6

Gravely 00180967

Pump Control Rod

$

$

Not available

7

Gravely 00964048

Locknut, 1/4-20 Nyloc

$

$

Not available

8

Gravely 00967393

Bolt, 1/4-20 x 2.75 SOC 8

$3.49

$

Usually ships in 4-12 days

0

9

Gravely 00960053

Bolt, 3/8-16 x 2.75 Hex 5
(Superseded to 05961400)

$3.99

$

In Stock, only 4 left!

0

10

Gravely 00960081

Bolt, 7/16-14 x 1.50 Hex Grade 5
(Superseded to 05962800)

$3.49

$

In Stock, Qty 11

0

11

Gravely 00964003

Nut, 5/16-24 STD Hex Grade 5

$

$

Not available

12

Gravely 00967338

Nut, 5/16-24 Hex Grade 5 LH
(Superseded to 06547200)

$3.99

$

Usually ships in 4-12 days

0

13

Gravely AA960700

Washer, .250 Reg Flat
(Superseded to 06435800)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 00960702

Washer, .375 Reg Flat
(Superseded to 06435900)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 00967350

Ring, Rue .250 x .041 x .844

$

$

Not available

16

Gravely AA962200

Pin, CVS .250 x 1.00 x .859
(Superseded to 06818500)

$3.99

$

Usually ships in 4-12 days

0

17

Gravely 00964022

Locknut, 3/8-16 Crown

$

$

Not available

18

Gravely 00964025

Locknut, 7/16-14 Crown
(Superseded to 06508200)

$3.99

$

Usually ships in 4-12 days

0

19

Gravely 00960045

Bolt, 3/8-16 x .750 Hex
(Superseded to 05959400)

$1.49

$

In Stock, Qty 17

0

20

Gravely 00960701

Washer, .313 Reg Flat
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0
