992327 (Pro-Turn 272) - Gravely Pro-Turn 72" Zero-Turn Mower, Kawasaki FX (SN: 040000 & Above) Seat Parts Diagram

Pro-Turn 72" Zero-Turn Mower, Kawasaki FX

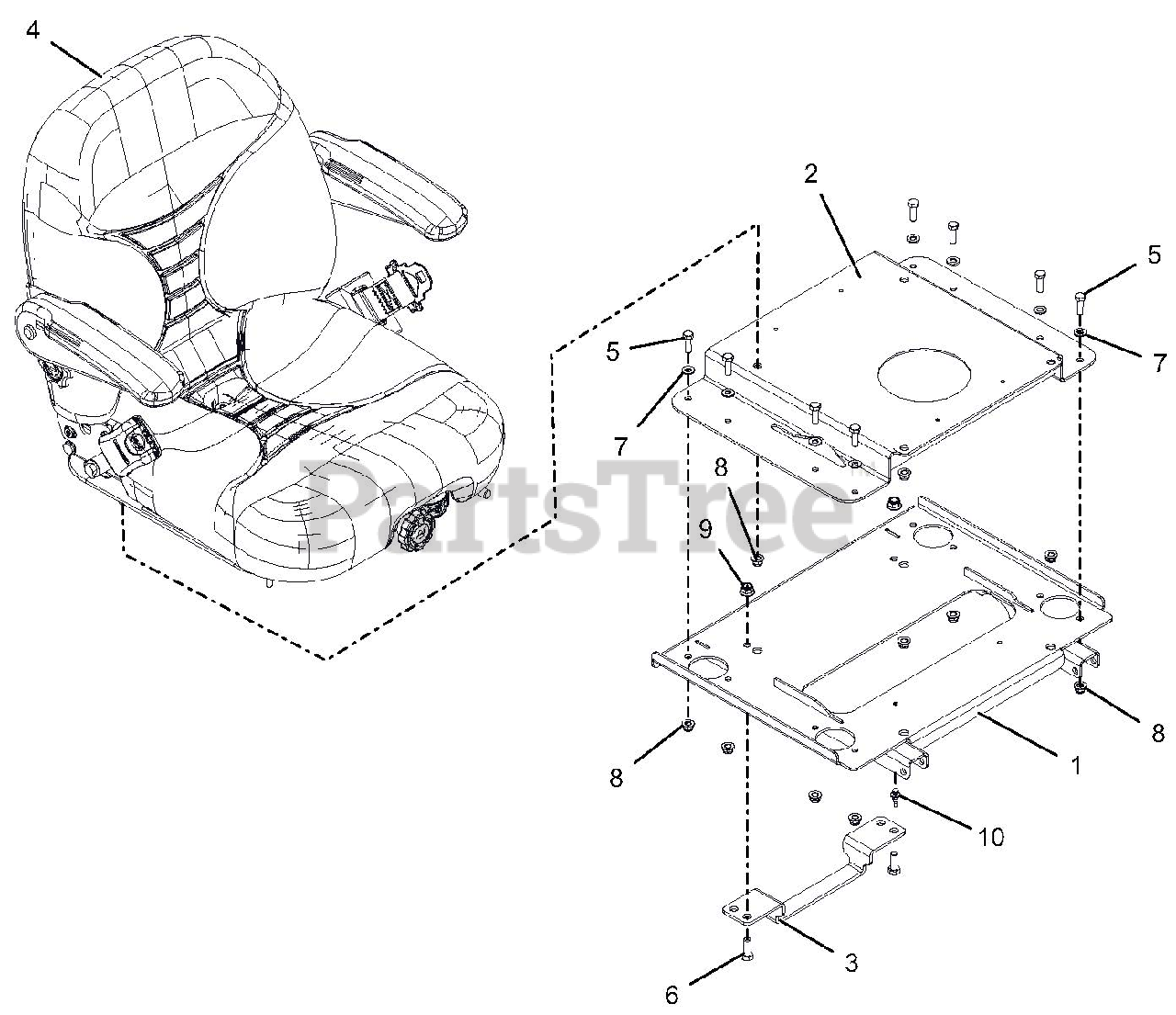

Seat Parts Diagram

  • Title
1

Gravely 04383953

WLDMT, SEAT ISO MOUNTING-RED

$

$

Not available

2

Gravely 04671153

SEAT BASE MOUNTING WLDM - RED
(Superseded to 05254653)

$219.99

$

In Stock, only 1 left!

0

3

Gravely 03991551

BRACKET - SEAT LATCH

$

$

Not available

4

Gravely 04052900

SEAT,SUSP,W/SEAT BELT,LT GRY
(Superseded to 09680600)

$930.99

$

In Stock, only 1 left!

0

5

Gravely 05946900

@BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 07500040

CABLE TIE W/ TREE (.25 HOLE)

$3.99

$

In Stock, only 1 left!

0
