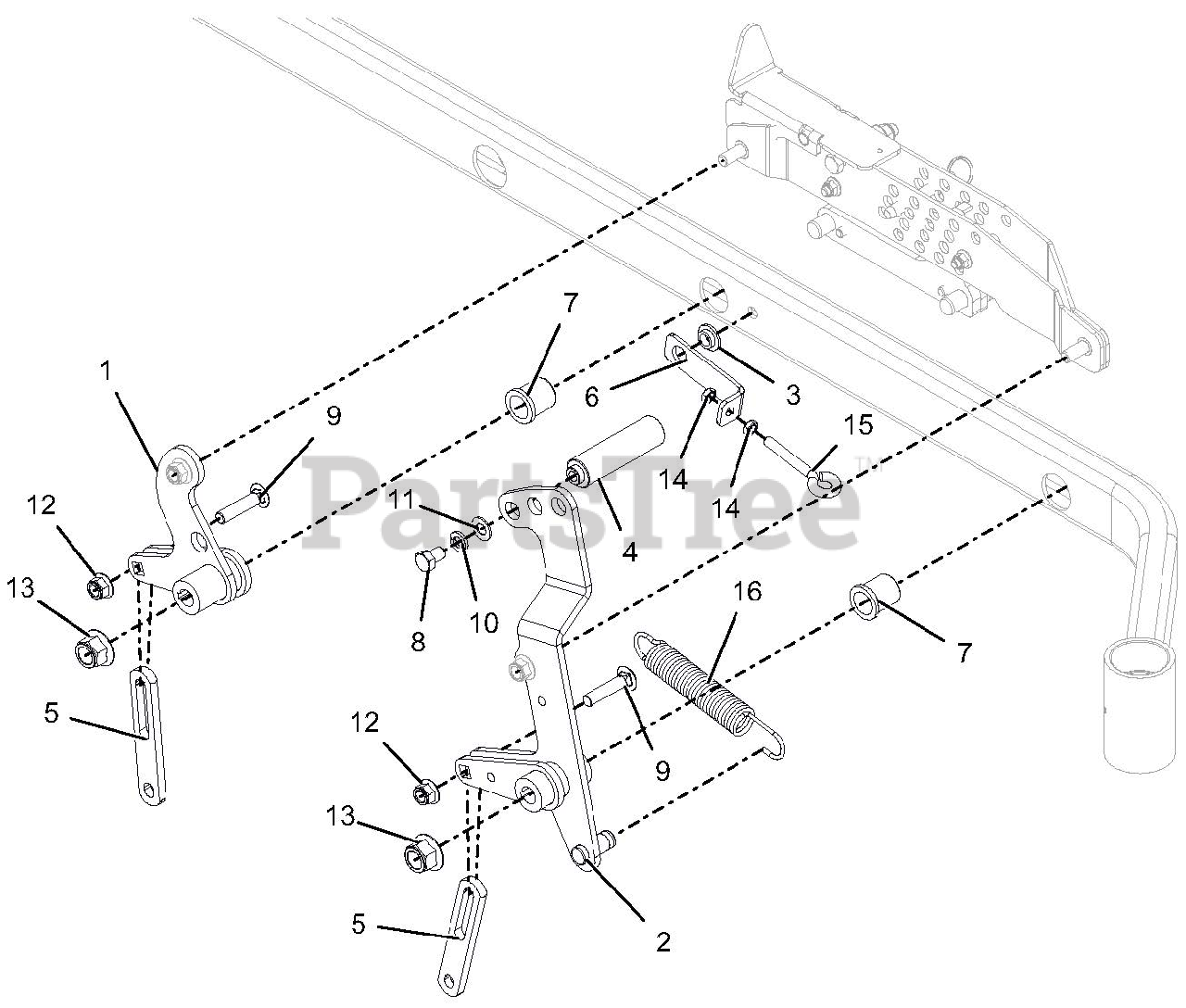

992327 (Pro-Turn 272) - Gravely Pro-Turn 72" Zero-Turn Mower, Kawasaki FX (SN: 040000 & Above) Deck Lift - Right Hand Parts Diagram

Pro-Turn 72" Zero-Turn Mower, Kawasaki FX

Deck Lift - Right Hand Parts Diagram

  • Title

1

Gravely 04776567

WLDMT, REAR RH DECK LIFT ARM (BLACK)

$101.99

$

Usually ships in 4-12 days

0

2

Gravely 04776767

FRT RH DECK LIFT ARM WLDMT-LF

$193.99

$

Usually ships in 4-12 days

0

3

Gravely 03989100

BSHG-FLG .515X.750X.310X1.120

$3.49

$

In Stock, Qty 20+

0

4

Gravely 04373300

FOOT PEG, DECK LIFT

$

$

Not available

5

Gravely 04732400

LINK-DECK LIFT - LONG

$17.99

$

Usually ships in 4-12 days

0

6

Gravely 04777353

SPRING ANCHOR BRACKET - RED

$20.99

$

Usually ships in 4-12 days

0

7

Gravely 05500934

BSHG-FLG 1.00X1.25X1.50X1.50

$6.99

$

In Stock, Qty 20+

0

8

Gravely 05971800

@BLT-HEX .50-13X.75 GR5 YWZC

$2.49

$

In Stock, only 1 left!

0

9

Gravely 06200119

BLT-RDHDSQNK .50-13X2.25 G5YZ
(Superseded to 06200423)

$3.99

$

In Stock, Qty 7

0

10

Gravely 06307300

@WSHR-LK .50X.125 REG YWZC
(Superseded to 06300115)

$1.49

$

In Stock, Qty 16

0

11

Gravely 06439200

WSHR-FL-STL .505X1.00X.062YWZC
(Superseded to 06401112)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 06500010

@NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 06500717

@NUT-LK-NYL-FLG .75-10 YWZC
(Superseded to 06500931)

$3.99

$

Usually ships in 4-12 days

0

14

Gravely 06535900

NUT-HEX-JAM .375-16 YWZC
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 07030000

BLT-EYE .375-16X2.50 YWZC

$7.99

$

Usually ships in 4-12 days

0

16

Gravely 08319000

SG-TENS .162X1.25X8.25 WLD 25

$33.99

$

In Stock, Qty 6

0
