992327 (Pro-Turn 272) - Gravely Pro-Turn 72" Zero-Turn Mower, Kawasaki FX (SN: 040000 & Above) Deck, Belts, Blades And Spindles - 72-Inch Deck Parts Diagram

Pro-Turn 72" Zero-Turn Mower, Kawasaki FX

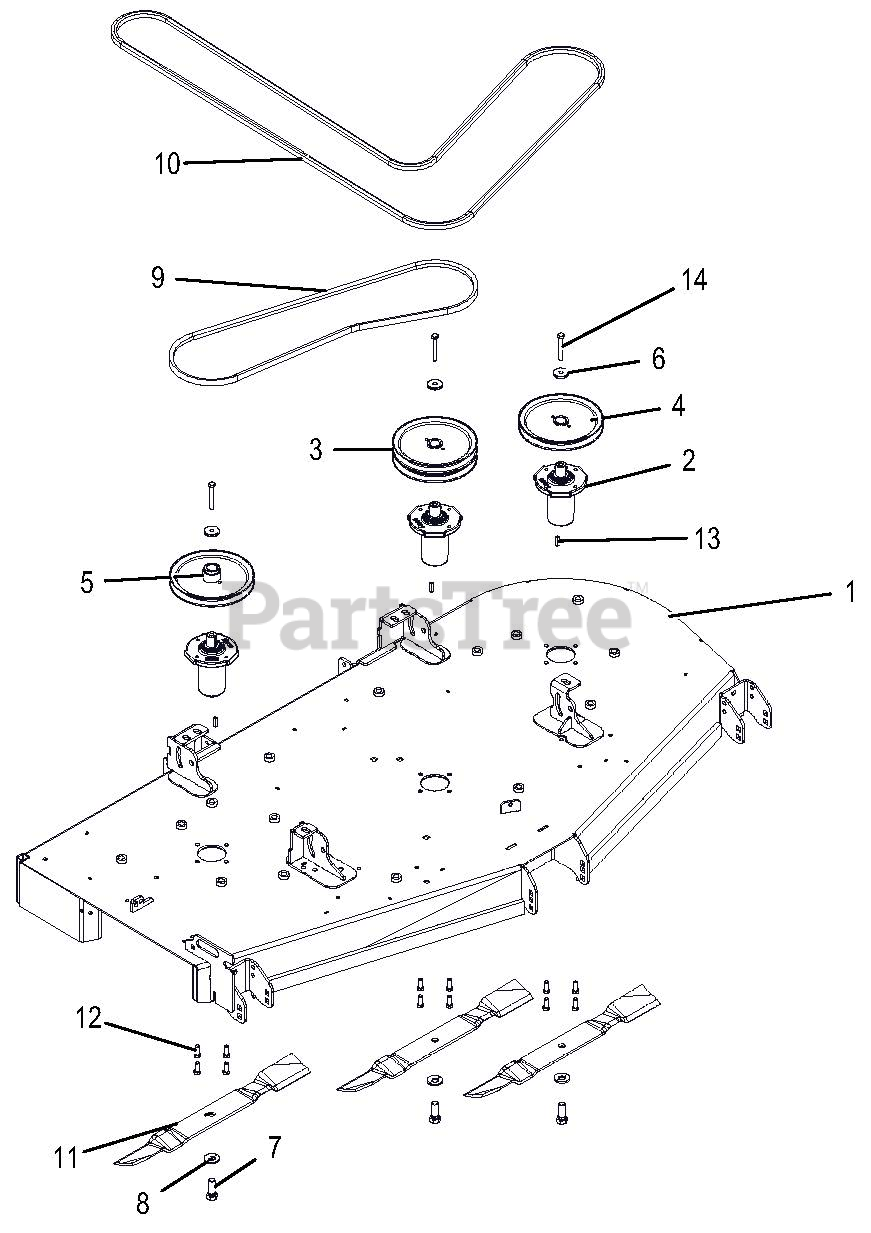

Deck, Belts, Blades And Spindles - 72-Inch Deck Parts Diagram

  • Title

1

Gravely 59223100

WLDMT, DECK 72-CE

$

$

Not available

2

Gravely 59215400

ASM, MAINT FREE SPINDLE
(Superseded to 59225700)

$239.99

$

In Stock, Qty 20+

0

3

Gravely 07337667

SHEAVE-DOUBLE 1.00"IDX8.25"OD
(Superseded to 07337600)

$129.99

$

In Stock, Qty 6

0

4

Gravely 07337767

SHEAVE-SINGLE 1.00"IDX8.25"OD
(Superseded to 07337700)

$91.99

$

In Stock, only 1 left!

0

5

Gravely 07340867

SHV-SINGLE 1.00"ID X 8.25"OD
(Superseded to 07340800)

$68.99

$

Usually ships in 4-12 days

0

6

Gravely 04530500

RETAINER, SHEAVE

$7.99

$

In Stock, Qty 20+

0

7

Gravely 05978900

BLT-HEX .62-18X1.75 GR8 YWZC
(Superseded to 05901822)

$3.49

$

In Stock, Qty 20+

0

8

Gravely 06445700

WSHR-BLVL .669X1.535X.138

$4.99

$

In Stock, Qty 6

0

9

Gravely 07200039

V-BELT, B-COGGED

$75.99

$

In Stock, Qty 10

0

10

Gravely 07200616

HEX BELT, BB WRAPPED

$159.99

$

In Stock, only 1 left!

0

11

Gravely 09290600

BLADE,MOWER-72"MULCH(24.5"LG)

$39.99

$

In Stock, only 3 left!

0

12

Gravely 05900013

BLT-HEX .38-16X1.0 GR8 YZ EP30
(Superseded to 05901721)

$1.99

$

In Stock, Qty 20+

0

13

Gravely 06611200

KEY, SQ .25X.25X1.00 RC 40-50

$2.99

$

In Stock, Qty 16

0

14

Gravely 05963000

BLT-HEX .38-16X2.75 GR8 YWZC
(Superseded to 05901813)

$1.49

$

In Stock, Qty 20+

0
