992327 (Pro-Turn 272) - Gravely Pro-Turn 72" Zero-Turn Mower, Kawasaki FX (SN: 030000 - 039999) Steering Controls Parts Diagram

Pro-Turn 72" Zero-Turn Mower, Kawasaki FX

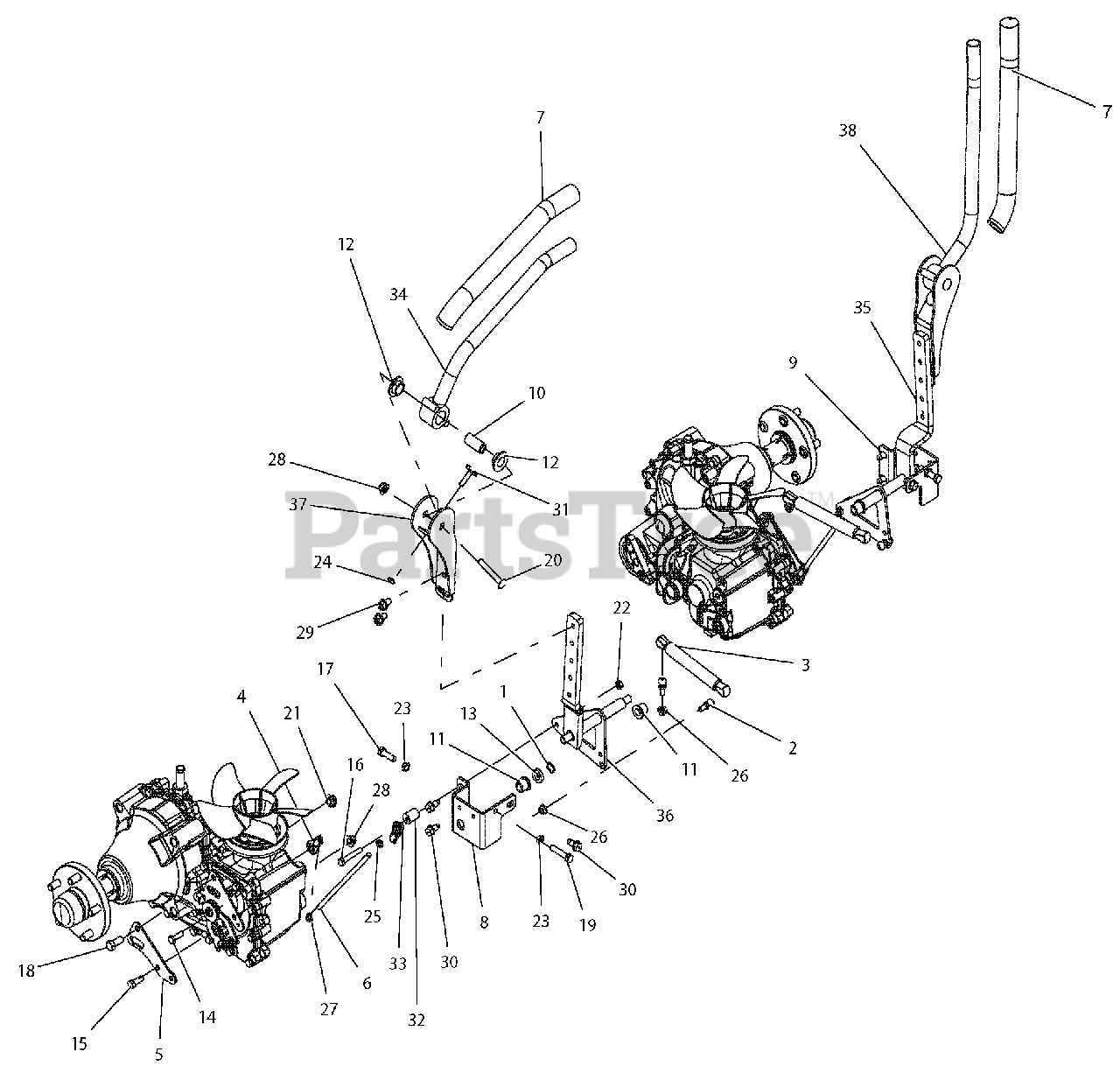

Steering Controls Parts Diagram

  • Title

1

Gravely 00325400

WAVE WASHER .531X.781X.125 FH

$0.99

$

In Stock, Qty 20+

0

2

Gravely 03652200

STUD-BALL

$3.49

$

In Stock, only 3 left!

0

3

Gravely 03769800

DAMPER,
(Superseded to 09689700)

$39.99

$

In Stock, Qty 20+

0

4

Gravely 03787200

ALIGNABALL, 5/16 LH THREAD
(Superseded to 05298700)

$

$

Not available

5

Gravely 03885451

BRKT., CONTROL MTG-BLACK

$17.99

$

Usually ships in 4-12 days

0

6

Gravely 03938500

ROD, STEERING

$9.99

$

Usually ships in 4-12 days

0

7

Gravely 04383600

GRIP, HANDLEBAR

$35.99

$

In Stock, only 2 left!

0

8

Gravely 04395153

BRKT, RH CONTROL ARM STOP-RED

$37.99

$

Usually ships in 4-12 days

0

9

Gravely 04395253

BRKT, LH CONTROL ARM STOP-RED

$

$

Not available

10

Gravely 04413600

SPCR, STEERING ARM

$6.49

$

Usually ships in 4-12 days

0

11

Gravely 05501001

BHSG-FLG .500X.750X.750X.125

$4.99

$

In Stock, Qty 20+

0

12

Gravely 05525200

BSHG, FLANGE .762 X 1.48 X .44 NYLON
(Superseded to 05501517)

$

$

Not available

13

Gravely 05532400

SPACER

$3.99

$

In Stock, only 2 left!

0

14

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 05957200

BLT-HEX .31-18X2.00 GR5 YWZC
(Superseded to 05901805)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 05958000

BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 05958700

BLT-HEX .44-14X1.00 GR5 YWZC
(Superseded to 05901913)

$2.99

$

In Stock, only 1 left!

0

19

Gravely 05974000

BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901612)

$2.99

$

In Stock, only 1 left!

0

20

Gravely 06200213

BLT-RHDSSQNK .38-16X2.50 G5YZ
(Superseded to 06200315)

$3.49

$

In Stock, only 2 left!

0

21

Gravely 06500009

NUT-LK-NYL-FLG .44-14 YWZC
(Superseded to 06500811)

$5.99

$

In Stock, only 1 left!

0

22

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 06535900

NUT, JAM .375-16 YWZC
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 06536100

NUT, JAM .312-18 YWZC
(Superseded to 06500909)

$0.99

$

In Stock, Qty 20+

0

25

Gravely 06536700

NUT-JAM
(Superseded to 06500923)

$0.99

$

In Stock, Qty 13

0

26

Gravely 06543100

NUT, LK-TOP-FLG .312-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

27

Gravely 06544300

NUT, JAM -LH .31-24 YWZC
(Superseded to 06501002)

$

$

Not available

28

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

29

Gravely 07001707

BLT-SERHFWH .38-16X.62 YWZC
(Superseded to 07001716)

$

$

Not available

30

Gravely 07415400

SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

31

Gravely 07500219

BUMPER, STUD MOUNTED

$14.99

$

Usually ships in 4-12 days

0

32

Gravely 09235700

ECCENTRIC

$4.99

$

Usually ships in 4-12 days

0

33

Gravely 03787100

ALIGNABALL, 5/16 RH THREAD

$12.99

$

In Stock, only 2 left!

0

34

Gravely 04413000

WLDMT, RH STEERING ARM

$

$

Not available

35

Gravely 04413100

WLDMT, LH LOWER CONTROL ARM

$439.99

$

Usually ships in 4-12 days

0

36

Gravely 04413200

WLDMT, RH LOWER CONTROL ARM

$180.99

$

Usually ships in 4-12 days

0

37

Gravely 04413351

MOUNT, STEERING ARM, ADJUSTABLE-BLACK

$79.99

$

Usually ships in 4-12 days

0

38

Gravely 04424000

WLDMT, LH STEERING ARM

$

$

Not available
