992327 (Pro-Turn 272) - Gravely Pro-Turn 72" Zero-Turn Mower, Kawasaki FX (SN: 030000 - 039999) Idlers And Sheaves Parts Diagram

Pro-Turn 72" Zero-Turn Mower, Kawasaki FX

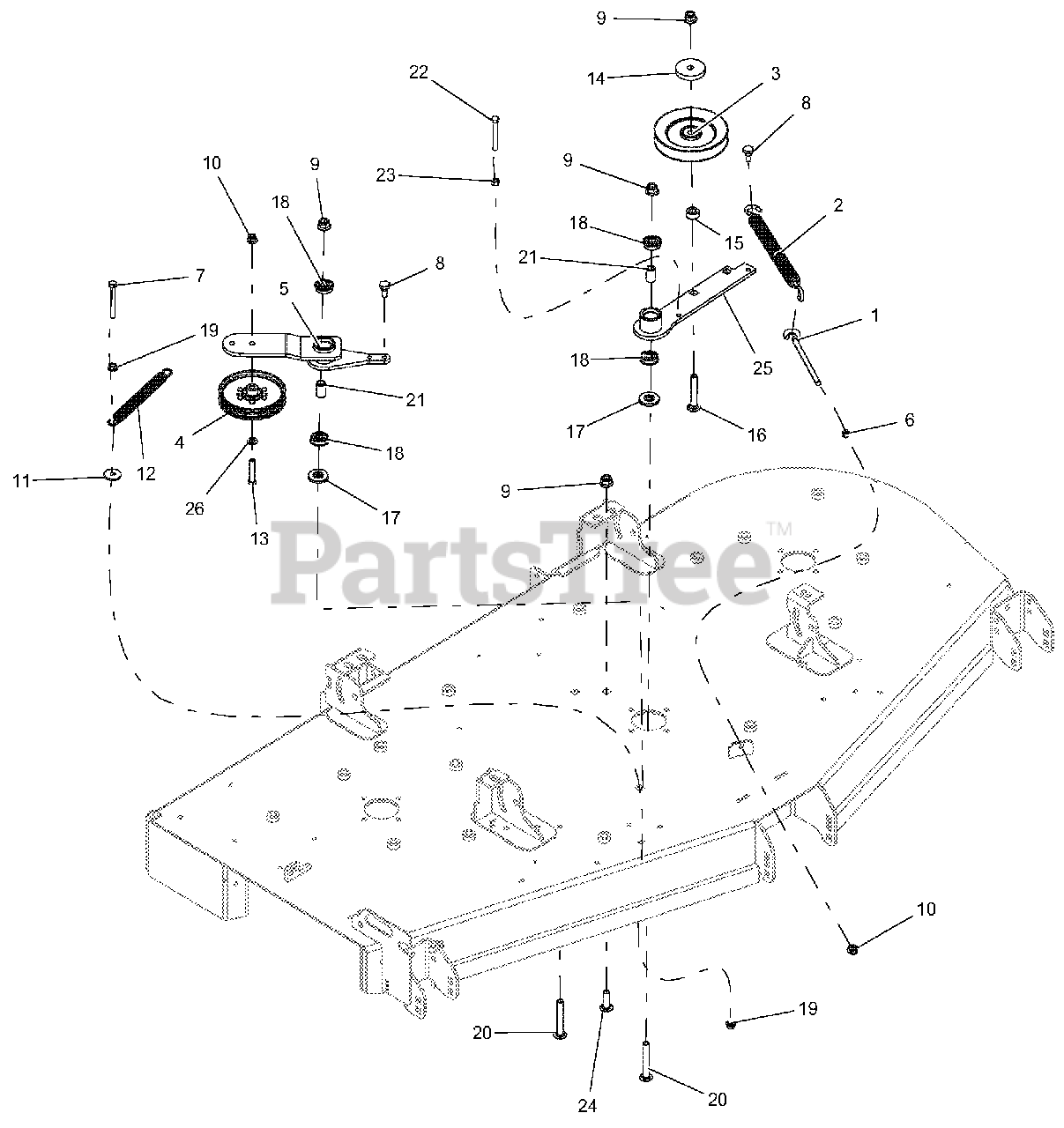

Idlers And Sheaves Parts Diagram

  • Title

1

Gravely 07001604

BOLT, .38-16X6.00 .62 DIA EYE

$6.99

$

Usually ships in 4-12 days

0

2

Gravely 08300505

SPRG, EXTENSION

$25.99

$

In Stock, Qty 20+

0

3

Gravely 07300527

SHEAVE, .50" ID X 6.00" OD V-IDLER

$53.99

$

In Stock, Qty 20+

0

4

Gravely D28050

PULLEY, FLAT IDLER .500 X .375 W/BRG
(Superseded to 07352400)

$39.99

$

In Stock, Qty 20+

0

5

Gravely 09357651

WLDMT, DECK RH IDLER ARM
(Superseded to 09357600)

$86.99

$

In Stock, only 1 left!

0

6

Gravely 06535900

NUT, JAM .375-16 YWZC
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 05957800

BLT-HEX .38-16X3.00 GR5 YWZC
(Superseded to 05901814)

$2.49

$

In Stock, Qty 20+

0

8

Gravely 07000034

BLT, SHLDR EP .38-16X.30 HEX YZ

$3.99

$

In Stock, only 1 left!

0

9

Gravely 06500010

NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06442400

WSHR-FL-STL .406X1.375X.135 YZ
(Superseded to 06401121)

$5.99

$

In Stock, only 1 left!

0

12

Gravely 08300626

SPRG, EXTENSION .120X.845X6.55 WLD
(Superseded to 08300728)

$26.99

$

In Stock, Qty 20+

0

13

Gravely 05963300

BLT-HEX .38-16X2.00 GR5 YWZC
(Superseded to 05901718)

$2.99

$

In Stock, Qty 6

0

14

Gravely 00450100

CAP, IDLER BEARING SEALING

$14.99

$

In Stock, only 1 left!

0

15

Gravely 05500905

BSHG, SPCR .502 X .997.50 PM

$11.99

$

In Stock, Qty 18

0

16

Gravely 06224900

BLT-RDHDSQNK .50-13X3.00 G5 Y

$5.99

$

In Stock, Qty 16

0

17

Gravely 04714600

SPACER, IDLER ARM

$5.99

$

In Stock, Qty 20+

0

18

Gravely 05480000

BRG, BALL .501 X 1.38 X .438 SEALED

$13.99

$

In Stock, Qty 20+

0

19

Gravely 06534900

@NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 06200216

BLT-RDHDSQSHNK .50-13X3.25 YWZC
(Superseded to 06200339)

$3.99

$

In Stock, Qty 20+

0

21

Gravely 09357700

SPACER, .510 X .750 X 1.148

$4.99

$

In Stock, only 3 left!

0

22

Gravely 05961400

BLT-HEX .38-16X2.75 GR5 YWZC
(Superseded to 05901611)

$3.99

$

In Stock, only 4 left!

0

23

Gravely 06529400

NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 06200006

BLT-RDHDSQSHNK .50-13X1.50 YWZC

$5.99

$

In Stock, only 1 left!

0

25

Gravely 09357151

WLDMT, DECK PTO IDLER ARM-BLACK
(Superseded to 59219200)

$125.99

$

Usually ships in 4-12 days

0

26

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0
