992327 (Pro-Turn 272) - Gravely Pro-Turn 72" Zero-Turn Mower, Kawasaki FX (SN: 030000 - 039999) Clutch And Belt Driver Parts Diagram

Pro-Turn 72" Zero-Turn Mower, Kawasaki FX

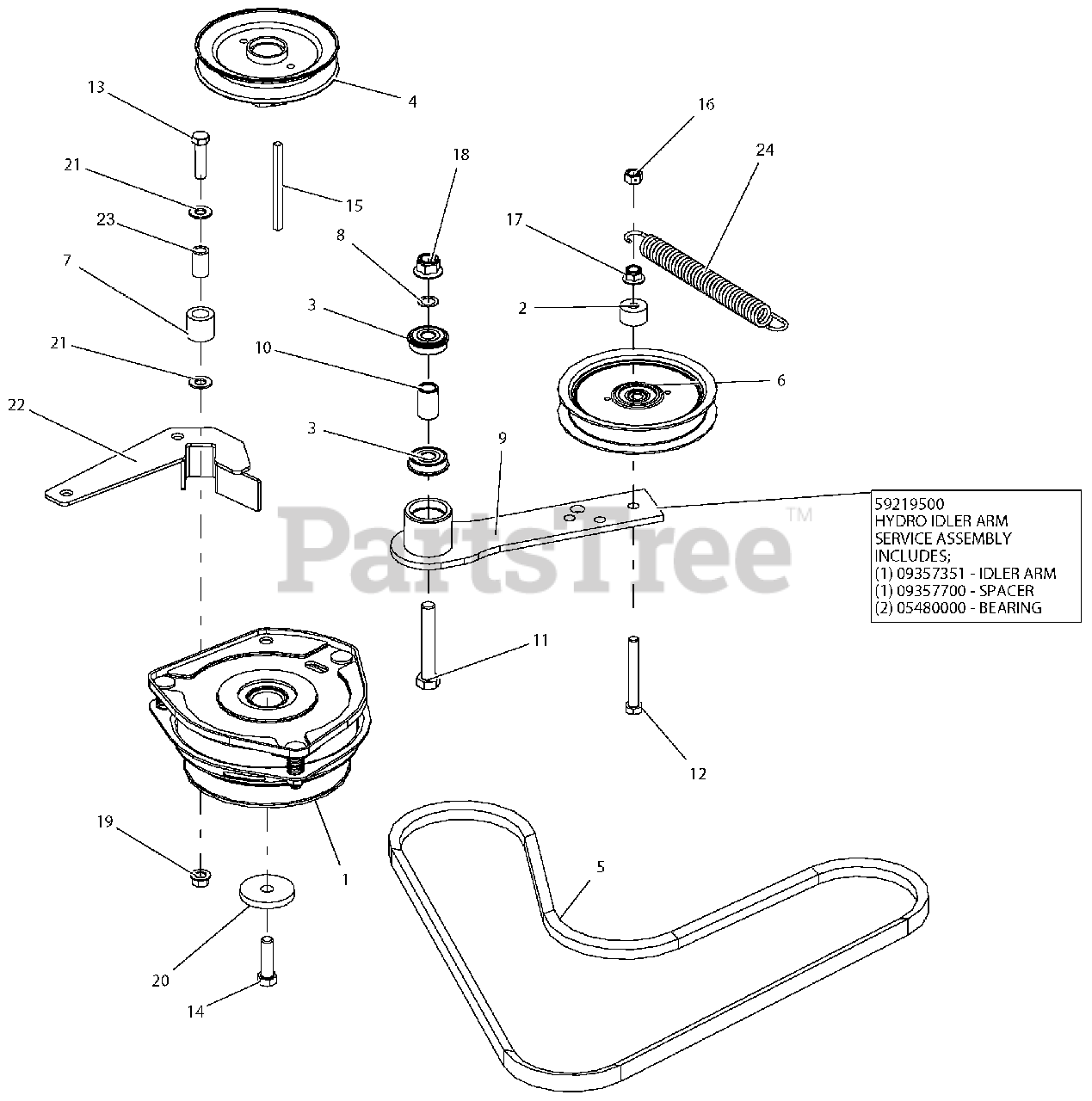

Clutch And Belt Driver Parts Diagram

  • Title

1

Gravely 00447100

CLUTCH-OGURA

$685.99

$

In Stock, only 1 left!

0

2

Gravely 03035100

SPACER .390X1.000X.562

$9.49

$

In Stock, only 1 left!

0

3

Gravely 05480000

BRG, BALL .501 X 1.38 X .438 SEALED

$13.99

$

In Stock, Qty 20+

0

4

Gravely 07331001

PULLEY, V-5.25 OD X 1.51 ID

$

$

Not available

5

Gravely 07200515

BELT, B RAW COGGED

$58.99

$

In Stock, Qty 20+

0

6

Gravely 07334500

IDLER, FLAT - 5.00" X .75"

$80.99

$

In Stock, Qty 10

0

7

Gravely 07500007

BUMPER, RUBBER .62 X 1.0 X .88 LG

$5.99

$

In Stock, only 2 left!

0

8

Gravely 06400015

WASHER-FLAT-STL, .500 X .750 X .020

$1.49

$

In Stock, Qty 20+

0

9

Gravely 09357351

WLDMT, HYDRO DRIVE IDLER ARM-BLACK
(Superseded to 09357300)

$52.99

$

Usually ships in 4-12 days

0

9

Gravely 59219500

HYDRO IDLER ARM SERVICE ASSEMBLY INCLUDES -

$109.99

$

Usually ships in 4-12 days

0

9

Gravely 09357351

IDLER ARM
(Superseded to 09357300)

$52.99

$

Usually ships in 4-12 days

0

9

Gravely 09357700

SPACER

$4.99

$

In Stock, only 3 left!

0

9

Gravely 05480000

BEARING

$13.99

$

In Stock, Qty 20+

0

10

Gravely 09357700

SPACER, .510 X .750 X 1.148

$4.99

$

In Stock, only 3 left!

0

11

Gravely 05959900

BLT-HEX .50-13X3.00 GR5 YWZC
(Superseded to 05901737)

$4.99

$

In Stock, only 1 left!

0

12

Gravely 05961400

BLT-HEX .38-16X2.75 GR5 YWZC
(Superseded to 05901611)

$3.99

$

In Stock, only 4 left!

0

13

Gravely 05957900

BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$1.49

$

In Stock, Qty 15

0

14

Gravely 05900039

BLT-HEX .44-20X1.50 GR8 YWZC
(Superseded to 05902004)

$5.99

$

In Stock, Qty 5

0

15

Gravely 06600003

KEY-SQ .250X.250X3.50

$4.99

$

In Stock, Qty 7

0

16

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 06500010

NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 06542000

NUT, LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 06443600

WSHR-FL-STL .469X2.00X.25 YWZC
(Superseded to 06401111)

$6.99

$

In Stock, only 2 left!

0

21

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

22

Gravely 03908851

WMT, CLUTCH STOP - BLACK

$51.99

$

In Stock, only 1 left!

0

23

Gravely 08833400

BUSH.,S.391X.622X.95 ST REV A

$5.99

$

In Stock, only 1 left!

0

24

Gravely 08300626

SPRG, EXTENSION .120X.845X6.55 WLD
(Superseded to 08300728)

$26.99

$

In Stock, Qty 20+

0
