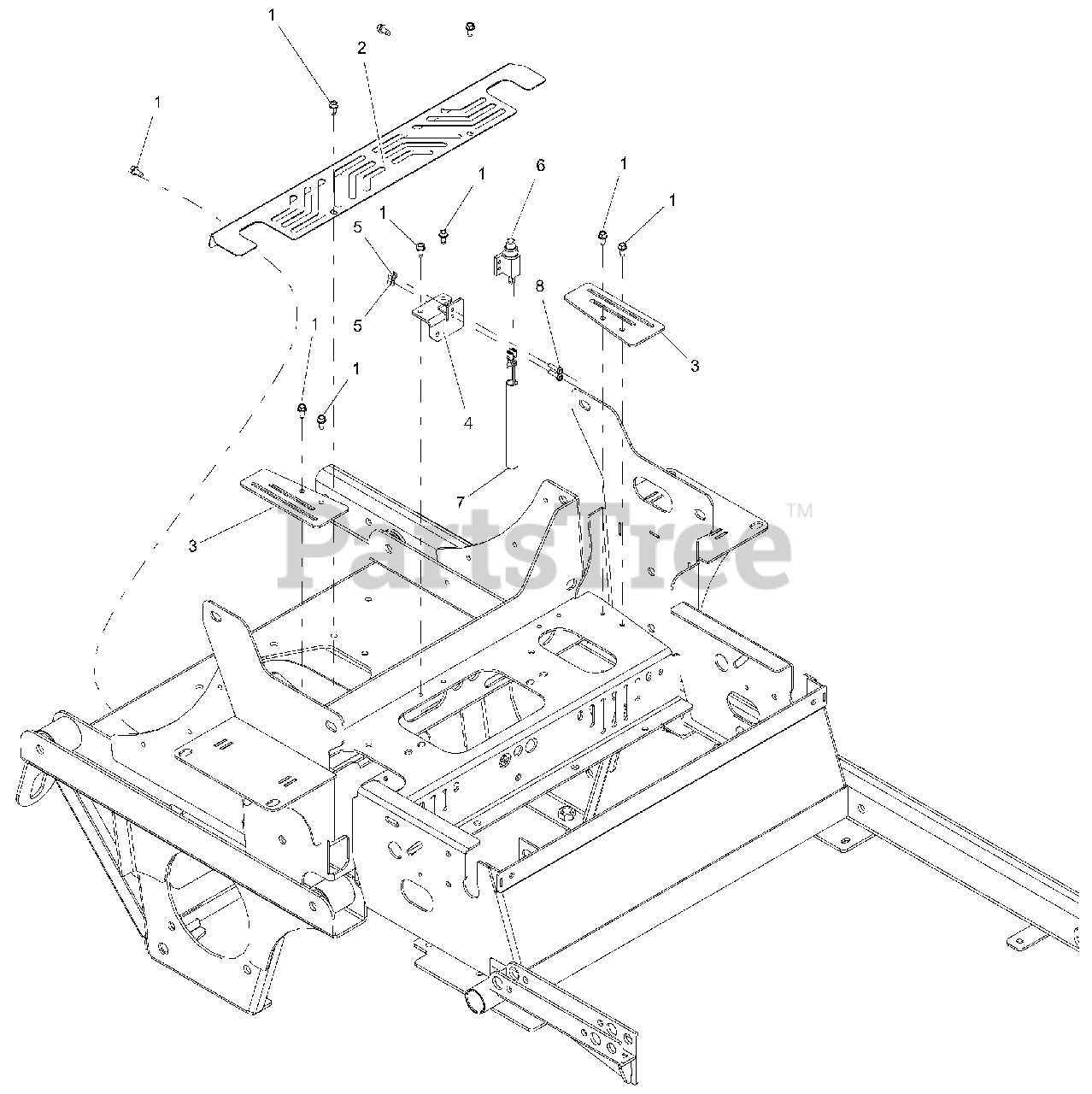

992327 (Pro-Turn 272) - Gravely Pro-Turn 72" Zero-Turn Mower, Kawasaki FX (SN: 030000 - 039999) CE Switch Plate Parts Diagram

Pro-Turn 72" Zero-Turn Mower, Kawasaki FX

CE Switch Plate Parts Diagram

  • Title

1

Gravely 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

2

Gravely 04073253

GUARD, CE REAR ACCESS

$

$

Not available

3

Gravely 04316753

GUARD, SEAT PLATE FINGER

$

$

Not available

4

Gravely 04763453

BRKT, SEAT SWITCH MOUNT 272-CE (RED)

Note: (RED)

$

$

Not available

5

Gravely 06536000

NUT-LK-NYL #10-24 YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 09251900

SWITCH (N.0.) RUBBER SEALED

Note: (N.0.) RUBBER SEALED

$22.99

$

Usually ships in 4-12 days

0

7

Gravely 04763500

HARNESS, SEAT PLATE SWITCH

$

$

Not available

8

Gravely 06116900

@SCR-MCH 10-24X.75 HWH YWZC
(Superseded to 05901837)

$2.49

$

In Stock, Qty 15

0
