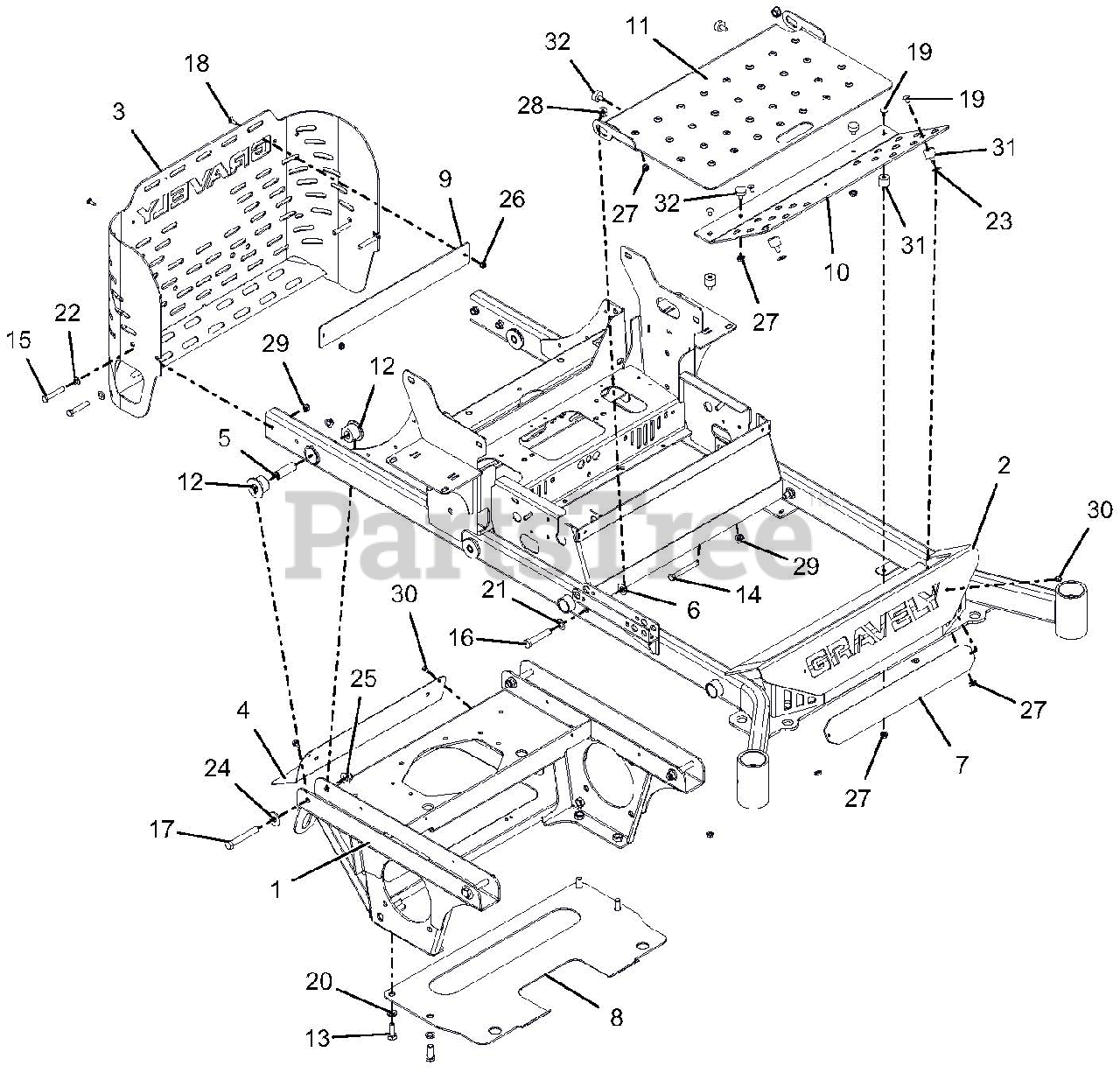

992326 (Pro-Turn 260) - Gravely Pro-Turn 60" Zero-Turn Mower, Kawasaki FX (SN: 040000 & Above) Frame, Bumper, Sub-Frame And Footplate 52 And 60-Inch Parts Diagram

Pro-Turn 60" Zero-Turn Mower, Kawasaki FX

Frame, Bumper, Sub-Frame And Footplate 52 And 60-Inch Parts Diagram

  • Title

1

Gravely 03855553

PT200/400 AXLE/ENG FRM WMT-RED

$607.99

$

Usually ships in 4-12 days

0

2

Gravely 59219800

52-60" PT400 FRAME W/DECALS

$1293.99

$

Usually ships in 4-12 days

0

3

Gravely 59221700

REAR BUMPER W/SAFETY DECALS

$239.99

$

Usually ships in 4-12 days

0

4

Gravely 03948151

MUFFLER HEAT SHIELD - BLACK

$72.99

$

In Stock, only 1 left!

0

5

Gravely 03985600

BSHG-SLV .50X.75X2.23

$9.49

$

Usually ships in 4-12 days

0

6

Gravely 03989100

BSHG-FLG .515X.750X.310X1.120

$3.49

$

In Stock, Qty 20+

0

7

Gravely 04386551

BUMPER LOGO BACKING PLATE -BLK

$

$

Not available

8

Gravely 04524553

PLATE-TRANSMISSION SKID

$74.99

$

Usually ships in 4-12 days

0

9

Gravely 04777551

LOGO BACKING PLATE - BLACK

$14.99

$

Usually ships in 4-12 days

0

10

Gravely 04788553

FOOTREST - RED

$

$

Not available

11

Gravely 04788653

INSPECTION PANEL - RED

$

$

Not available

12

Gravely 05500924

BSHG-FLG .75X1.51X1.13X2.0 URE

$11.99

$

Usually ships in 4-12 days

0

13

Gravely 05958900

@BLT-HEX .50-13X1.25 GR5 YWZC
(Superseded to 05901637)

$3.49

$

In Stock, only 1 left!

0

14

Gravely 05961100

@BLT-HEX .38-16X3.25 GR5 YWZC
(Superseded to 05901817)

$3.99

$

In Stock, Qty 20+

0

15

Gravely 05962900

@BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

16

Gravely 05965500

@BLT-HEX .50-13X2.75 GR5 YWZC
(Superseded to 05901720)

$4.99

$

Usually ships in 4-12 days

0

17

Gravely 05965800

@BLT-HEX .50-13X3.50 GR5 YWZC
(Superseded to 05901937)

$4.99

$

In Stock, only 1 left!

0

18

Gravely 06219900

@BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$0.99

$

In Stock, Qty 18

0

19

Gravely 06222000

@BLT-RDHDSQNK .31-18X.50 G5YZ
(Superseded to 06200406)

$2.99

$

In Stock, Qty 20+

0

20

Gravely 06307300

@WSHR-LK .50X.125 REG YWZC
(Superseded to 06300115)

$1.49

$

In Stock, Qty 16

0

21

Gravely 06425300

WSHR-FL-STL.531X1.00X.063 YWZC
(Superseded to 06401115)

$0.99

$

In Stock, Qty 20+

0

22

Gravely 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

23

Gravely 06439400

WSHR-FL-STL .328X.875X.062YWZC

$3.99

$

Usually ships in 4-12 days

0

24

Gravely 06442000

@WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

$2.49

$

In Stock, only 1 left!

0

25

Gravely 06500010

@NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 06500012

@NUT-LK-NYL-FLG .25-20 YWZC
(Superseded to 06500813)

$1.49

$

In Stock, Qty 15

0

27

Gravely 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

28

Gravely 06543600

@NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

29

Gravely 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

30

Gravely 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

31

Gravely 07500214

BUMPER,STUD MNTD W/FEMALE INSR

$20.99

$

Usually ships in 4-12 days

0

32

Gravely 07533600

BUMPER, RUBBER

$11.99

$

In Stock, only 1 left!

0
