992326 (Pro-Turn 260) - Gravely Pro-Turn 60" Zero-Turn Mower, Kawasaki FX (SN: 040000 & Above) Deck, Belts, Blades And Spindles - 60-Inch Deck Parts Diagram

Pro-Turn 60" Zero-Turn Mower, Kawasaki FX

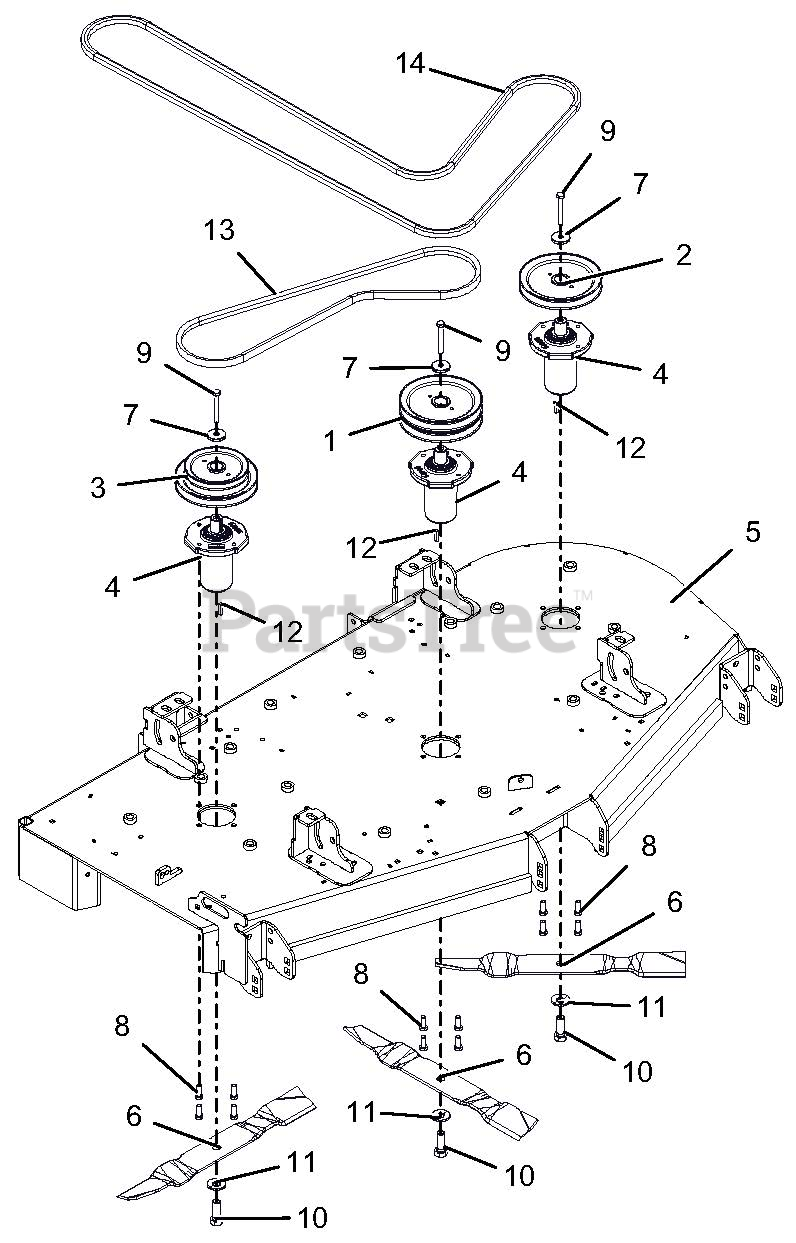

Deck, Belts, Blades And Spindles - 60-Inch Deck Parts Diagram

  • Title

1

Gravely 07328867

PULLEY, DOUBLE-1"ID X 6.75"OD
(Superseded to 59211500)

$91.99

$

In Stock, Qty 20+

0

2

Gravely 07328967

PULLEY, V-1" ID X 6.75" OD
(Superseded to 59211600)

$82.99

$

In Stock, Qty 8

0

3

Gravely 07340400

PULLEY, DBL-1"IDX6.75"&5.25"OD

$68.99

$

In Stock, only 2 left!

0

4

Gravely 59215400

ASM, MAINT FREE SPINDLE
(Superseded to 59225700)

$239.99

$

In Stock, Qty 20+

0

5

Gravely 59223000

WLDMT, 60" SIDE DISCH DECK

$

$

Not available

6

Gravely 03367100

BLADE, MULCH (60")

$31.99

$

In Stock, Qty 20+

0

7

Gravely 04530500

RETAINER, SHEAVE

$7.99

$

In Stock, Qty 20+

0

8

Gravely 05900013

BLT-HEX .38-16X1.0 GR8 YZ EP30
(Superseded to 05901721)

$1.99

$

In Stock, Qty 20+

0

9

Gravely 05963000

BLT-HEX .38-16X2.75 GR8 YWZC
(Superseded to 05901813)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 05978900

BLT-HEX .62-18X1.75 GR8 YWZC
(Superseded to 05901822)

$3.49

$

In Stock, Qty 20+

0

11

Gravely 06445700

WSHR-BLVL .669X1.535X.138

$4.99

$

In Stock, Qty 9

0

12

Gravely 06611200

KEY, SQ .25X.25X1.00 RC 40-50

$2.99

$

In Stock, Qty 16

0

13

Gravely 07200038

V-BELT, B-COGGED

$67.99

$

In Stock, Qty 20+

0

14

Gravely 07200510

HEX BELT, BB-WRAPPED

$150.99

$

Usually ships in 4-12 days

0
