992326 (Pro-Turn 260) - Gravely Pro-Turn 60" Zero-Turn Mower, Kawasaki FX (SN: 040000 & Above) Chute - 52 And 60-Inch Deck Parts Diagram

Pro-Turn 60" Zero-Turn Mower, Kawasaki FX

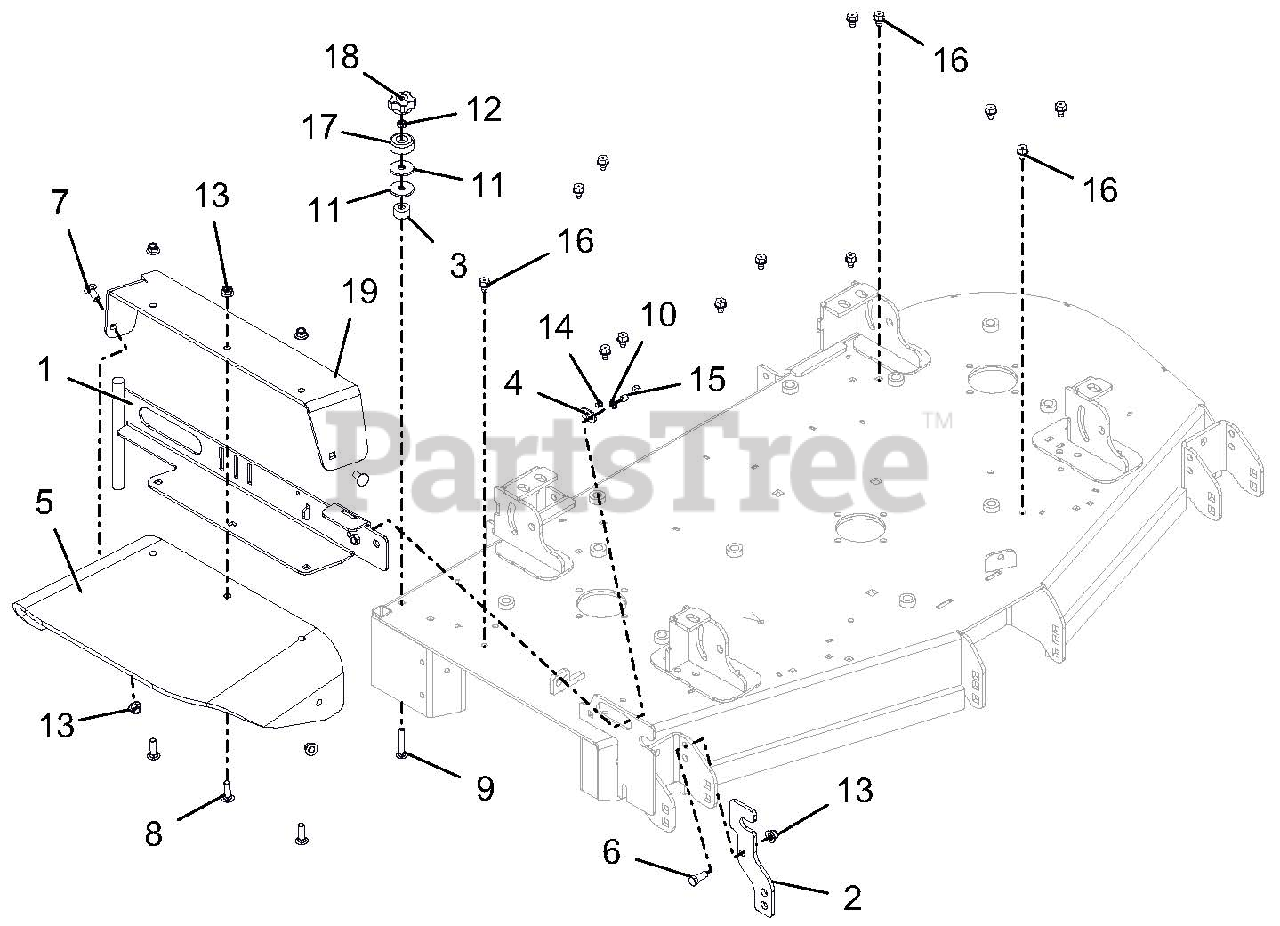

Chute - 52 And 60-Inch Deck Parts Diagram

  • Title

1

Gravely 04319453

WLDMT, 52" DISCHARGE CHUTE MTG-CE

$

$

Not available

2

Gravely 00474753

CHUTE STORAGE BRACKET - RED

$28.99

$

Usually ships in 4-12 days

0

3

Gravely 03035100

SPACER .390X1.000X.562

$9.49

$

In Stock, only 1 left!

0

4

Gravely 04183000

KEEPER, BOLT

$6.49

$

Usually ships in 4-12 days

0

5

Gravely 04551600

CHUTE, RUBBER DISCHARGE

$68.99

$

In Stock, Qty 15

0

6

Gravely 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 06223600

@BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.49

$

In Stock, Qty 10

0

8

Gravely 06224100

@BLT-RDHDSQNK .38-16X1.25 G5YZ
(Superseded to 06200415)

$2.49

$

In Stock, only 3 left!

0

9

Gravely 06225800

BLT-RDHDSQNKFT .31-18X2.0 G5YZ

$3.99

$

Usually ships in 4-12 days

0

10

Gravely 06308700

@WSHR-LK-EXT.391X.628X.036YWZC

$1.99

$

Usually ships in 4-12 days

0

11

Gravely 06443400

WSHR-FL-STL .380X1.50X.125YWZC
(Superseded to 06401106)

$3.49

$

In Stock, Qty 10

0

12

Gravely 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 06800028

RVT-POP .187x.250 (#64) YWZC
(Superseded to 06800140)

$0.99

$

In Stock, Qty 14

0

15

Gravely 07001634

BLT-HEX .38-16X1.25 GR5 CAP .37

$

$

Not available

16

Gravely 07412900

@SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 07500009

BUMPER,RECESSED1.50X.63 W/.31

$5.99

$

Usually ships in 4-12 days

0

18

Gravely 07534800

KNOB-CLAMPING, .312-18 NYLOC

$3.49

$

In Stock, Qty 20+

0

19

Gravely 59218500

DISCH CHUTE SUPPORT W/DECAL

$102.99

$

Usually ships in 4-12 days

0
