992326 (Pro-Turn 260) - Gravely Pro-Turn 60" Zero-Turn Mower, Kawasaki FX (SN: 031999 - 039999) Deck, Belts, Blades And Spindles - 60" Deck Parts Diagram

Pro-Turn 60" Zero-Turn Mower, Kawasaki FX

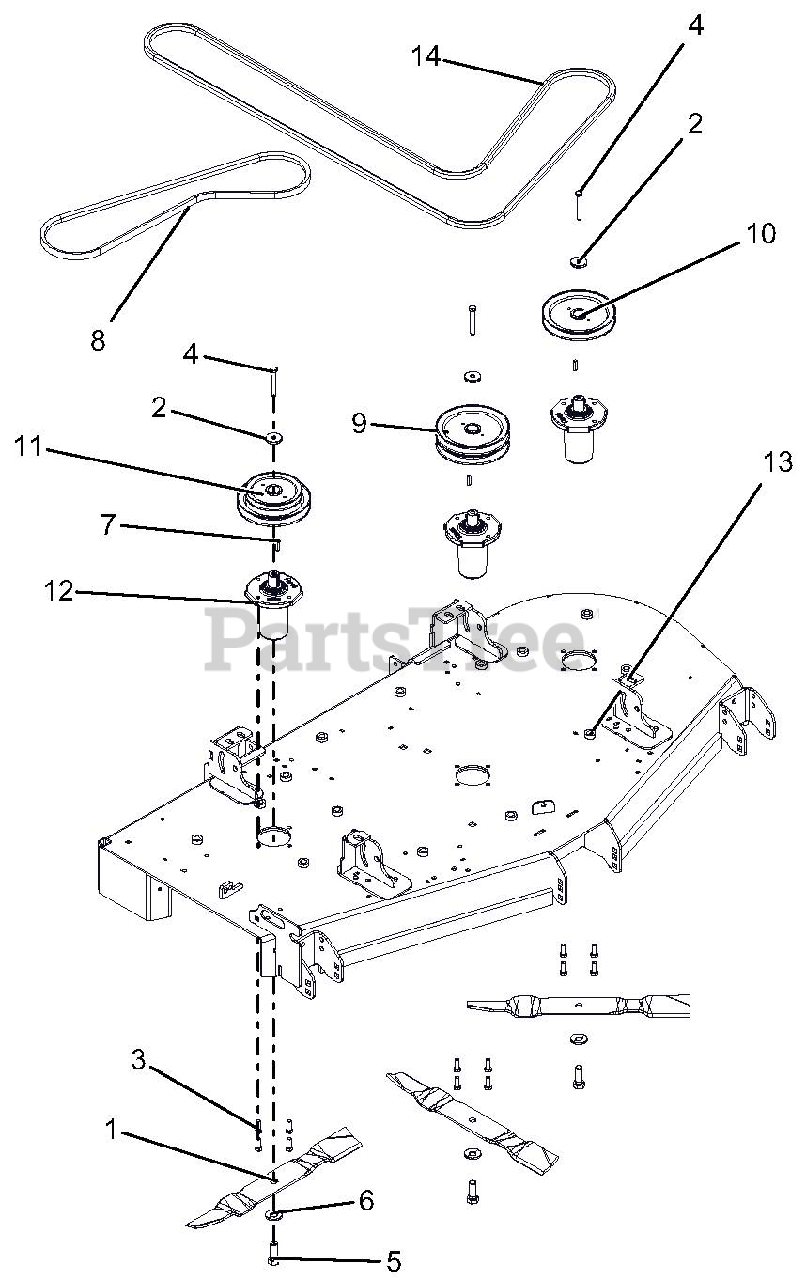

Deck, Belts, Blades And Spindles - 60" Deck Parts Diagram

  • Title

1

Gravely 03367100

BLADE, MULCH

Note: (60")

$31.99

$

In Stock, Qty 20+

0

2

Gravely 04530500

RETAINER, SHEAVE SPINDLE

$7.99

$

In Stock, Qty 20+

0

3

Gravely 05900013

BLT-HEX .38-16X1.00 GR5 YWZC EP30
(Superseded to 05901721)

$1.99

$

In Stock, Qty 20+

0

4

Gravely 05963000

BLT-HEX .38-16X2.75 GR8 YWZC
(Superseded to 05901813)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 05978900

BLT, HEX .62-18X1.75 GR8 YWZC
(Superseded to 05901822)

$3.49

$

In Stock, Qty 20+

0

6

Gravely 06445700

WSHR, BLVL .63X1.625X.14

$4.99

$

In Stock, only 3 left!

0

7

Gravely 06611200

KEY-SQ .250X.250X1.00 RC 40-50

$2.99

$

In Stock, Qty 15

0

8

Gravely 07200038

BELT, B 63.00 RAW COGGED

$67.99

$

In Stock, Qty 20+

0

9

Gravely 07328867

PULLEY, DOUBLE 1"ID X 6.75"OD
(Superseded to 59211500)

Note: BLACK

$91.99

$

In Stock, Qty 20+

0

10

Gravely 07328967

PULLEY, V-1" ID X 6.75" OD
(Superseded to 59211600)

Note: BLACK

$82.99

$

In Stock, Qty 8

0

11

Gravely 07340400

PULLEY, DOUBLE -1" ID X 6.75" & 5.25" OD

$68.99

$

In Stock, only 2 left!

0

12

Gravely 59215400

SERVICE, ASM SPINDLE- DUCTILE
(Superseded to 59225700)

$239.99

$

In Stock, Qty 20+

0

13

Gravely 59223000

WLDMT, 60" SIDE DISCH DECK

$

$

Not available

14

Gravely 07200510

BELT, BB 118.00 WRAPPED HEX

$150.99

$

In Stock, only 2 left!

0
