992325 (Pro-Turn 252) - Gravely Pro-Turn 52" Zero-Turn Mower, Kawasaki FX (SN: 031000 - 039999) Seat Parts Diagram

Pro-Turn 52" Zero-Turn Mower, Kawasaki FX

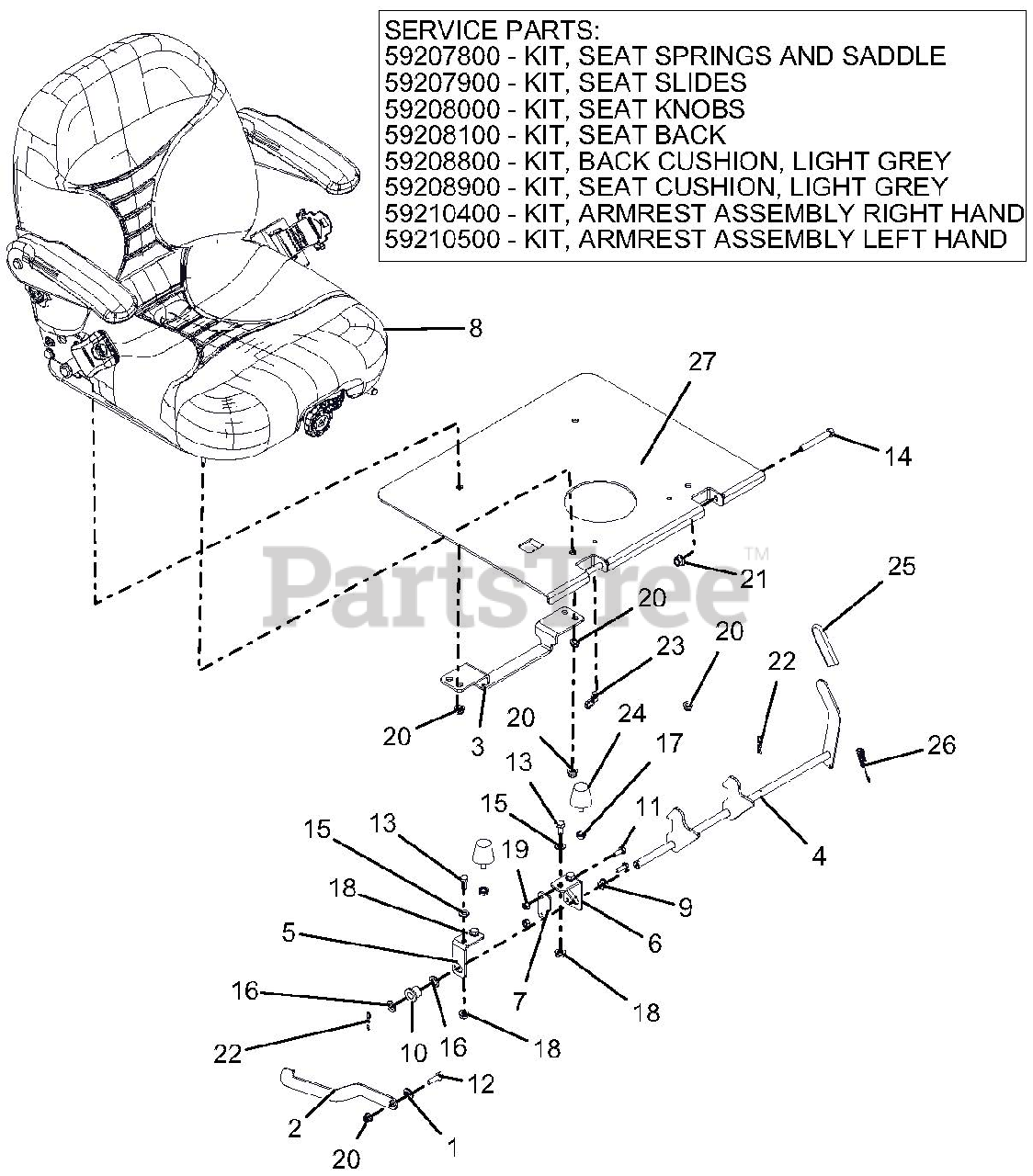

Seat Parts Diagram

  • Title

1

Gravely 01305900

BSHG, FLG .325X.499X.26X.88

$2.49

$

In Stock, only 1 left!

0

2

Gravely 03885600

STOP, SEAT

$7.49

$

Usually ships in 4-12 days

0

3

Gravely 03991551

BRKT, SEAT LATCH

Note: BLACK

$

$

Not available

4

Gravely 03991651

WMT, SEAT LATCH

$90.99

$

Usually ships in 4-12 days

0

5

Gravely 03991751

MOUNT, SEAT LATCH - RH

$

$

Not available

6

Gravely 03991851

MOUNT, SEAT LATCH - LH

$

$

Not available

7

Gravely 03991951

RETAINER-SEAT LATCH

$

$

Not available

8

Gravely 04052900

SEAT, SUSPENSION W/SEAT BELT, LT GRAY
(Superseded to 09680600)

$930.99

$

In Stock, only 1 left!

0

9

Gravely 05500026

BUSHING, POLYLINER - .50 SPLIT

$2.99

$

In Stock, Qty 20+

0

10

Gravely 05521100

BSHG, FLANGE .515 X .750 X .745 X 1.00 NYLON

$2.49

$

In Stock, only 3 left!

0

11

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 05961400

BLT-HEX .38-16X2.75 GR5 YWZC
(Superseded to 05901611)

$3.99

$

In Stock, only 4 left!

0

15

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 06441100

WSHR-FL-STL .520X.827X.062 YWZC
(Superseded to 06401114)

$2.49

$

In Stock, only 2 left!

0

17

Gravely 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 06543100

NUT, LK-TOP-FLG .312-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 06543500

NUT, LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 06701000

PIN-HAIR INT .08X.38X1.42 YWZC
(Superseded to 06700224)

$2.49

$

Usually ships in 4-12 days

0

23

Gravely 07500040

CABLE TIE W/ TREE (.25 HOLE)

Note: (.25 HOLE)

$3.99

$

In Stock, only 1 left!

0

24

Gravely 07533000

BUMPER, RUBBER CONE STUD MOUNT

$14.99

$

Usually ships in 4-12 days

0

25

Gravely 07539700

GRIP-VINYL-YELLOW .125 x 1.0 x 3.0

$

$

Not available

26

Gravely 08321100

SPRG, EXTENSION

$6.49

$

In Stock, Qty 6

0

27

Gravely 59221500

SEAT, PLATE WLDMT W/SAFETY DECALS

$81.99

$

Usually ships in 4-12 days

0

28

Gravely 59207800

KIT SEAT SPRINGS AND SADDLE

Note: SERVICE PART

$175.99

$

Usually ships in 4-12 days

0

29

Gravely 59207900

KIT SEAT SLIDES

Note: SERVICE PART

$

$

Not available

30

Gravely 59208000

KIT SEAT KNOBS

Note: SERVICE PART

$

$

Not available

31

Gravely 59208100

KIT SEAT BACK

Note: SERVICE PART

$175.99

$

Usually ships in 4-12 days

0

32

Gravely 59208800

KIT BACK CUSHION, LIGHT GREY

Note: SERVICE PART

$423.99

$

Usually ships in 4-12 days

0

33

Gravely 59208900

KIT SEAT CUSHION, LIGHT GREY

Note: SERVICE PART

$258.99

$

In Stock, only 3 left!

0

34

Gravely 59210400

KIT ARMREST ASSEMBLY RIGHT HAND

Note: SERVICE PART

$129.99

$

Usually ships in 4-12 days

0

35

Gravely 59210500

KIT ARMREST ASSEMBLY LEFT HAND

Note: SERVICE PART

$129.99

$

Usually ships in 4-12 days

0
