992325 (Pro-Turn 252) - Gravely Pro-Turn 52" Zero-Turn Mower, Kawasaki FX (SN: 031000 - 039999) Deck, Belts, Blades And Spindles - 52" Deck Parts Diagram

Pro-Turn 52" Zero-Turn Mower, Kawasaki FX

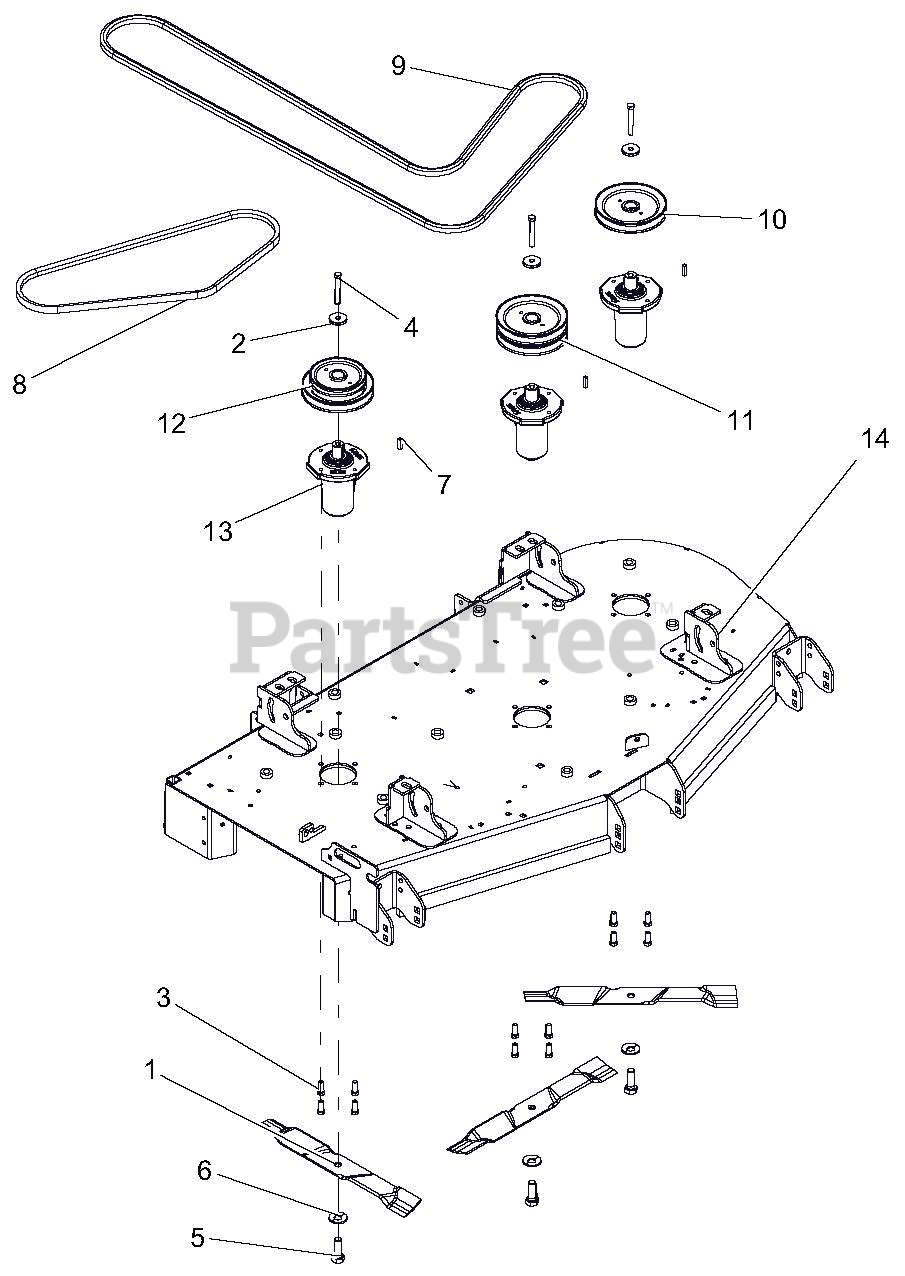

Deck, Belts, Blades And Spindles - 52" Deck Parts Diagram

  • Title

1

Gravely 00273100

BLADE, MULCH - 18.00"

$26.99

$

In Stock, Qty 20+

0

2

Gravely 04530500

RETAINER, SHEAVE SPINDLE

$7.99

$

In Stock, Qty 20+

0

3

Gravely 05900013

BLT-HEX .38-16X1.00 GR5 YWZC EP30
(Superseded to 05901721)

$1.99

$

In Stock, Qty 20+

0

4

Gravely 05963000

BLT-HEX .38-16X2.75 GR8 YWZC
(Superseded to 05901813)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 05978900

BLT, HEX .62-18X1.75 GR8 YWZC
(Superseded to 05901822)

$3.49

$

In Stock, Qty 20+

0

6

Gravely 06445700

WSHR, BLVL .63X1.625X.14

$4.99

$

In Stock, only 3 left!

0

7

Gravely 06611200

KEY-SQ .250X.250X1.00 RC 40-50

$2.99

$

In Stock, Qty 15

0

8

Gravely 07200036

BELT, B 56.00 RAW COGGED

$62.99

$

In Stock, Qty 14

0

9

Gravely 07200509

BELT, BB 118.00 WRAPPED HEX

$133.99

$

Usually ships in 4-12 days

0

10

Gravely 07332167

PULLEY, SINGLE -1" ID X 6.00" OD
(Superseded to 59211700)

Note: BLACK

$82.99

$

In Stock, only 1 left!

0

11

Gravely 07332367

PULLEY, DOUBLE -1" ID X 6.00" OD
(Superseded to 07332300)

Note: BLACK

$77.99

$

In Stock, Qty 16

0

12

Gravely 07340300

PULLEY, DOUBLE -1" ID X 6.00" & 4.75" OD

$69.99

$

In Stock, only 1 left!

0

13

Gravely 59215400

SERVICE, ASM SPINDLE- DUCTILE
(Superseded to 59225700)

$239.99

$

In Stock, Qty 20+

0

14

Gravely 59222900

52" CE MOWER DECK W/SAFETY DECALS

$

$

Not available
