992325 (Pro-Turn 252) - Gravely Pro-Turn 52" Zero-Turn Mower, Kawasaki FX (SN: 022000 - 030999) Belt Covers Parts Diagram

Pro-Turn 52" Zero-Turn Mower, Kawasaki FX

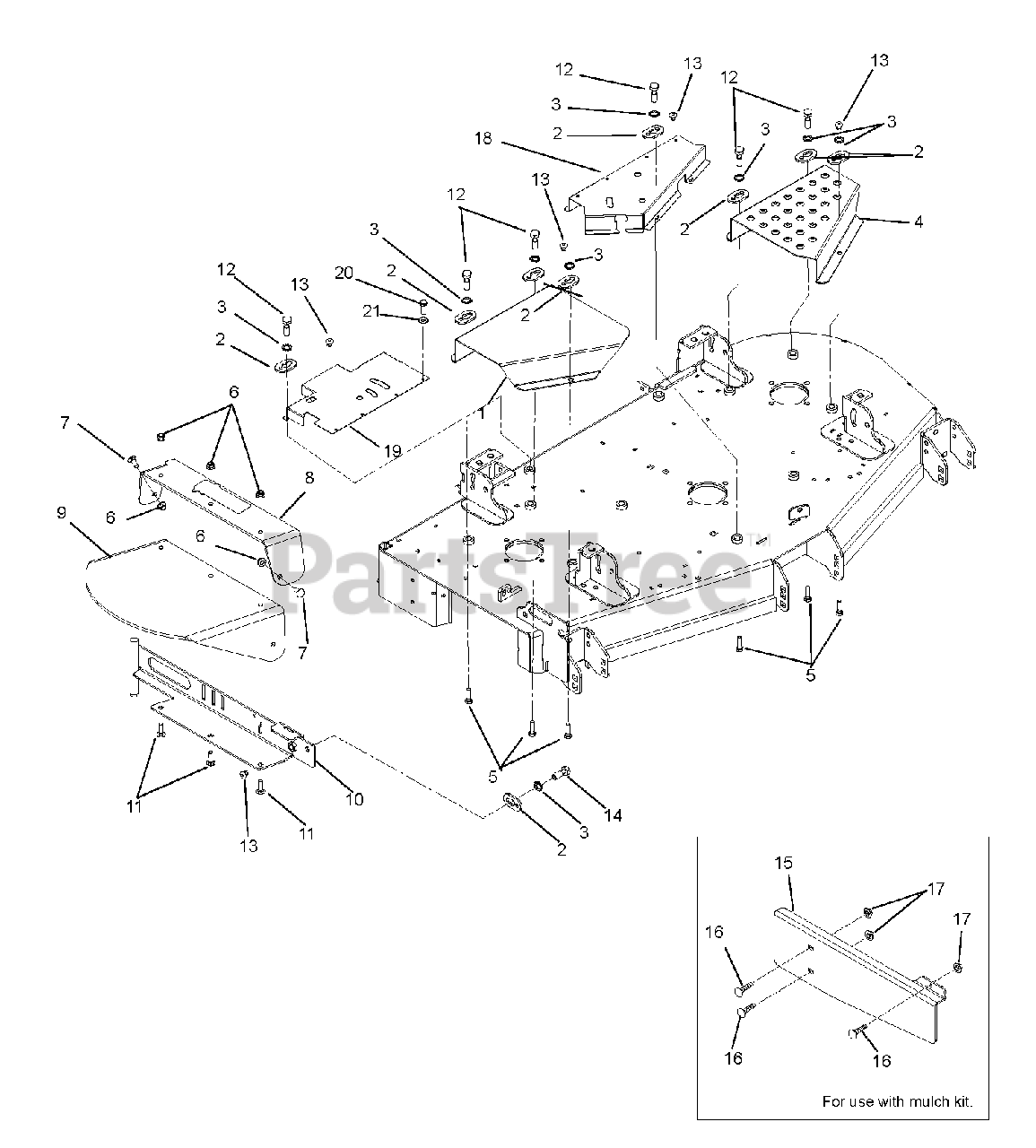

Belt Covers Parts Diagram

  • Title

1

Gravely 04099951

Guard, Right Hand PT200 CE Belt

$

$

Not available

2

Gravely 04183000

Keeper, Bolt

$6.49

$

Usually ships in 4-12 days

0

3

Gravely 06308700

Washer, Locking External .391 x .682 x .036

$1.99

$

Usually ships in 4-12 days

0

4

Gravely 04100051

Guard, Left Hand PT200 CE Belt

$

$

Not available

5

Gravely 05958000

Bolt, Hex .38-16 x 1.25 Grade 5
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 06545500

Nut, Locking Nylon Flange .38-16
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 06223600

Bolt, Round Head Square Neck .38-16 x 1.00 Grade 5
(Superseded to 06200313)

$2.49

$

In Stock, Qty 10

0

8

Gravely 04551553

Support, Rubber Discharge Chute

$90.99

$

Usually ships in 4-12 days

0

9

Gravely 04551600

Chute, Rubber Discharge

$68.99

$

In Stock, Qty 15

0

10

Gravely 04319453

Weldment, 52" Discharge Chute Mounting, CE

$

$

Not available

11

Gravely 06224100

Bolt, Round Head Square Neck .38-16 x 1.25 Grade 5
(Superseded to 06200415)

$2.49

$

In Stock, only 3 left!

0

12

Gravely 07001625

Bolt, Hex .38-16 x 1.25 Grade 5 Captive

$14.99

$

Usually ships in 4-12 days

0

13

06820028

Rivet, Pip .187 YZ

$

$

Not available

14

Gravely 07001634

Bolt, Hex .38-16 1.25 Grade 5 Captive

$

$

Not available

15

Gravely 04392553

Cover, Discharge 52" CE

$

$

Not available

16

Gravely 06200007

Bolt, Round Head Square Neck .31-18 x 1.00 Grade 5 YZ
(Superseded to 06200237)

$2.49

$

In Stock, only 3 left!

0

17

Gravely 06545400

Nut, Locking Nylon Flange .31-18 YZ
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 04506151

Weldment, Front Belt Shield

$97.99

$

Usually ships in 4-12 days

0

19

Gravely 04506251

Shield, Belt Rear

$

$

Not available

20

Gravely 05946800

Bolt, Hex .25-20 x .75 Grade 5 YZ
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 06437300

Washer, Flat Steel .231 x .62 x .065 YZ
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0
