992325 (Pro-Turn 252) - Gravely Pro-Turn 52" Zero-Turn Mower, Kawasaki FX (SN: 011000 - 021999) Seat Parts Diagram

Pro-Turn 52" Zero-Turn Mower, Kawasaki FX

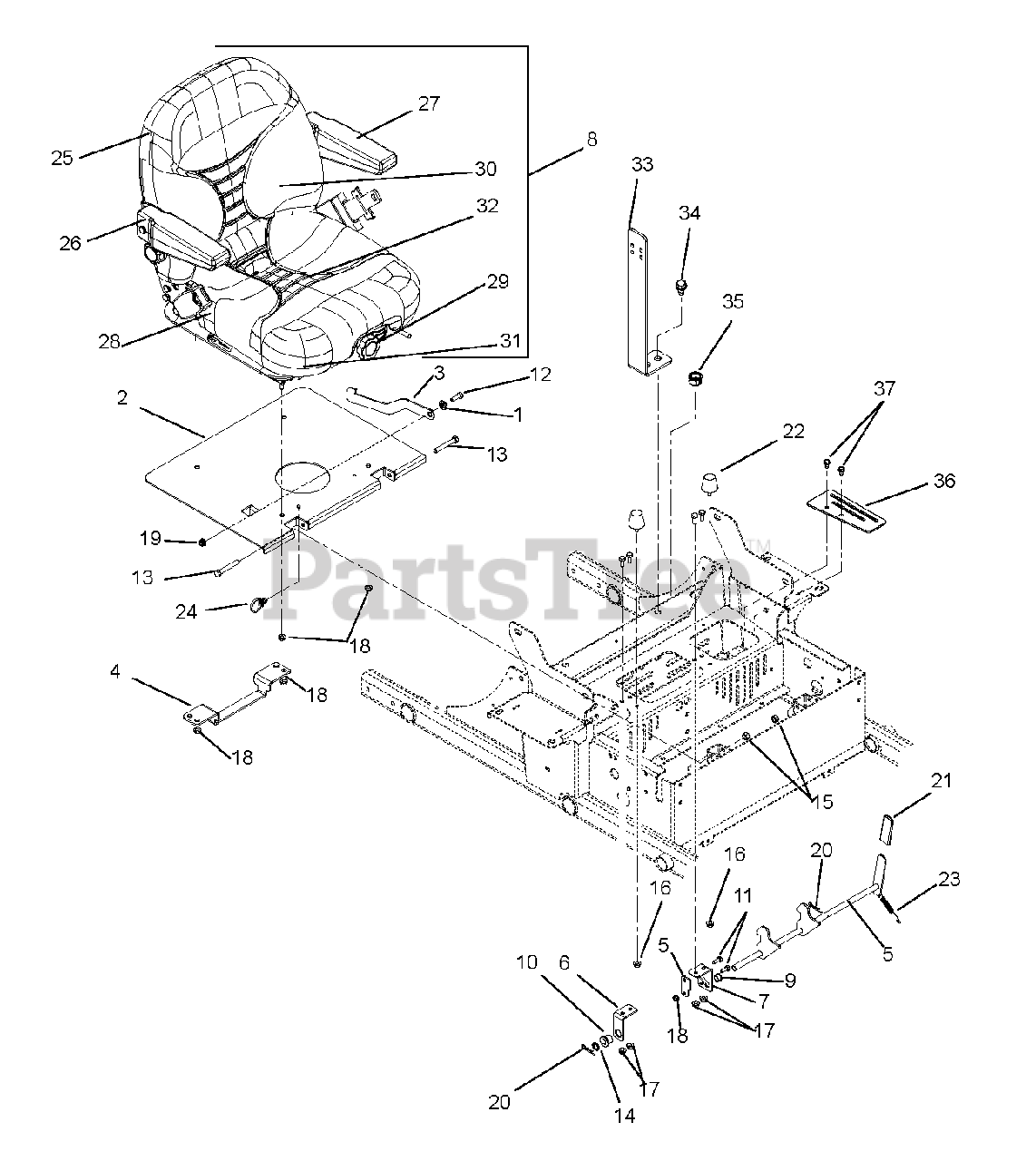

Seat Parts Diagram

  • Title

1

Gravely 01305900

Bushing, Flange .325 x .499 x .26 x .88

$2.49

$

In Stock, only 1 left!

0

2

Gravely 03855751

Seat Plate Weldment – Black

$

$

Not available

3

Gravely 03885600

Stop, Seat Pivot

$7.49

$

Usually ships in 4-12 days

0

4

Gravely 03991551

Bracket, Seat Latch

$

$

Not available

5

Gravely 03991651

Weldment, Seat Latch

$90.99

$

Usually ships in 4-12 days

0

6

Gravely 03991751

Mount, Seat Latch – Right Hand

$

$

Not available

7

Gravely 03991851

Mount, Seat Latch – Left Hand

$

$

Not available

8

Gravely 04052900

Seat, SUSP, with Seat Belt, Light Gray
(Superseded to 09680600)

$930.99

$

In Stock, only 1 left!

0

9

Gravely 05500026

Bushing, Polyliner – .50 Split

$2.99

$

In Stock, Qty 20+

0

10

Gravely 05521100

Bushing, Flange .515 x .750 x .745 x 1.00NY

$2.49

$

In Stock, only 3 left!

0

11

Gravely 05946800

Bolt, Hex .25-20 x .75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 05947000

Bolt, Hex .31-18 x .75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 05958400

Bolt, Hex .38-16 x 2.50 GR5 YWZC
(Superseded to 05901812)

$2.49

$

In Stock, Qty 20+

0

14

Gravely 06441100

Washer, Flat Steel .52 x .827 x .062 YWZC
(Superseded to 06401114)

$2.49

$

In Stock, only 1 left!

0

15

Gravely 06529600

Nut, Locking Center .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 06530400

Nut, Spin Lock Flange .312-18 YWZC
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 06543100

Nut, Locking Top Flange .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 06543500

Nut, Locking Top Flange .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 06545400

Nut, Locking Nylon Flange .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 06701000

Pin, Hair Internal .08 x .38 x 1.42 YWZC
(Superseded to 06700224)

$2.49

$

Usually ships in 4-12 days

0

21

Gravely 07509400

Grip

$

$

Not available

22

Gravely 07533000

Bumper, Rubber Cone, Stud Mount

$14.99

$

Usually ships in 4-12 days

0

23

Gravely 08321100

Spring, Tension .043 x .44 x 3.31 WLD 5.8

$6.49

$

In Stock, Qty 6

0

24

Gravely 07500040

Cable Tie with Tree (.25 HOLE)

Note: (.25 HOLE)

$3.99

$

In Stock, only 1 left!

0

25

Gravely 59208800

Kit, Back Cushion, Light Gray

$423.99

$

Usually ships in 4-12 days

0

26

Gravely 59210400

Kit, Armrest Assembly – Right Side

$129.99

$

Usually ships in 4-12 days

0

27

Gravely 59210500

Kit, Armrest Assembly – Left Side

$129.99

$

Usually ships in 4-12 days

0

28

Gravely 59208900

Kit, Seat Cushion, Light Gray

$258.99

$

In Stock, only 3 left!

0

29

Gravely 59208000

Kit, Seat Knobs

$

$

Not available

30

Gravely 59208100

Kit, Seat Back

$175.99

$

Usually ships in 4-12 days

0

31

Gravely 59207900

Kit, Seat Slides

$

$

Not available

32

Gravely 59207800

Kit, Seat, Spring and Saddle

$175.99

$

Usually ships in 4-12 days

0

33

Gravely 04317553

Mount, Switch PT200 CE

$

$

Not available

34

Gravely 07411500

Screw, Tapping .31-18 x .50 Hex Washer Head Thread Rolling (lubricated or waxed)
(Superseded to 07400124)

Note: (lubricated or waxed)

$1.49

$

In Stock, Qty 20+

0

35

Gravely 07500126

Bushing, Panel Snap .687 x .875 x .56

$3.99

$

In Stock, only 2 left!

0

36

Gravely 04316753

Guard, Seat Plate Finger

$

$

Not available

37

Gravely 07400034

Screw, Tapping .25-20 x .50 Hex Washer Head Thread Rolling
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0
