992325 (Pro-Turn 252) - Gravely Pro-Turn 52" Zero-Turn Mower, Kawasaki FX (SN: 011000 - 021999) Mounting Arms Parts Diagram

Pro-Turn 52" Zero-Turn Mower, Kawasaki FX

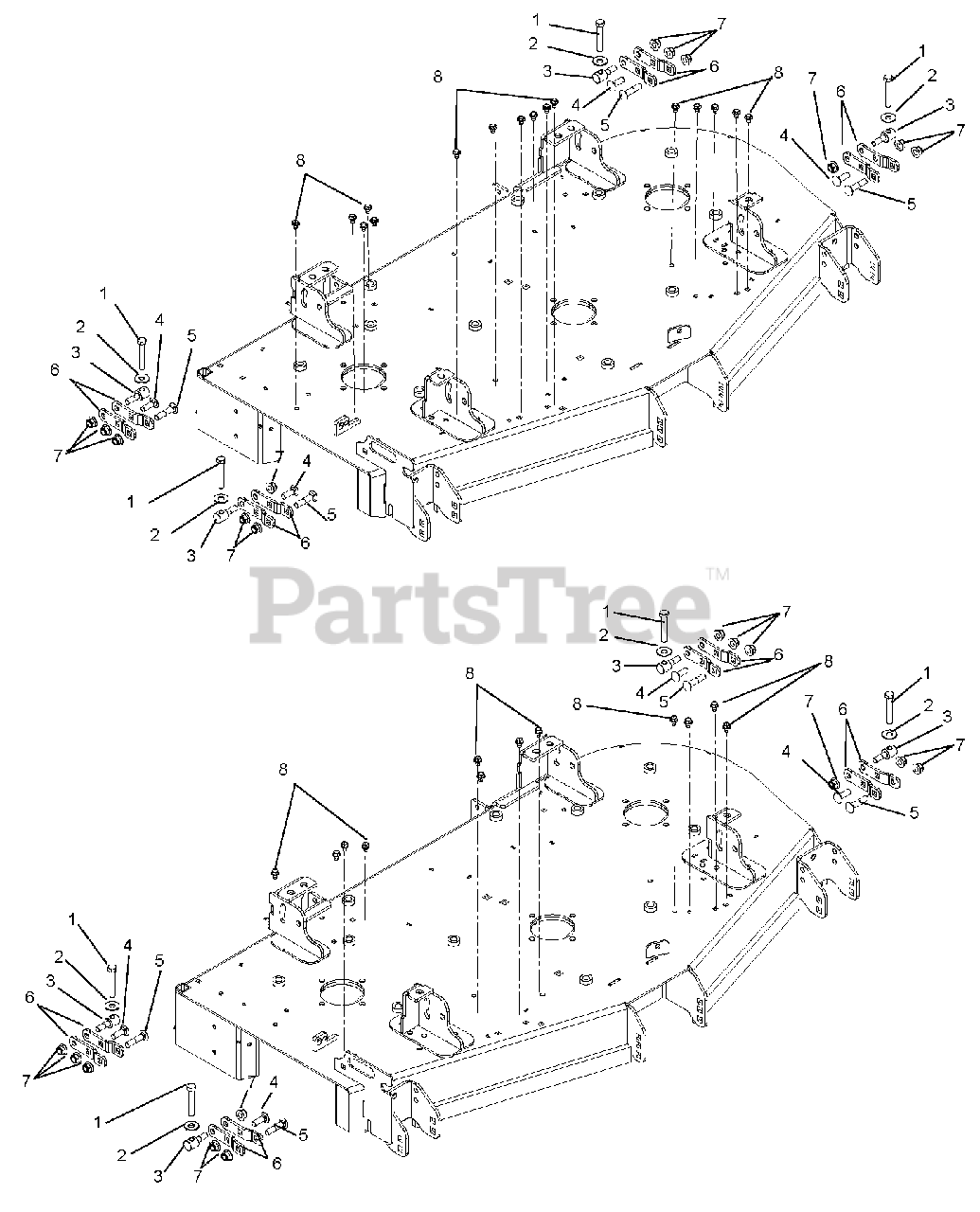

Mounting Arms Parts Diagram

  • Title

1

Gravely 05901421

Bolt, Hex .50-13 x 3.00 Grade 5 Full Thread
(Superseded to 05901737)

$4.99

$

In Stock, only 1 left!

0

2

Gravely 06442000

Washer, Flat Steel .563 x 1.38 x .109
(Superseded to 06401012)

$2.49

$

In Stock, only 1 left!

0

3

Gravely 03972000

Trunnion, .50-13

$48.99

$

In Stock, only 4 left!

0

4

Gravely 06223100

Bolt, Round Head Square Neck .50-13 x 1.50 Grade 5
(Superseded to 06200421)

$4.49

$

Usually ships in 4-12 days

0

5

Gravely 06200119

Bolt, Round Head Square Neck .50-13 x 2.25 Grade 5
(Superseded to 06200423)

$3.99

$

In Stock, Qty 7

0

6

Gravely 03966251

Deck Leveling Bracket – Black

$22.99

$

Usually ships in 4-12 days

0

7

Gravely 06500010

Nut, Locking Nylon Flange .50-13
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 07412900

Screw, Tapping .38-16 x .50 Hex Washer Head
(Superseded to 07400126)

$1.49

$

In Stock, Qty 20+

0
