992325 (Pro-Turn 252) - Gravely Pro-Turn 52" Zero-Turn Mower, Kawasaki FX (SN: 011000 - 021999) Deck Mount Parts Diagram

Pro-Turn 52" Zero-Turn Mower, Kawasaki FX

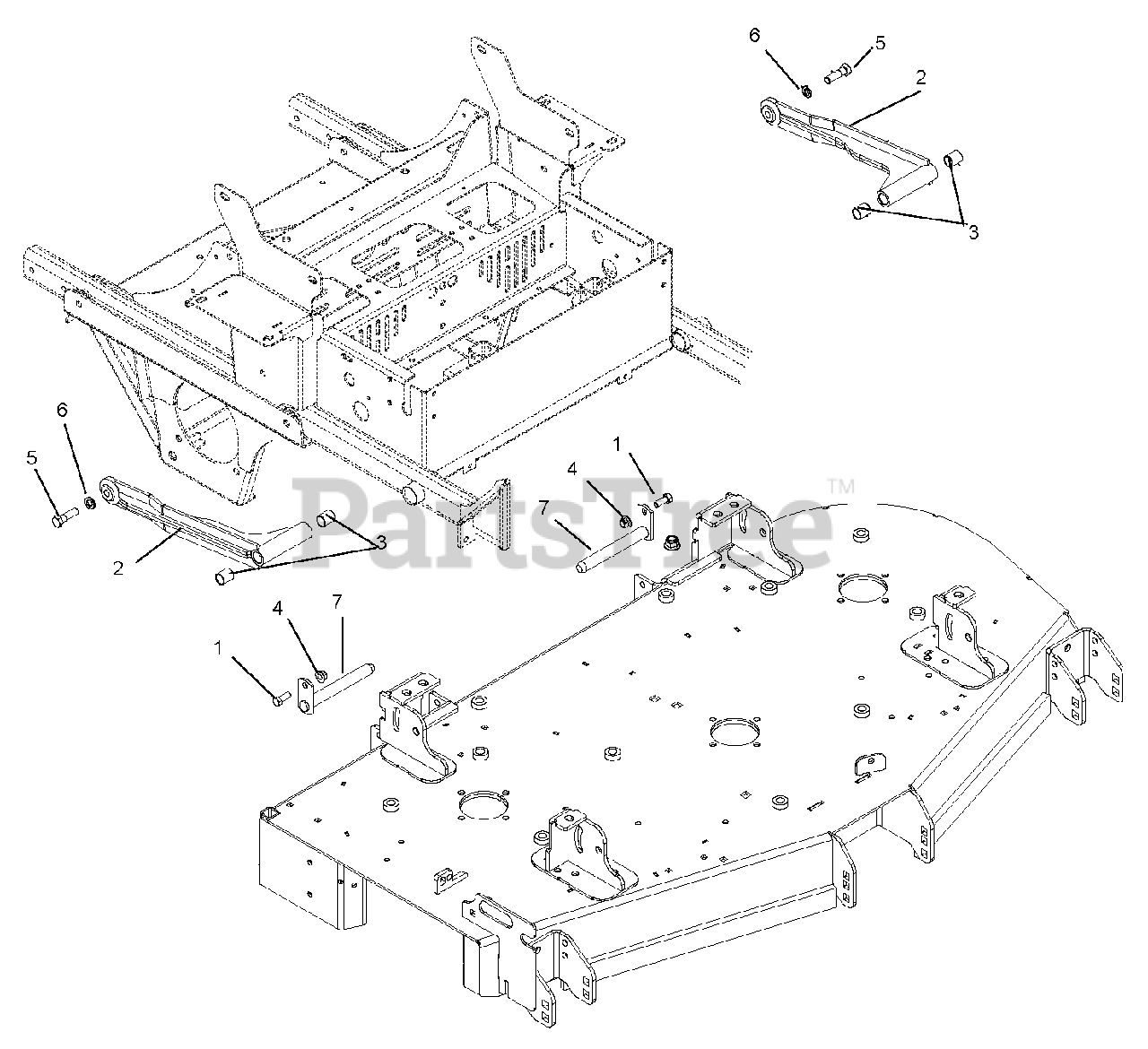

Deck Mount Parts Diagram

  • Title
1

Gravely 05948700

Bolt, Hex .38-16 x 1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

2

Gravely 03985100

Deck Stabilizer Arm – BLACK
(Superseded to 59218600)

$

$

Not available

3

Gravely 05435900

Bearing, .75 x .875 x 1.00

$5.99

$

In Stock, only 3 left!

0

4

Gravely 06545500

Nut, Locking Nylon Flange .38-16
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 05901436

Bolt, Hex .50-13 x 1.75 GR5 EP80 YZ
(Superseded to 05901922)

$3.99

$

In Stock, only 1 left!

0

6

Gravely 06307300

Washer, Lock .50 x .125 REG YWZC
(Superseded to 06300115)

$1.49

$

In Stock, Qty 16

0

7

Gravely 09238900

Weldment, Mower Mounting Pin

$61.99

$

In Stock, only 1 left!

0
