992325 (Pro-Turn 252) - Gravely Pro-Turn 52" Zero-Turn Mower, Kawasaki FX (SN: 011000 - 021999) Deck, Belts, Blades And Spindles Parts Diagram

Pro-Turn 52" Zero-Turn Mower, Kawasaki FX

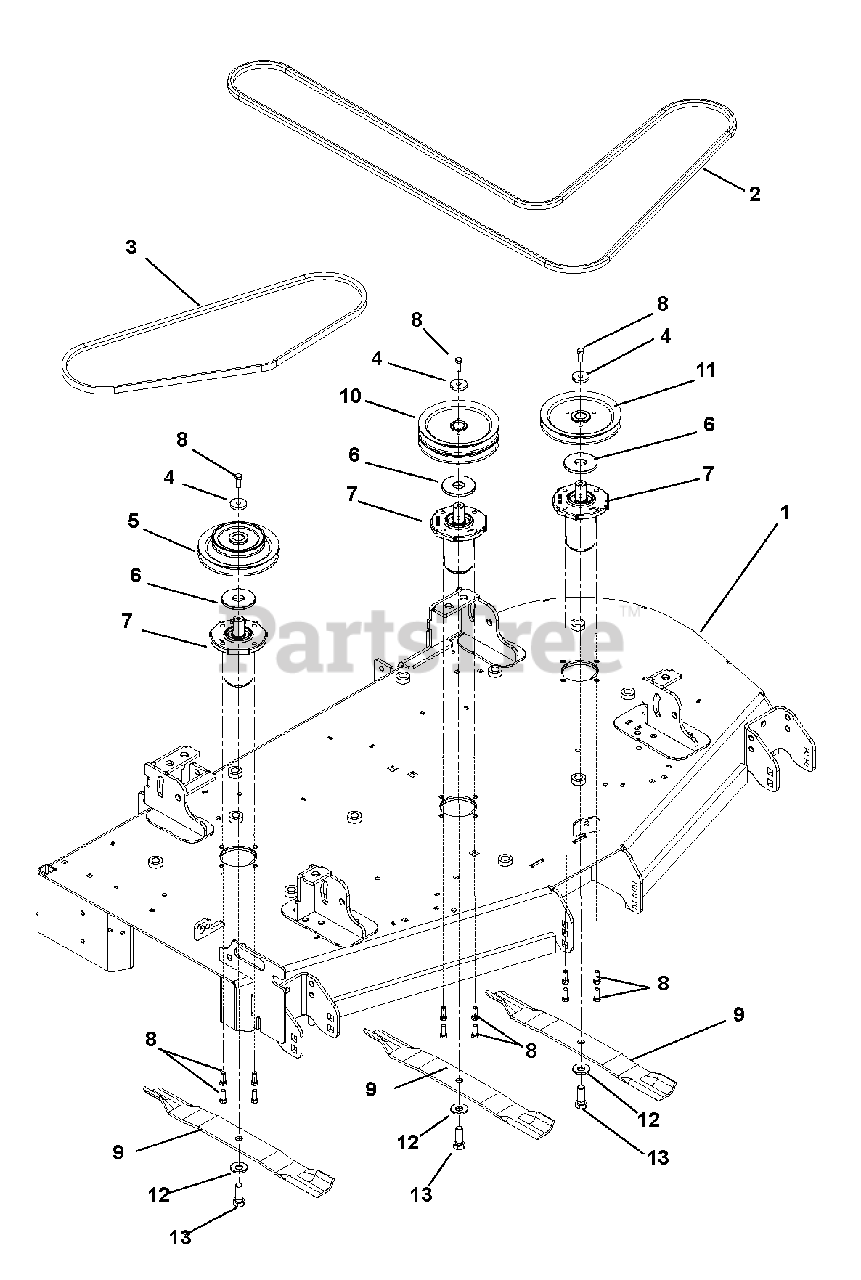

Deck, Belts, Blades And Spindles Parts Diagram

  • Title

1

Gravely 04098453

Deck, 52"

$

$

Not available

2

Gravely 07200509

Hex Belt, BB – Wrapped

$133.99

$

Usually ships in 4-12 days

0

3

Gravely 07200036

V-Belt, B-Cogged

$62.99

$

In Stock, Qty 14

0

4

Gravely 06400006

Washer, Flat Steel .406 x 1.50 x .245
(Superseded to 06401110)

$3.99

$

In Stock, Qty 20+

0

5

Gravely 07332267

Sheave, 1" ID x 6.00" OD and 3.50" OD

$79.99

$

In Stock, only 1 left!

0

6

Gravely 00481000

Retainer, Grease

$9.99

$

In Stock, only 1 left!

0

7

Gravely 59202600

Assembly, Spindle G3500
(Superseded to 59225700)

$239.99

$

In Stock, Qty 20+

0

8

Gravely 05900013

Bolt, Hex .38-16 x 1.00
(Superseded to 05901721)

$1.99

$

In Stock, Qty 20+

0

9

Gravely 00273100

Blade, Mulch 18.00"

$26.99

$

In Stock, Qty 20+

0

10

Gravely 07332367

Pulley, Double
(Superseded to 07332300)

$77.99

$

In Stock, Qty 16

0

11

Gravely 07332167

Pulley, Single 1"ID x 6.00" OD
(Superseded to 59211700)

$82.99

$

In Stock, only 1 left!

0

12

Gravely 06445700

Washer, Bellville .63 x 1.625 x .14

$4.99

$

In Stock, only 3 left!

0

13

Gravely 05978900

Bolt, Hex .62-18 x 1.75 Grade 8
(Superseded to 05901822)

$3.49

$

In Stock, Qty 20+

0
