992325 (Pro-Turn 252) - Gravely Pro-Turn 52" Zero-Turn Mower, Kawasaki FX (SN: 011000 - 021999) Controls Parts Diagram

Pro-Turn 52" Zero-Turn Mower, Kawasaki FX

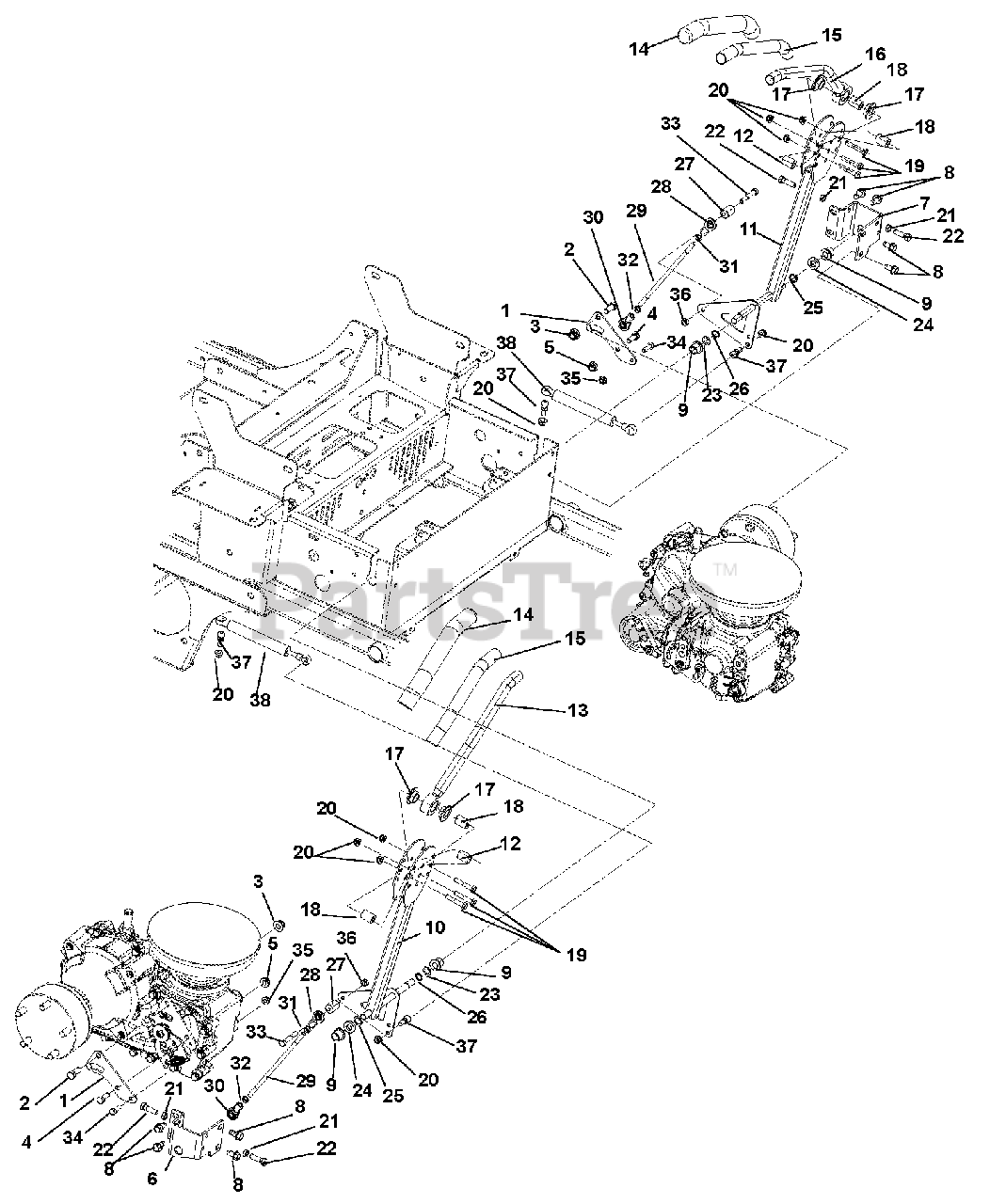

Controls Parts Diagram

  • Title

1

Gravely 03885451

Bracket, Control Mounting

$17.99

$

Usually ships in 4-12 days

0

2

Gravely 05958700

Bolt, Hex .44-14 x 1.00 Grade 5
(Superseded to 05901913)

$2.99

$

In Stock, only 1 left!

0

3

Gravely 06500009

Nut, Locking Nylon Flange .44-14
(Superseded to 06500811)

$5.99

$

In Stock, only 1 left!

0

4

Gravely 05948700

Bolt, Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 06545500

Nut, Locking Nylon Flange .38-16
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 03885253

Bracket, Right Hand Control Stop

$64.99

$

Usually ships in 4-12 days

0

7

Gravely 03955053

Bracket, Left Hand Control Stop

$39.99

$

Usually ships in 4-12 days

0

8

Gravely 07415400

Screw, Tapping .38-16 x .75 Hex Washer Head
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 05521100

Bushing, Flange .515 x .750 x .745 x 1.00 Nylon

$2.49

$

In Stock, only 3 left!

0

10

Gravely 03886551

Weldment, Right Hand Control Arm

$112.99

$

Usually ships in 4-12 days

0

11

Gravely 03886651

Weldment, Left Hand Control Arm

$116.99

$

Usually ships in 4-12 days

0

12

Gravely 05500932

Bushing, Eccentric .31 x .75 x .97

$1.49

$

In Stock, Qty 20+

0

13

Gravely 09235600

Handle Weldment Right Hand

$93.99

$

In Stock, only 1 left!

0

14

Gravely 03929100

Grip, Handlebar 1.00 x 1.38 x 11.3

$14.99

$

In Stock, only 1 left!

0

15

Gravely 03988300

Tube, .88ID x 1.00OD x 10.75

$14.99

$

In Stock, only 2 left!

0

16

Gravely 09235500

Handle Weldment Left Hand

$90.99

$

In Stock, only 1 left!

0

17

Gravely 05525200

Bushing, Flange .762 x 1.48 x .44 Nylon
(Superseded to 05501517)

$

$

Not available

18

Gravely 09235400

Spacer .328 x .76 x 1.01

$

$

Not available

19

Gravely 05957400

Bolt, Hex .31-18 x 1.75 Grade 5
(Superseded to 05901804)

$2.99

$

In Stock, Qty 8

0

20

Gravely 6545400

Nut, Locking Nylon Flange .31-18

$

$

Not available

21

Gravely 06535900

Nut, Hex Jam .375-16
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

22

Gravely 05958000

Bolt, Hex .38-16 x 1.25 Grade 5
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 06439600

Washer, Flat Steel .520 x .810 x .033

$2.49

$

Usually ships in 4-12 days

0

24

Gravely 05532400

Spacer .531 x 1.00 x .195

$3.99

$

In Stock, only 2 left!

0

25

Gravely 00325400

Wave Washer .531 x .781 x .125FH

$0.99

$

In Stock, Qty 20+

0

26

Gravely 05717100

Ring, Retaining External .500 x .050

$2.49

$

In Stock, Qty 8

0

27

Gravely 09235700

Eccentric

$4.99

$

Usually ships in 4-12 days

0

28

Gravely 03787100

Alignaball, 5/16 Right Hand Thread

$12.99

$

In Stock, only 2 left!

0

29

Gravely 03938500

Rod, Steering

$9.99

$

In Stock, only 1 left!

0

30

Gravely 03787200

Alignaball, 5/16 Left Hand Thread
(Superseded to 05298700)

$

$

Not available

31

Gravely 06536700

Nut, Jam .31-24
(Superseded to 06500923)

$0.99

$

In Stock, Qty 13

0

32

Gravely 06544300

Nut, Jam Left Hand .31-24
(Superseded to 06501002)

$

$

Not available

33

Gravely 05957200

Bolt, Hex .31-18 x 2.00 Grade 5
(Superseded to 05901805)

$1.49

$

In Stock, Qty 20+

0

34

Gravely 05946900

Bolt, Hex .31-18 x 1.00 Grade 5
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

35

Gravely 06543100

Nut, Locking Top Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

36

Gravely 06529800

Nut, Locking Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

37

Gravely 03652200

Stud, Ball

$3.49

$

In Stock, only 3 left!

0

38

Gravely 03769800

Damper
(Superseded to 09689700)

$39.99

$

In Stock, Qty 20+

0
