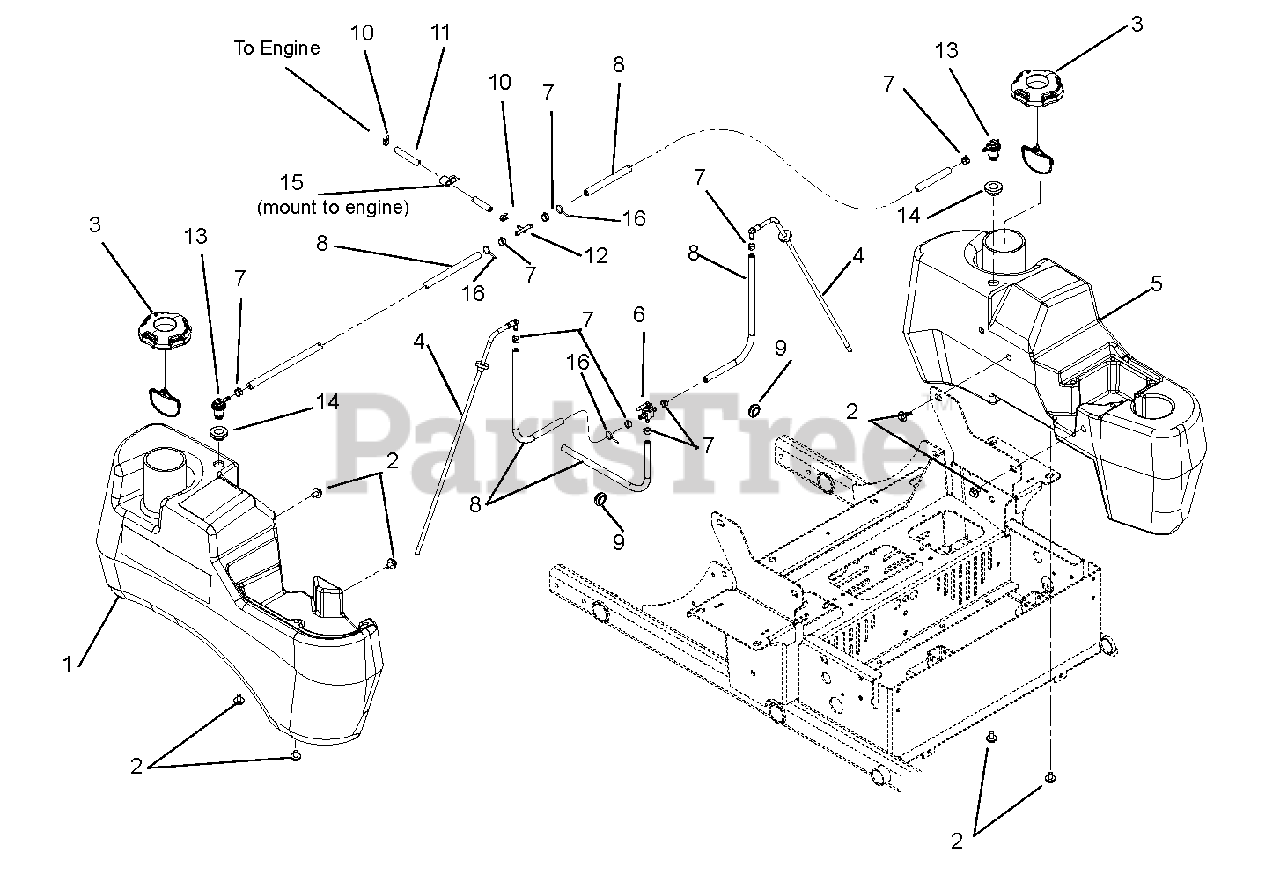

992325 (Pro-Turn 252) - Gravely Pro-Turn 52" Zero-Turn Mower, Kawasaki FX (SN: 002500 - 010999) fuel system Parts Diagram

Pro-Turn 52" Zero-Turn Mower, Kawasaki FX

fuel system Parts Diagram

  • Title

1

Gravely 04245500

Tank, Right Hand Fuel

$220.99

$

Usually ships in 4-12 days

0

2

Gravely 07000018

Bolt, SEMS .31-18 x .62

$3.99

$

In Stock, Qty 20+

0

3

Gravely 04237300

Cap, Fuel, EPA
(Superseded to 09190300)

$33.99

$

In Stock, Qty 20+

0

4

Gravely 03900200

Assembly, Large Tank Fuel Pick-Up
(Superseded to 04320800)

$34.99

$

In Stock, only 2 left!

0

5

Gravely 04245600

Tank, Left Hand Fuel

$

$

Not available

6

Gravely 09233600

Valve, Fuel
(Superseded to 09164400)

$53.99

$

In Stock, only 1 left!

0

7

Gravely 03278800

Clamp, Fuel Line

$1.49

$

In Stock, Qty 20+

0

8

Gravely 03278100

Hose, .25 Low-Perm Bulk Gas

$1.49

$

In Stock, Qty 20+

0

9

Gravely 07500031

Grommet, Rubber 5/8 ID/1.13 OD

$3.49

$

Usually ships in 4-12 days

0

10

Gravely 04097700

Clamp, Hose, Spring .188

$

$

Not available

11

Gravely 03375900

Hose, .188 Low-PERM Bulk Gas

$0.99

$

Usually ships in 4-12 days

0

12

Gravely 04306900

Tee, 1/4HS Run x 3/16HS Branch

$21.99

$

Usually ships in 4-12 days

0

13

Gravely 04068910

Valve, Combination
(Superseded to 05185600)

$17.99

$

In Stock, only 1 left!

0

14

Gravely 04082700

Grommet, Remote Vent Nitrile

$3.49

$

In Stock, Qty 9

0

15

Gravely 06909400

J-Clamp

$3.49

$

In Stock, Qty 8

0

16

Gravely 07500040

Cable Tie with Tree (.25 hole)

Note: (.25 hole)

$3.99

$

In Stock, only 1 left!

0
