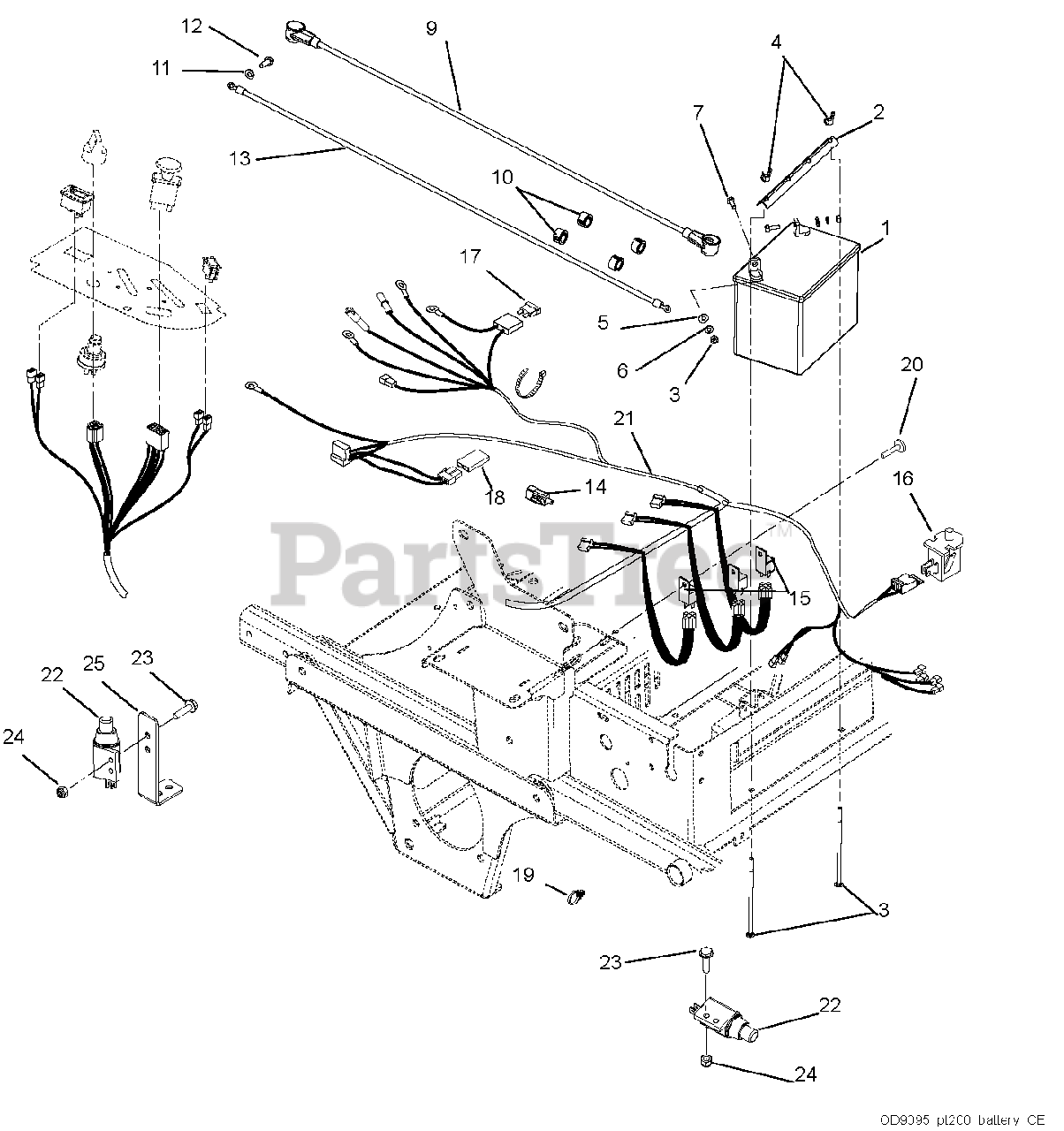

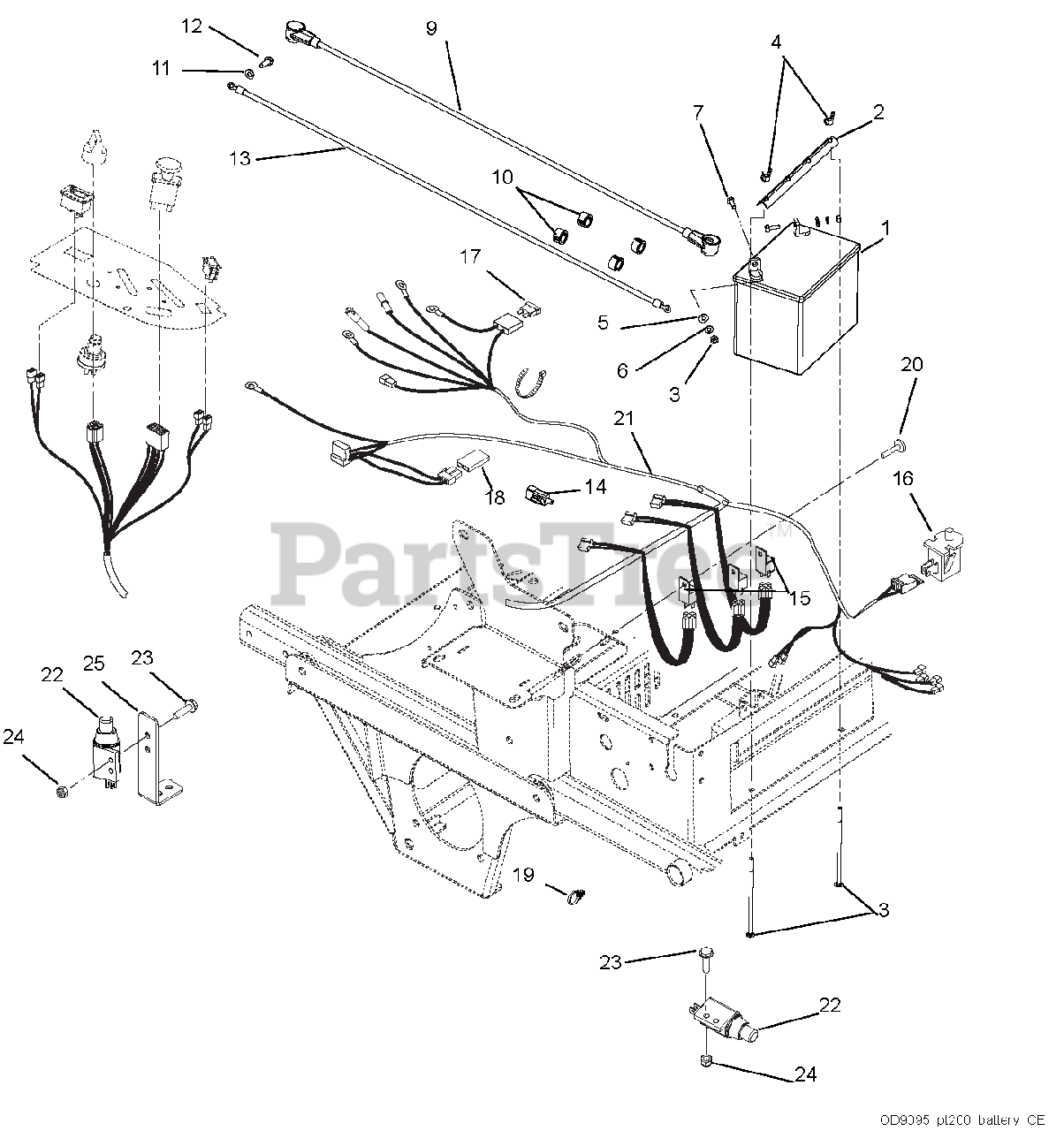

992325 (Pro-Turn 252) - Gravely Pro-Turn 52" Zero-Turn Mower, Kawasaki FX (SN: 002500 - 010999) electrical Parts Diagram

Pro-Turn 52" Zero-Turn Mower, Kawasaki FX

electrical Parts Diagram

  • Title

1

Gravely 01554800

Battery, SMF U1-9U1L/U1H

$

$

Not available

2

Gravely 03494051

Hold Down

$11.99

$

In Stock, only 2 left!

0

3

Gravely 06226400

Bolt, Round Head Square Neck .25-20 x 7.50
(Superseded to 06200424)

$4.99

$

In Stock, Qty 20+

0

4

Gravely 06537500

Nut, Locking Wing .250-20
(Superseded to 06500805)

$4.99

$

In Stock, Qty 20+

0

5

Gravely 06437300

Washer, Flat-Steel .281 x .62 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 06308400

Washer, Locking .25 x .062 Regular
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 05946800

Bolt, Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 06533200

Nut, Hex .25-20
(Superseded to 06500916)

$0.99

$

In Stock, Qty 13

0

9

Gravely 03286900

Cable, POS Battery w/Boots 6 x 35

$34.99

$

Usually ships in 4-12 days

0

10

Gravely 07500126

Bushing, Panel Snap .687 x .875 x .56

$3.99

$

In Stock, only 2 left!

0

11

Gravely 06308600

Washer, Locking .31 x .078 Regular
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 05973300

Bolt, Hex M8-1.25 x 20
(Superseded to 05901628)

$

$

Not available

13

Gravely 09222700

Cable, Negative Battery 35.0"
(Superseded to 03288200)

$22.99

$

Usually ships in 4-12 days

0

14

Gravely 03834300

Switch, Snap-In - N.O./N.O.

$14.99

$

In Stock, only 1 left!

0

15

Gravely 00432100

Relay (Included with Harness)
(Superseded to 00432101)

Note: (Included with Harness)

$22.99

$

In Stock, Qty 20+

0

16

Gravely 02754100

Switch, Snap Mounting

$9.49

$

In Stock, Qty 20+

0

17

Gravely 00524600

Fuse, 30 Amp (Included with Harness)

Note: (Included with Harness)

$

$

Not available

18

Gravely 09293500

Diode, Connector Shell
(Superseded to 09293501)

$11.99

$

In Stock, only 3 left!

0

19

Gravely 07500040

Cable Tie with TREE (.25 HOLE)

Note: (.25 HOLE)

$3.99

$

In Stock, only 1 left!

0

20

Gravely 07500125

Rivet, .25 Nylon Panel

$1.49

$

In Stock, Qty 18

0

21

Gravely 03960900

Harness, Vertical A/C Wiring

$170.99

$

Usually ships in 4-12 days

0

22

Gravely 09251900

Switch, Single Pole (N.O.) with Cover

Note: (N.O.) with Cover

$22.99

$

Usually ships in 4-12 days

0

23

Gravely 06116900

Screw, Machine 10-24 x .75 Hex Washer Head
(Superseded to 05901837)

$2.49

$

In Stock, Qty 15

0

24

Gravely 06536000

Nut, Locking Nylon 10-24 with Insert
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

25

Gravely 04317553

Mount, Switch PT200 CE

$

$

Not available

Gravely 04180800

Harness, CE Foot and Seat Plate Switch

$23.99

$

Usually ships in 4-12 days

0
