992325 (Pro-Turn 252) - Gravely Pro-Turn 52" Zero-Turn Mower, Kawasaki FX (SN: 002500 - 010999) deck lift Parts Diagram

Pro-Turn 52" Zero-Turn Mower, Kawasaki FX

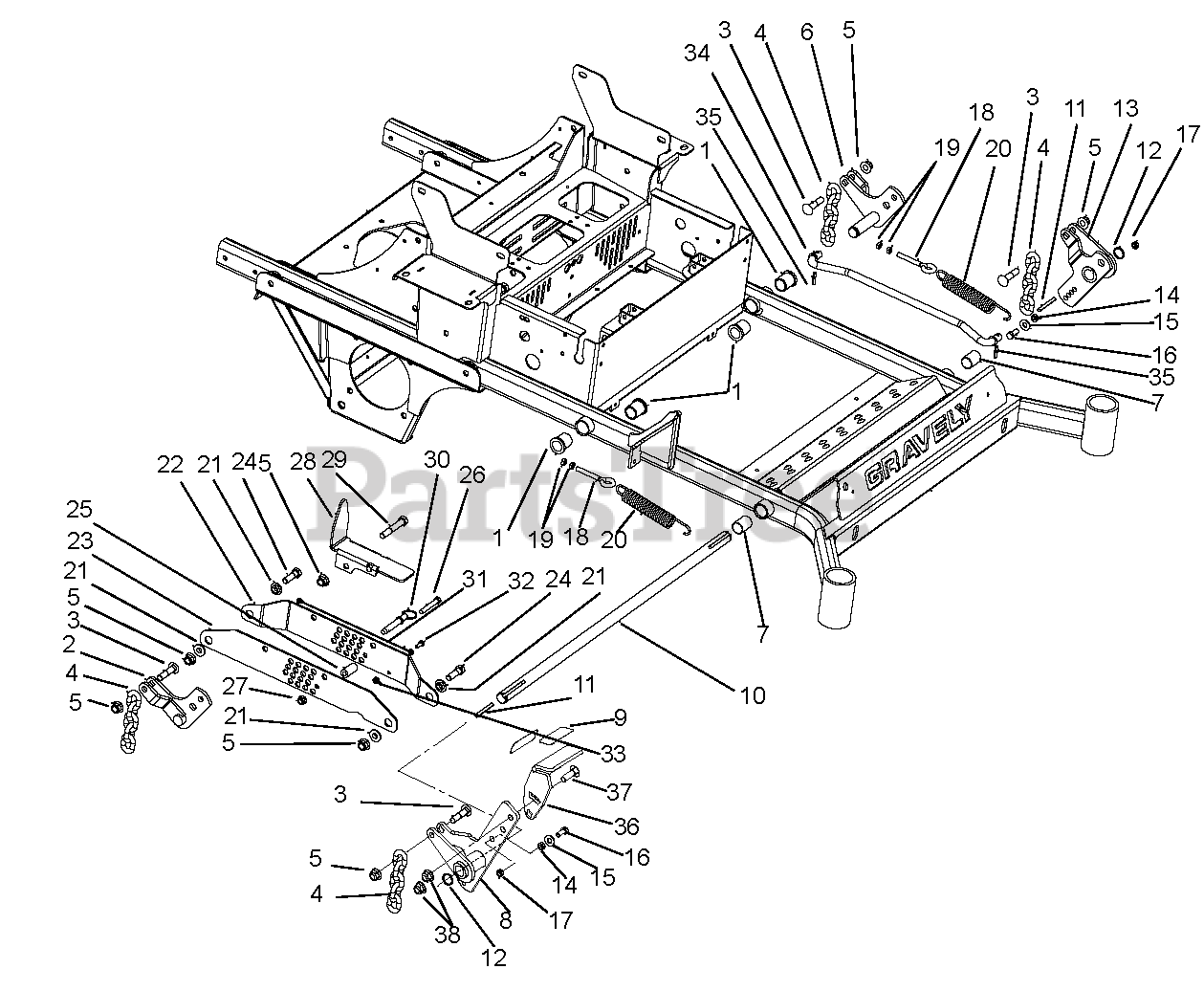

deck lift Parts Diagram

  • Title

1

Gravely 05500934

Bushing, Flange 1.00 x 1.25 x 1.50 x 1.50

$6.99

$

In Stock, Qty 20+

0

2

Gravely 03858000

Weldment, Right Hand Rear Deck Lift

$109.99

$

Usually ships in 4-12 days

0

3

Gravely 06200119

Bolt, Round Head Square Neck .50-13 x 2.25 G5YZ
(Superseded to 06200423)

$3.99

$

In Stock, Qty 7

0

4

Gravely 03975600

Chain, 5 Link 3/8 Mower Lift

$25.99

$

Usually ships in 4-12 days

0

5

Gravely 06500010

Nut, Locking Nylon-Flange .50-13
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 03858100

Weldment, Left Hand Rear Deck Lift

$108.99

$

Usually ships in 4-12 days

0

7

Gravely 05500034

Bushing,1.00ID x 1.125OD x 1.50LG

$6.99

$

In Stock, only 3 left!

0

8

Gravely 04184400

Weldment, Adjustable Deck Foot Lift

$153.99

$

Usually ships in 4-12 days

0

9

Gravely 00270100

Grip Pedal 1.50 x 3.00

$3.49

$

In Stock, Qty 5

0

10

Gravely 03971300

Shaft, Front Mower Lift

$179.99

$

Usually ships in 4-12 days

0

11

Gravely 06602600

Key, SQ .25 x 2.50 x .25 SAE

$5.99

$

In Stock, only 3 left!

0

12

Gravely 05707300

Ring, Retaining-E x T 1.00 x .078

$2.99

$

In Stock, Qty 9

0

13

Gravely 03857900

Weldment, Front Left Hand Deck Lift

$165.99

$

Usually ships in 4-12 days

0

14

Gravely 05508900

Bushing, Sleave .377 x .624 x .235

$9.49

$

In Stock, only 1 left!

0

15

Gravely 06435900

Washer, Flat Steel.438 x 1.00 x .083
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 05948700

Bolt, Hex .38-16 x 1.00 GR5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 06537200

Nut, Locking Center-JAM .375-16
(Superseded to 06500914)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 07030000

Bolt, Eye .375-16 x 2.50

$7.99

$

Usually ships in 4-12 days

0

19

Gravely 06535900

Nut, Hex-JAM .375-16
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 08319000

Spring, Tension .162 x 1.25 x 8.25 WLD 25

$33.99

$

In Stock, Qty 6

0

21

Gravely 03989100

Bushing, Flange .515 x .750 x .395 x 1.120

$3.49

$

In Stock, Qty 20+

0

22

Gravely 03954751

Bracket, Right Hand Lift/Cut Height Inboard

$53.99

$

Usually ships in 4-12 days

0

23

Gravely 03954651

Bracket, Right Hand Lift/Cut Height Outboard

$45.99

$

Usually ships in 4-12 days

0

24

Gravely 05970600

Bolt, Hex .50-13 x 1.75 GR5
(Superseded to 05901939)

$3.99

$

In Stock, only 2 left!

0

25

Gravely 03954800

Spacer, .375 x .750 x 1.54

$6.49

$

Usually ships in 4-12 days

0

26

Gravely 05958400

Bolt, Hex .38-16 x 2.50 GR5
(Superseded to 05901812)

$2.49

$

In Stock, Qty 20+

0

27

Gravely 06545500

Nut, Locking Nylon-Flange .38-16
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

28

Gravely 03864051

Weldment, Mechnical Lock-Up

$23.99

$

Usually ships in 4-12 days

0

29

Gravely 05960000

Bolt, Hex .50-13 x 3.25 GR5
(Superseded to 05901634)

$3.99

$

Usually ships in 4-12 days

0

30

Gravely 03957100

Pin, .50 x 2.00
(Superseded to 04822400)

$9.49

$

In Stock, only 2 left!

0

31

Gravely 06900317

Cable, 12.0 Lanyard, Nylon

$3.49

$

In Stock, only 2 left!

0

32

Gravely 05946800

Bolt, Hex .25-20 x .75 GR5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

33

Gravely 06500012

Nut, Locking Nylon-Flange .25-20
(Superseded to 06500813)

$1.49

$

In Stock, Qty 15

0

34

Gravely 04063100

Rod, Lift Assist 19.35"

$68.99

$

In Stock, only 2 left!

0

35

Gravely 05800001

Pin, Roll .250 x 1.25 Stainless Steel

$2.99

$

Usually ships in 4-12 days

0

36

Gravely 04088651

Adjustable Foot Lift Pedal, Black

$56.99

$

Usually ships in 4-12 days

0

37

Gravely 06223100

Bolt, Round Head Square Neck .50 x 13 x 1.50 G5YZ
(Superseded to 06200421)

$4.49

$

Usually ships in 4-12 days

0

38

Gravely 06500010

Nut, Locking, Nylon, Flange .50-13
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0
