992325 (Pro-Turn 252) - Gravely Pro-Turn 52" Zero-Turn Mower, Kawasaki FX (SN: 002500 - 010999) brakes and transaxles Parts Diagram

Pro-Turn 52" Zero-Turn Mower, Kawasaki FX

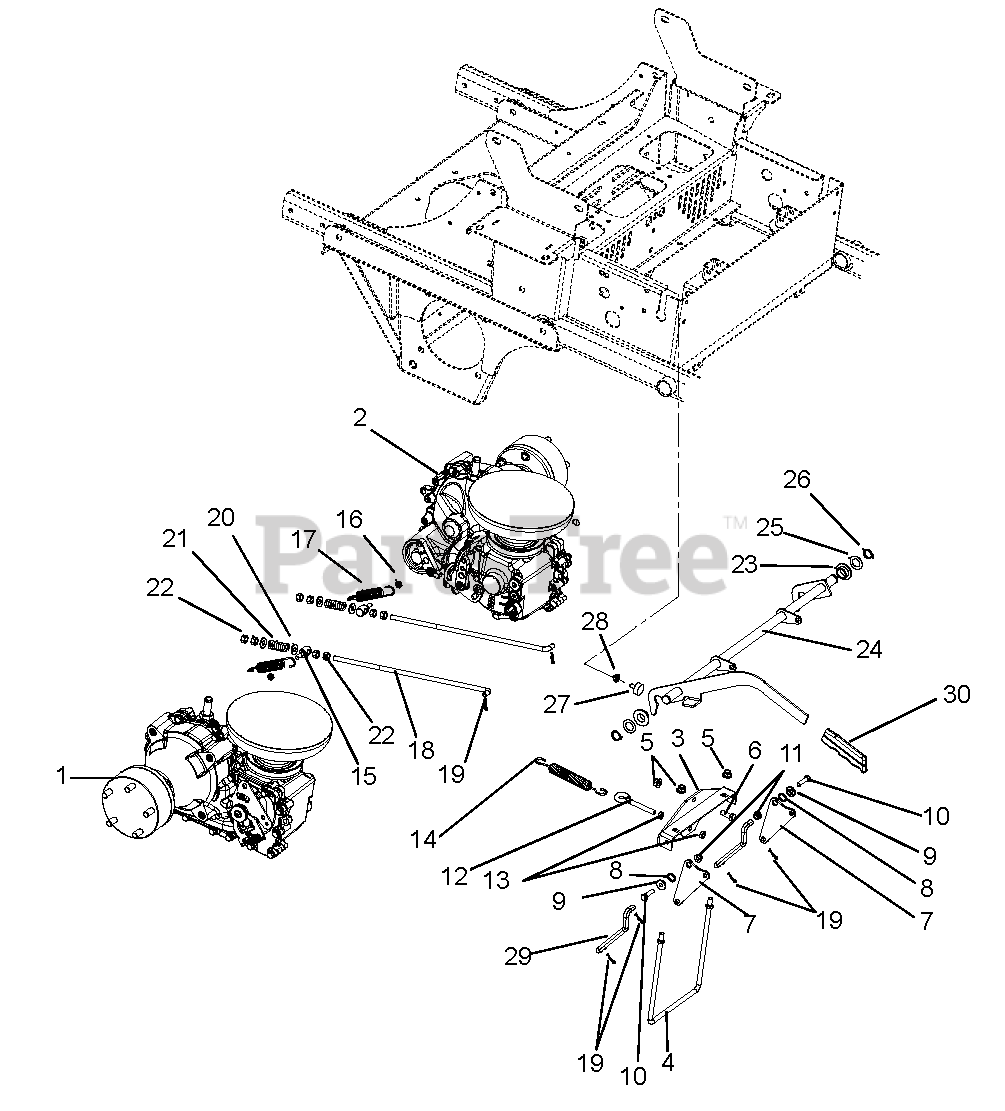

brakes and transaxles Parts Diagram

  • Title

1

Gravely 03935200

Transmission, Right Hand HG ZT-5400

$2650.99

$

Usually ships in 4-12 days

0

2

Gravely 03935300

Transmission, Left Hand HG ZT-5400

$2650.99

$

Usually ships in 4-12 days

0

3

Gravely 03898551

Weldment, Spring Anchor Bracket

$21.99

$

Usually ships in 4-12 days

0

4

Gravely 03975800

Rod, Brake Mounting

$23.99

$

Usually ships in 4-12 days

0

5

Gravely 06545500

Nut, Locking Nylon-Flange .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 05948700

Bolt, Hex .38-16 x 1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 03969451

Plate, Brake Pivot

$12.99

$

Usually ships in 4-12 days

0

8

Gravely 00325400

Wave Washer .531 x .781 x .125FH

$0.99

$

In Stock, Qty 20+

0

9

Gravely 05514800

Bushing, Flange .32 x .500 x .344 x .880

$2.49

$

In Stock, only 3 left!

0

10

Gravely 05947500

Bolt, Hex .31-18 x 1.25 GR5 YWZC
(Superseded to 05901803)

$2.49

$

In Stock, Qty 12

0

11

Gravely 06545400

Nut, Locking Nylon-Flange .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 07030000

Bolt, Eye .375-16 x 2.50 YWZC

$7.99

$

Usually ships in 4-12 days

0

13

Gravely 06535900

Nut, Hex-JAM .375-16 YWZC
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 08300433

Spring, Extension
(Superseded to 08300728)

$26.99

$

In Stock, Qty 20+

0

15

Gravely 03969600

Trunnion, .38-16

$17.99

$

Usually ships in 4-12 days

0

16

Gravely 06500011

Nut, Locking Center-Jam .31-18 YWZC
(Superseded to 06500913)

$0.99

$

In Stock, Qty 5

0

17

Gravely 08333200

Spring, Tension .105 x .85 x 5.00 WLD 40

$14.99

$

In Stock, only 1 left!

0

18

Gravely 03975700

Rod, Brake Adjustment

$28.99

$

Usually ships in 4-12 days

0

19

Gravely 06714800

Pin, Hair
(Superseded to 06700223)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 06435700

Washer, Flat Steel.38 x .875 x .083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 08300027

Spring, Compression .142 x .710 x 1.75

$9.49

$

In Stock, only 2 left!

0

22

Gravely 06529400

Nut, Hex .38-16 YWZC
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

23

Gravely 05525200

Bushing, Flange .762 x 1.48 x .44 NYL
(Superseded to 05501517)

$

$

Not available

24

Gravely 03863100

Weldment, Brake Interlock

$83.99

$

Usually ships in 4-12 days

0

25

Gravely 06413400

Washer, Hardened Thrust .758 x 1.23 x .031

$3.49

$

In Stock, only 2 left!

0

26

Gravely 05714600

Ring, Retaining-EXT .689 x .078

$2.49

$

In Stock, Qty 5

0

27

Gravely 07533600

Bumper, Rubber

$11.99

$

In Stock, only 1 left!

0

28

Gravely 06530400

Nut, Spin Lock-Flange .312-18 YWZC
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

29

Gravely 09268300

Linkage, Brake Actuating

$34.99

$

Usually ships in 4-12 days

0

30

Gravely 03826900

Grip, Parking Brake (Yellow)

Note: (Yellow)

$3.99

$

In Stock, only 1 left!

0
