992325 (Pro-Turn 252) - Gravely Pro-Turn 52" Zero-Turn Mower, Kawasaki FX (SN: 002500 - 010999) belt covers Parts Diagram

Pro-Turn 52" Zero-Turn Mower, Kawasaki FX

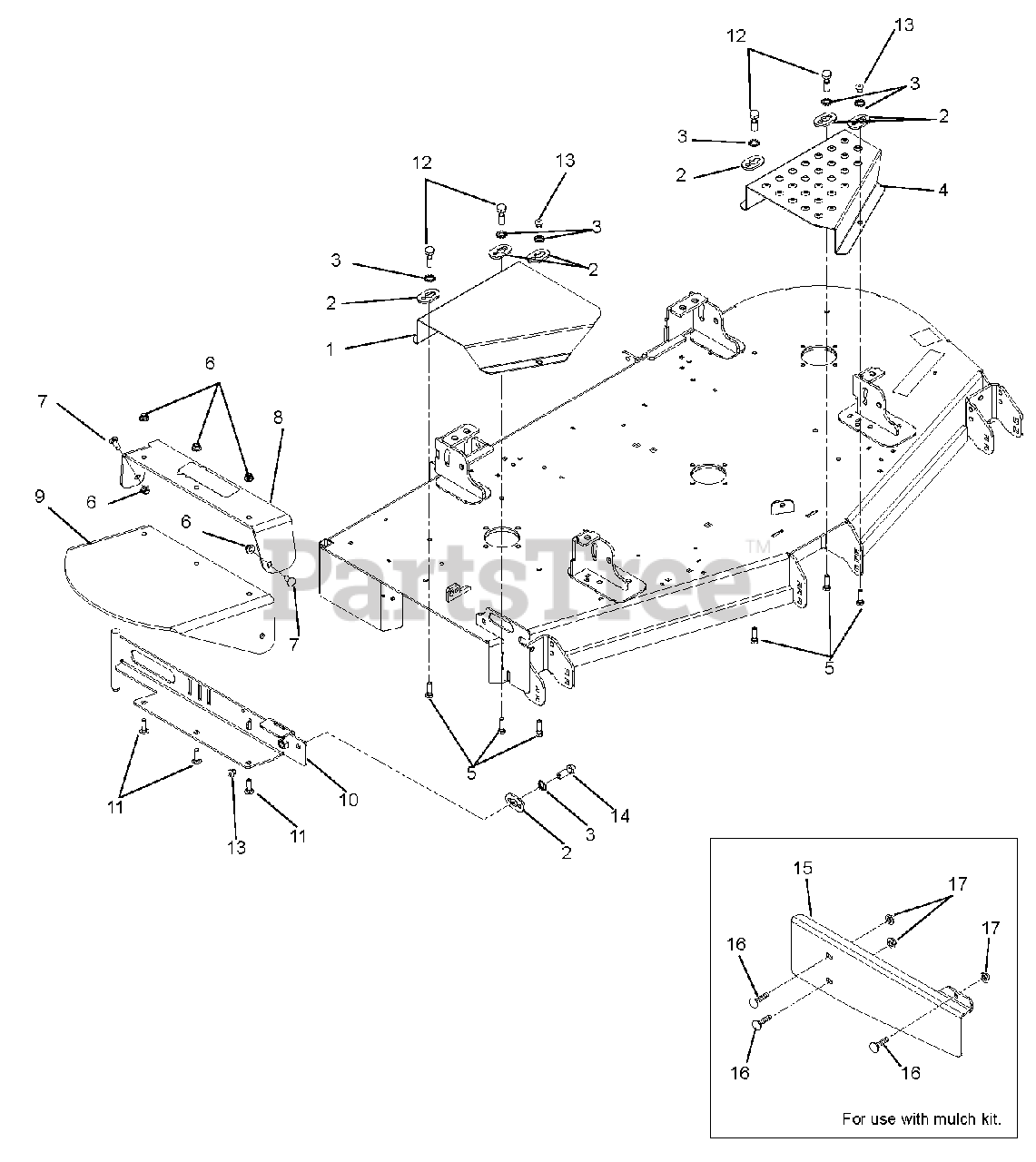

belt covers Parts Diagram

  • Title

1

Gravely 04099951

Guard, Right Hand PT200 CE Belt

$

$

Not available

2

Gravely 04183000

Keeper, Bolt

$6.49

$

Usually ships in 4-12 days

0

3

Gravely 06308700

Washer, Locking Ext. .391 x .682 x .036

$1.99

$

Usually ships in 4-12 days

0

4

Gravely 04100051

Guard, Left Hand PT200 CE Belt

$

$

Not available

5

Gravely 05958000

Bolt, Hex .38-16 x 1.25 Grade 5
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 06545500

Nut, Locking Nylon Flange .38-16
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 06223600

Bolt, Round Head Square Neck .38-16 x 1.00 Grade 5
(Superseded to 06200313)

$2.49

$

In Stock, Qty 10

0

8

Gravely 00472353

Support, Rubber Discharge Chute

$110.99

$

Usually ships in 4-12 days

0

9

Gravely 00377800

Chute, Rubber Discharge

$68.99

$

In Stock, only 4 left!

0

10

Gravely 04319453

Weldment, 52" Discharge Chute Mounting, CE

$

$

Not available

11

Gravely 06224100

Bolt, Round Head Square Neck .38-16 x 1.25 Grade 5
(Superseded to 06200415)

$2.49

$

In Stock, only 3 left!

0

12

Gravely 07001625

Bolt, Hex .38-16 x 1.25 Captive

$14.99

$

Usually ships in 4-12 days

0

13

Gravely 06800028

Rivet, Pop .187 (IFI 114 Gr. 30)
(Superseded to 06800140)

Note: (IFI 114 Gr. 30)

$0.99

$

In Stock, Qty 14

0

14

Gravely 07001634

Bolt, Hex .38-16 x 1.25 Cap .37

$

$

Not available

15

Gravely 04392553

Cover-Discharge 52" CE

$

$

Not available

16

Gravely 06200007

Bolt, Round Head Square Neck .31-18 x 1.00 Grade 5
(Superseded to 06200237)

$2.49

$

In Stock, only 3 left!

0

17

Gravely 06545400

Nut, Locking Nylon Flange .31-18
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0
