992325 (Pro-Turn 252) - Gravely Pro-Turn 52" Zero-Turn Mower, Kawasaki FX (SN: 000101 - 002499) Control Panel Parts Diagram

Pro-Turn 52" Zero-Turn Mower, Kawasaki FX

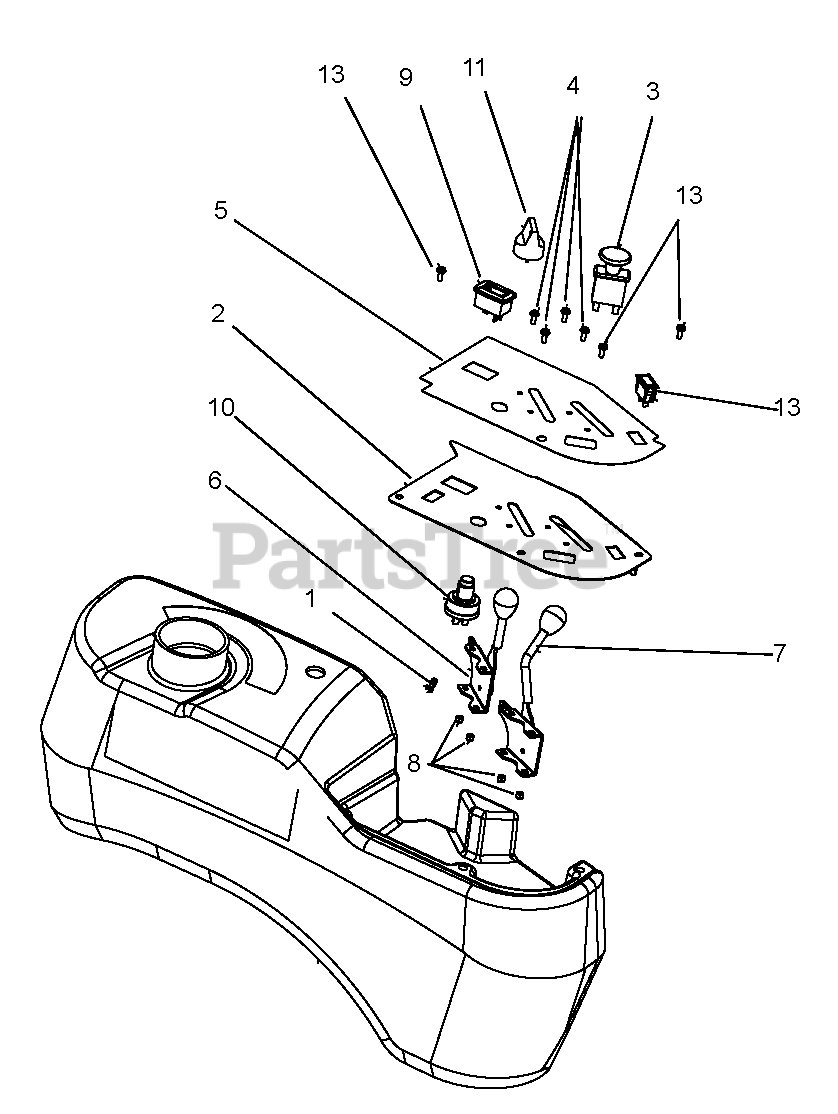

Control Panel Parts Diagram

  • Title

1

Gravely 07500040

Cable Tie w/ Tree (.25 HOLE)

Note: (.25 HOLE)

$3.99

$

In Stock, only 1 left!

0

2

Gravely 03961651

Panel, Control

$51.99

$

Usually ships in 4-12 days

0

3

Gravely 01545600

Switch, Clutch

$25.99

$

In Stock, Qty 20+

0

4

Gravely 06116700

Screw-Machine 10-24X.50 Hex Washer Head
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 03971800

Decal, Control Panel

$45.99

$

Usually ships in 4-12 days

0

6

Gravely 06116700

Cable, Pro-Control Choke
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 06900411

Cable, Pro-Contro Throttle

$51.99

$

In Stock, only 2 left!

0

7

Gravely 07500132

KNOB-CONTROL-BLACK .38-16 X .50

Note: NOT SHOWN

$11.99

$

In Stock, Qty 8

0

8

Gravely 06536000

Nut, Locking Nylon 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 03966800

Meter, Hour w/Maintenance
(Superseded to 09497400)

$23.99

$

In Stock, only 2 left!

0

10

Gravely 00464000

Switch, Ignition
(Superseded to 04331600)

$45.99

$

In Stock, Qty 20+

0

11

Gravely 09287000

Key, w/ Shield

$14.99

$

In Stock, Qty 20+

0

12

Gravely 08841200

Light, Indicator
(Superseded to 05128700)

$6.99

$

In Stock, only 1 left!

0

13

Gravely 06100211

Screw, Machine 10-24 x .50 Hex Washer Head Stainless

$2.99

$

In Stock, Qty 11

0
