992324 (PM 260H) - Gravely Pro-Master 60" Zero-Turn Mower, 27hp Daihatsu, Rear Discharge (SN: 006000 & Above) Clutch And Flywheel Parts Diagram

Pro-Master 60" Zero-Turn Mower, 27hp Daihatsu, Rear Discharge

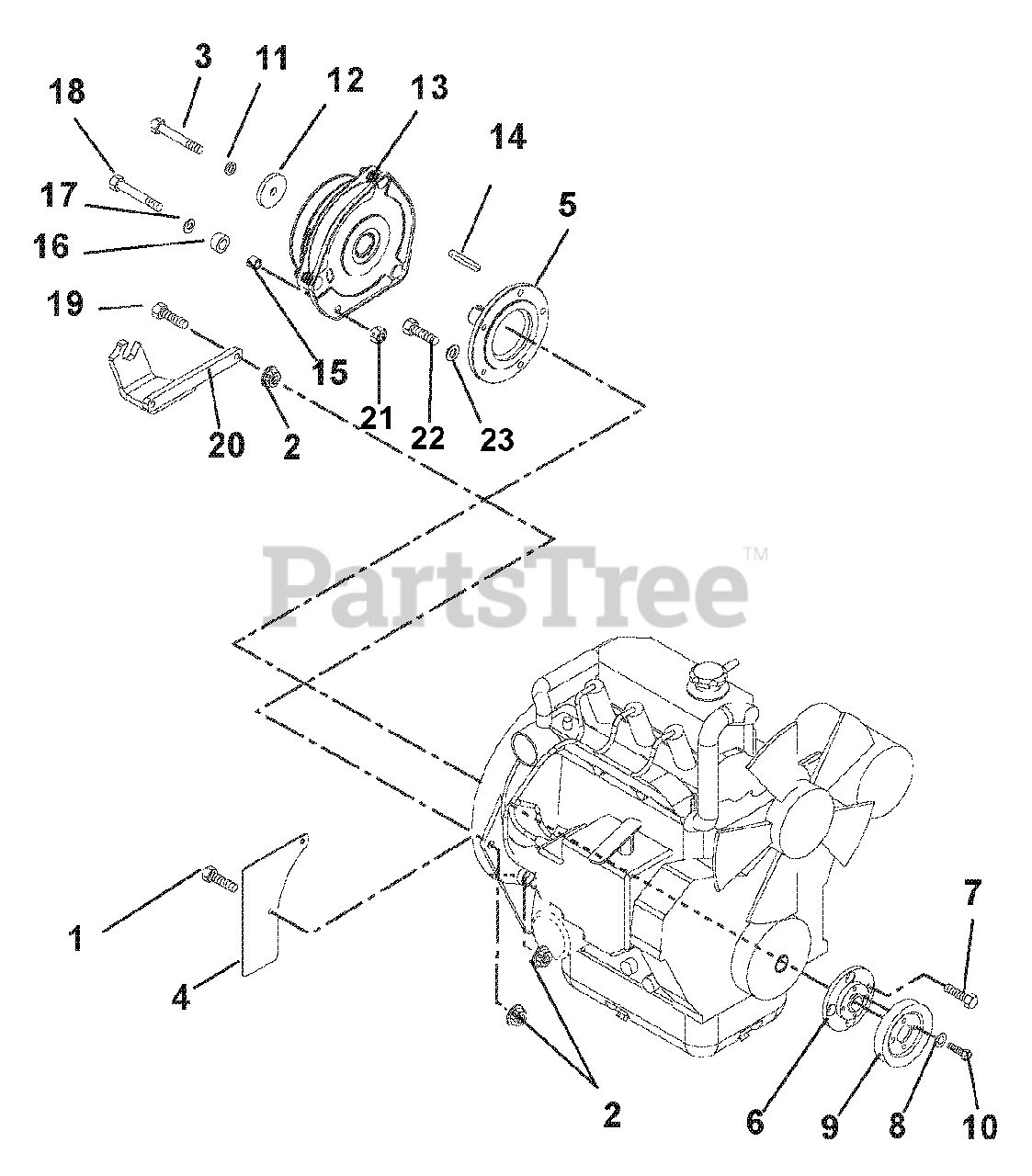

Clutch And Flywheel Parts Diagram

  • Title
1

Gravely 05947000

Bolt, Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

2

Gravely 06543100

Nut, Locking Top Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 05900036

Bolt, Hex .44-20 x 2.50 Grade 5 YZ EP80

$13.99

$

In Stock, only 1 left!

0

4

Gravely 09273851

Guard, Flywheel

$

$

Not available

5

Gravely 00447200

Stub Shaft

$

$

Not available

6

Gravely 09265600

Adapter, Sheave

$96.99

$

Usually ships in 4-12 days

0

7

Gravely 05978700

Bolt, M8 1.25 x 25

$

$

Not available

8

Gravely 06308400

Washer, Locking .25 x .062
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 07328100

Sheave, Poly V 1.0 x 3.25

$

$

Not available

10

Gravely 05946800

Bolt, Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 06309300

Washer, Locking .44 x .109 Regular
(Superseded to 06300121)

$2.99

$

In Stock, Qty 11

0

12

Gravely 06443600

Washer, Flat Steel .469 x 2.00 x .25
(Superseded to 06401111)

$6.99

$

In Stock, only 3 left!

0

13

Gravely 00458200

Clutch, Ogura

$646.99

$

Usually ships in 4-12 days

0

14

Gravely 06610300

Key .25 x .25 x 2.25

$2.99

$

In Stock, Qty 12

0

15

Gravely 01529600

Spacer .375 x .688 x .500

$

$

Not available

16

Gravely 07500006

Bumper, Rubber .62 x 1.0 x .51

$5.99

$

Usually ships in 4-12 days

0

17

Gravely 06436200

Washer, Flat Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 05948700

Bolt, Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 05947500

Bolt, Hex .31-18 x 1.25 Grade 5
(Superseded to 05901803)

$2.49

$

In Stock, Qty 12

0

20

Gravely 04638451

Bracket, Clutch Stop

$46.99

$

Usually ships in 4-12 days

0

21

Gravely 06529600

Nut, Lock .375-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 05964900

Bolt, Hex M8 x 1.25 x .75 Grade 8

$2.49

$

Usually ships in 4-12 days

0

23

Gravely 06308600

Washer, Lock .31 x .078 Reg
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0
