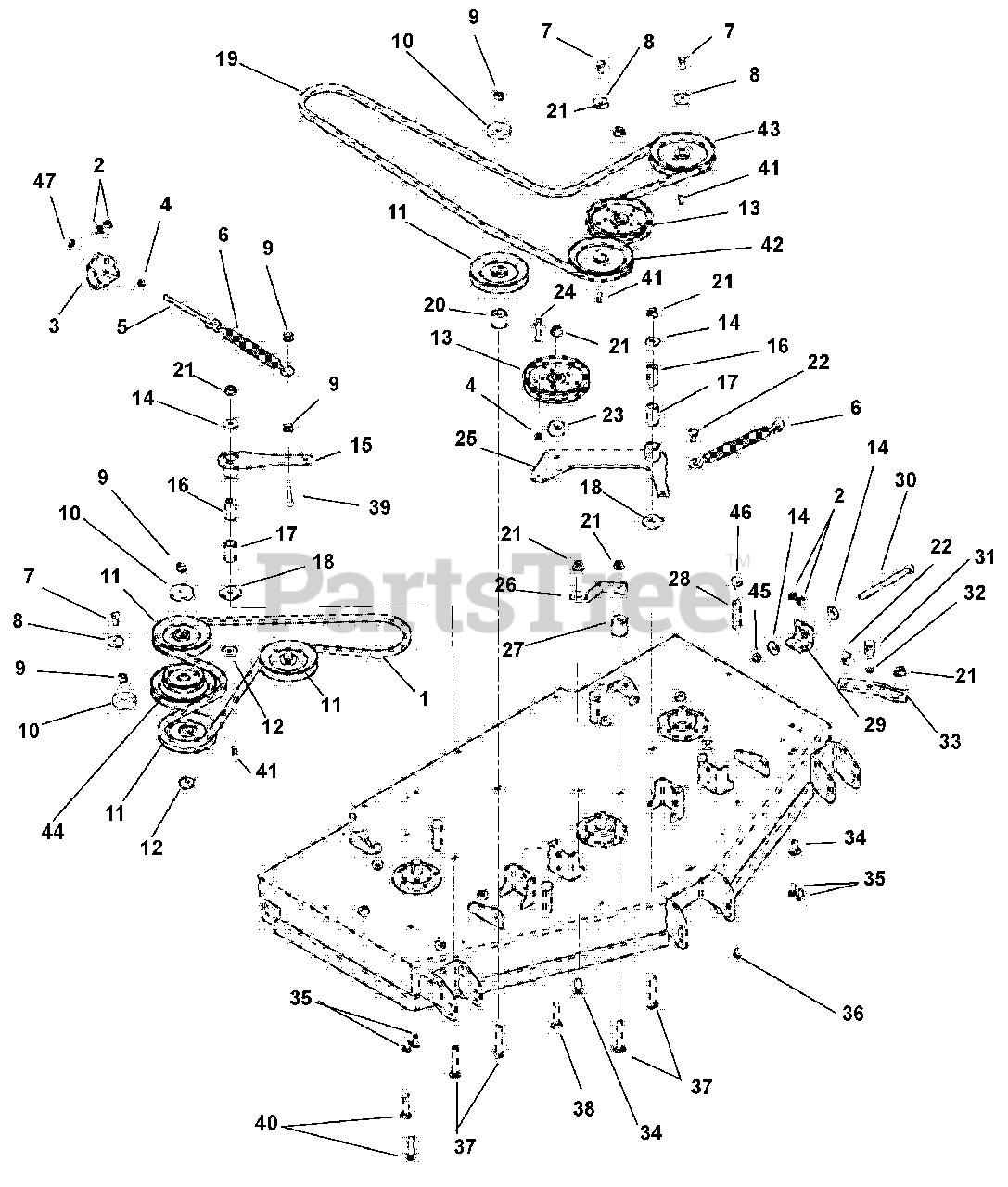

992324 (PM 260H) - Gravely Pro-Master 60" Zero-Turn Mower, 27hp Daihatsu, Rear Discharge (SN: 006000 & Above) Belts, Pulleys And Idlers Parts Diagram

Pro-Master 60" Zero-Turn Mower, 27hp Daihatsu, Rear Discharge

Belts, Pulleys And Idlers Parts Diagram

  • Title

1

Gravely 07200613

Belt, BB

$93.99

$

Usually ships in 4-12 days

0

2

Gravely 06545500

Nut, Locking Nylon Flange .38-16
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 04365153

Bracket, Spring Mount

$

$

Not available

4

Gravely 06535900

Nut, Hex Jam
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 07001604

Bolt, .38-16 x 6.00 .62 Diameter Eye

$6.99

$

Usually ships in 4-12 days

0

6

Gravely 08300505

Spring, Extension

$25.99

$

In Stock, Qty 20+

0

7

Gravely 05900013

Bolt, Hex
(Superseded to 05901721)

$1.99

$

In Stock, Qty 20+

0

8

Gravely 06400006

Washer, Flat Steel .406 x 1.50 x .245
(Superseded to 06401110)

$3.99

$

In Stock, Qty 20+

0

9

Gravely 06543600

Nut, Locking Top Flange .50-13
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 00450100

Cap, Idler Bearing Sealing

$14.99

$

In Stock, only 1 left!

0

11

Gravely 07300527

Sheave, .50" ID x 6.00" OD V-Idler

$53.99

$

In Stock, Qty 20+

0

12

Gravely 04355200

Spacer, .516 x 1.5 x .2894

$

$

Not available

13

Gravely 07316700

Pulley, Idler Flat 6.75 x .510

$63.99

$

In Stock, only 2 left!

0

14

Gravely 06442000

Washer, Flat Steel .563 x 1.38 x .109
(Superseded to 06401012)

$2.49

$

In Stock, only 1 left!

0

15

Gravely 04352151

Arm, Idler Pivot

$50.99

$

Usually ships in 4-12 days

0

16

Gravely 01581700

Bushing, Spacer .502 x .997 x 2.03

$5.99

$

In Stock, Qty 20+

0

17

Gravely 05500123

Bushing, 1.00 x 1.125 x 1.936
(Superseded to 05501234)

$10.99

$

In Stock, Qty 20+

0

18

Gravely 06400829

Washer, Flat .640 x 1.75 x .250

$3.99

$

In Stock, only 2 left!

0

19

Gravely 07200612

V-Belt, HB, Wrapped Clutching

$139.99

$

Usually ships in 4-12 days

0

20

Gravely 04297400

Spacer, .516 x 1.5 x 1.345

$

$

Not available

21

Gravely 06500010

Nut, Locking Nylock Flange .50-13
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 07000034

Bolt, Shoulder EP .38-16 x .30 Hex

$3.99

$

In Stock, only 1 left!

0

23

Gravely 04352600

Spacer, .516 x 1.5 x .97

$

$

Not available

24

Gravely 05962900

Bolt, Hex .38-16 x 2.25
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

25

Gravely 04348151

Arm, Idler Pivot

$

$

Not available

26

Gravely 04385453

Bracket, Idler Mount

$40.99

$

Usually ships in 4-12 days

0

27

Gravely 04358000

Spacer, .516 x 1.50 x 1.517

$

$

Not available

28

Gravely 07000027

Nut, Coupling .31-18 x 3.00

$22.99

$

In Stock, only 3 left!

0

29

Gravely 04367453

Bracket, Spring Mount, Left Hand

$

$

Not available

30

Gravely 05901505

Bolt, .5-13 x 7.00

$

$

Not available

31

Gravely 04367200

Trunnion, Spring Adjust .50-13

$102.99

$

Usually ships in 4-12 days

0

32

Gravely 05717100

Snap Ring, Retaining External .500 x .050

$2.49

$

In Stock, Qty 8

0

33

Gravely 04367553

Arm, Spring Tensioner

$

$

Not available

34

Gravely 06224700

Bolt, Round Head Square Neck .50-13 x 1.25
(Superseded to 06200325)

$5.99

$

Usually ships in 4-12 days

0

35

Gravely 06223600

Bolt, Round Head Square Neck .38-16 x 1.00
(Superseded to 06200313)

$2.49

$

In Stock, Qty 10

0

36

Gravely 06200002

Bolt, Round Head Square Neck .31-18 x .75 Loctite
(Superseded to 06200425)

$3.99

$

In Stock, only 3 left!

0

37

Gravely 06225000

Bolt, Round Head Square Neck .50-13 x 3.50
(Superseded to 06200317)

$5.99

$

In Stock, Qty 20+

0

38

Gravely 06225700

Bolt, Round Head Square Neck .50-13 x 2.75
(Superseded to 06200327)

$9.49

$

Usually ships in 4-12 days

0

39

Gravely 05966600

Bolt, Hex .50-13 x 2.50
(Superseded to 05901712)

$3.99

$

In Stock, only 3 left!

0

40

Gravely 06225500

Bolt, Round Head Square Neck .50-13 x 2.50

$5.99

$

Usually ships in 4-12 days

0

41

Gravely 06611200

Key, Square .25 x .25 x 1.00

$2.99

$

In Stock, Qty 16

0

42

Gravely 07328867

Pulley, Double 1.0 x 6.75 O.D.
(Superseded to 59211500)

$91.99

$

In Stock, Qty 20+

0

43

Gravely 07328967

Pulley, "V" 1.0 x 6.75 O.D.
(Superseded to 59211600)

$82.99

$

In Stock, Qty 8

0

44

Gravely 07329167

Pulley, Double 1.0 x 6.75 x 4.25

$84.99

$

In Stock, Qty 7

0

45

Gravely 06529300

Nut, Jam .50-13
(Superseded to 06500911)

$1.49

$

In Stock, Qty 20+

0

46

Gravely 07533600

Bumper, Rubber

$11.99

$

In Stock, only 1 left!

0

47

Gravely 06537200

Nut, Locking Center Jam .375-16
(Superseded to 06500914)

$0.99

$

In Stock, Qty 20+

0
