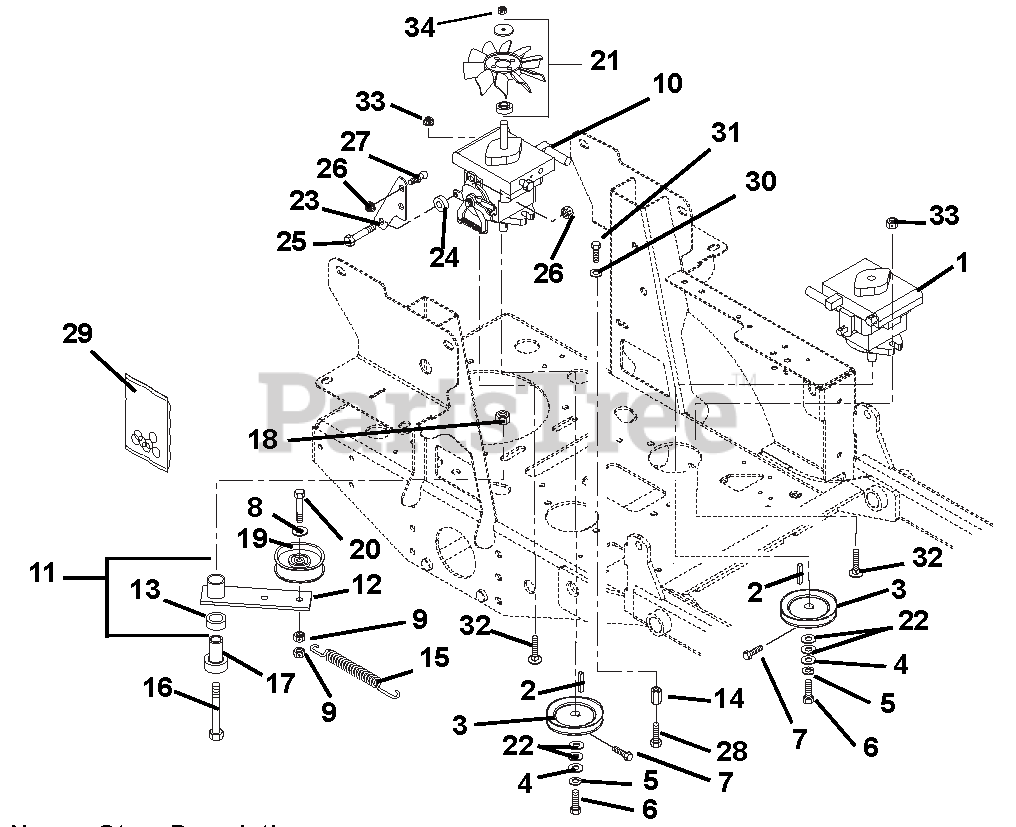

992323 (PM 34 Z) - Ariens Pro-Master 34" Zero-Turn Mower, 17hp Kawasaki (SN: 007000 & Above) Transmission Parts Diagram

Pro-Master 34" Zero-Turn Mower, 17hp Kawasaki

Transmission Parts Diagram

  • Title

1

Ariens 09297600

PUMP, HYD BDP-10A (LH)

Note: (page 11)

$963.99

$

Usually ships in 4-12 days

0

2

Ariens 06607500

KEY-STR 5MMX25MMX5MM

$3.99

$

In Stock, only 2 left!

0

3

Ariens 07318900

SHEAVE, PUMP .592 X 4.345

$51.99

$

In Stock, only 2 left!

0

4

Ariens 06426600

WSHR-FL-STL .281X1.000X.063
(Superseded to 06401020)

$0.99

$

In Stock, Qty 20+

0

5

Ariens 06308400

@WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

6

Ariens 05969800

BLT-HEX M6 X 1.0X12 YWZC

$1.99

$

In Stock, Qty 14

0

7

Ariens 05900008

BLT-HEX .25-20X.50 GR5 EPOXY
(Superseded to 05901918)

$1.49

$

In Stock, only 1 left!

0

8

Ariens 06444300

WSHR-FL-STL .390X.75X.125 YWZC

$7.99

$

In Stock, Qty 8

0

9

Ariens 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

10

Ariens 09285200

PUMP, BDP-10A-441 (THRU SHAFT)

Note: (page 12)

$1047.99

$

Usually ships in 4-12 days

0

11

Ariens 09219000

ASSEMBLY,IDLER ARM GRD.DRIVE

Note: (Includes 12 & 13)

$100.99

$

In Stock, only 1 left!

0

12

Ariens 09217051

WMT, IDLER ARM GROUND DRIVE
(Superseded to 09217000)

$111.99

$

Usually ships in 4-12 days

0

13

Ariens 05500123

BSHG, 1.00 X 1.125 X 1.937
(Superseded to 05501234)

$10.99

$

In Stock, Qty 20+

0

14

Ariens 06533500

NUT COUPLING .375-16X1.75

$3.99

$

In Stock, Qty 6

0

15

Ariens 08336000

SPRING, EXTENSION
(Superseded to 08300728)

$26.99

$

In Stock, Qty 20+

0

16

Ariens 05965800

@BLT-HEX .50-13X3.50 GR5 YWZC
(Superseded to 05901937)

$4.99

$

In Stock, only 1 left!

0

17

Ariens 07053100

BEARING, PEDESTAL
(Superseded to 07000031)

$80.99

$

In Stock, only 1 left!

0

18

Ariens 06500010

@NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

19

Ariens 07327500

IDLER, FLAT 4.00X1.06

$45.99

$

Usually ships in 4-12 days

0

20

Ariens 05962900

@BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

21

Ariens 03368800

FAN, COOLING (W/ HUB & WASHER)

Note: (Includes Hub and Washer)

$32.99

$

Usually ships in 4-12 days

0

22

Ariens 06442800

@WSHR-FL-STL.656X1.31X.095 YWZ
(Superseded to 06401118)

$2.49

$

In Stock, only 3 left!

0

23

Ariens 09282900

BRACKET, RTN/DAMPER

$7.99

$

Usually ships in 4-12 days

0

24

Ariens 02513500

SPACER .344X1.000X.375

$

$

Not available

25

Ariens 05947500

@BLT-HEX .31-18X1.25 GR5 YWZC
(Superseded to 05901803)

$2.49

$

In Stock, Qty 12

0

26

Ariens 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

27

Ariens 03652200

STUD- BALL

$3.49

$

In Stock, only 3 left!

0

28

Ariens 05957900

@BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$1.49

$

In Stock, Qty 14

0

29

Ariens 59203600

KIT, PUMP SEAL

Note: (BDP-10A)(One kit required for each pump)

$77.99

$

Usually ships in 4-12 days

0

30

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

31

Ariens 05959400

@BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

32

Ariens 06224500

@BLT-RDHDSQNK .44-14X1.50 G5YZ

$3.99

$

Usually ships in 4-12 days

0

33

Ariens 06500009

NUT-LK-NYL-FLG .44-14 YWZC
(Superseded to 06500811)

$5.99

$

In Stock, only 1 left!

0

34

Ariens 06537000

NUT-CTRLK .31-24 YWZC

$

$

Not available
